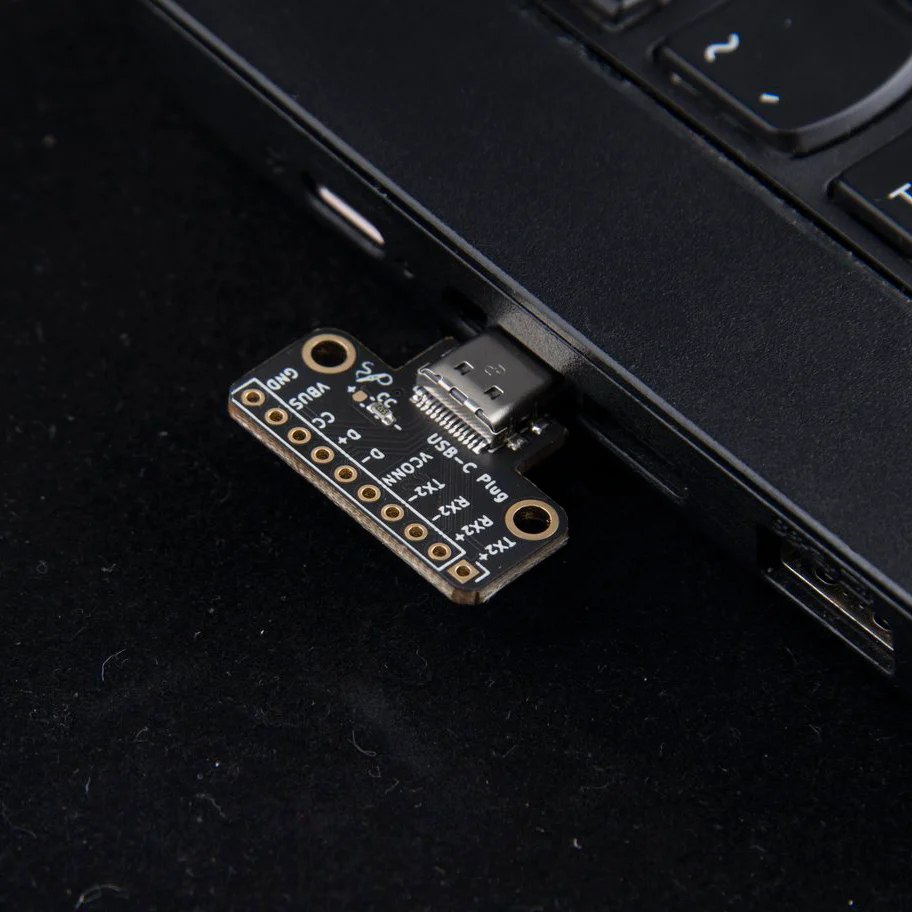

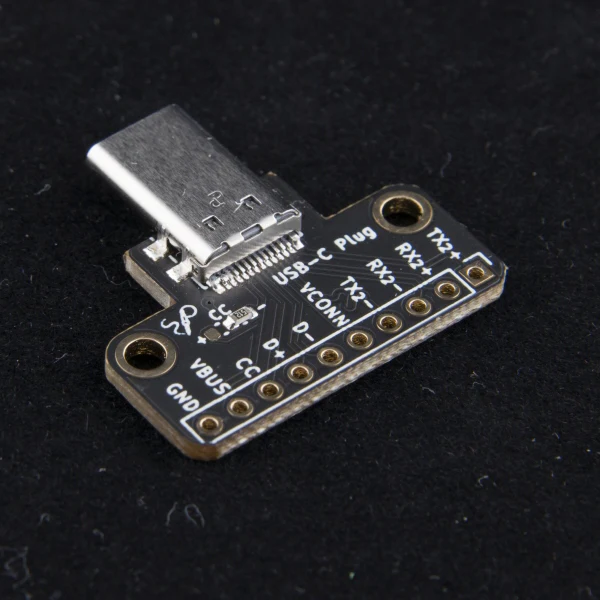

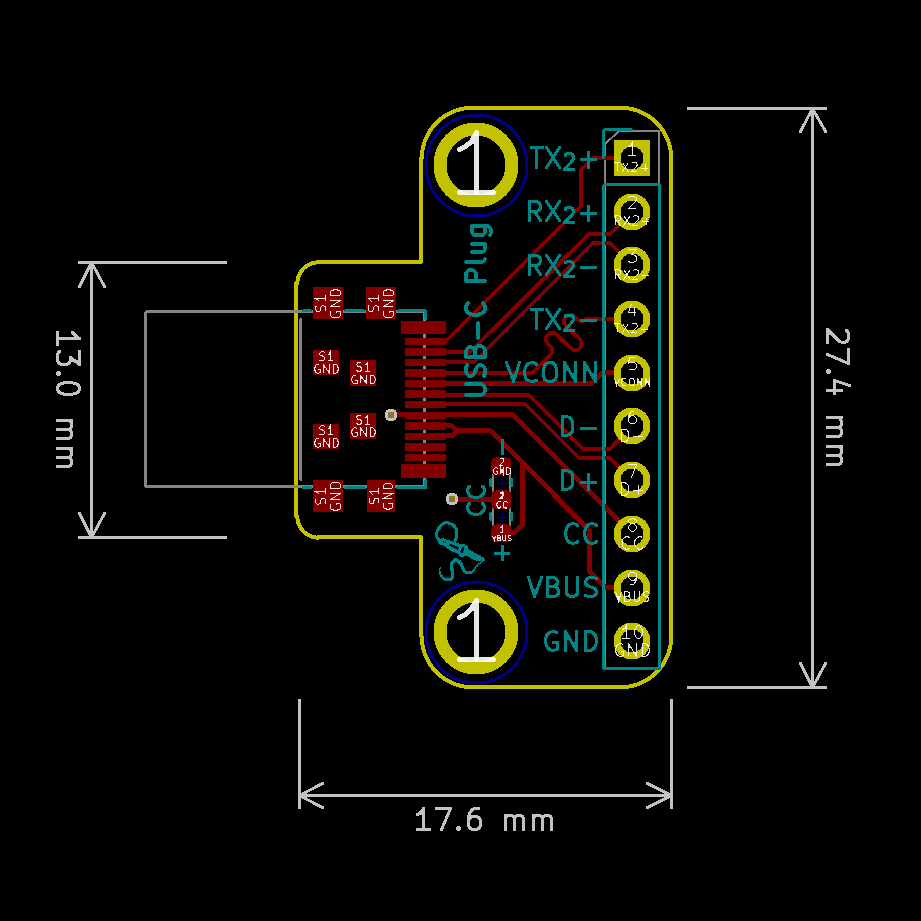

This plug and breakout board provides an easy way to extract signals and power when plugged into a USB Type-C Receptacle.

By default, the CC pin is connected via a 5.1K resistor to GND (-), meaning the plug identifies as a downstream port, and the upstream port will provide up to 1.5A at 5V. You can replace or move the resistor to pull the CC pin to VBUS (+) or change the pull value.

The 3.0 variant of the breakout board contains only two SuperSpeed differential pairs (RX2+/- and TX2+/-), meaning only single-lane mode is available.

As per the USB Type-C specification, the plug has only one pair of D+/D- pins; it’s up to the Receptacle it's plugged into to connect them together or use a mux for more advanced scenarios. Similar with CC and VCONN pins. The SBU pins are not available.

For more details about USB Type-C, check out this application note or the USB Type-C Specification.

Downloads

Datasheets

• C-UTC009-0C USB Type-C SMT Plug

CAD Files

• KiCad footprint
• 3D .step model

Hardware Files

• You can find KiCad hardware source files for the boards on Github.

Schematics

Licence Information

The USB Type-C Plug Breakout hardware designs are licensed under the CERN Open Hardware Licence.

This documentation is licensed under the Creative Commons Attribution-ShareAlike License.
