SparkFun microB USB Breakout

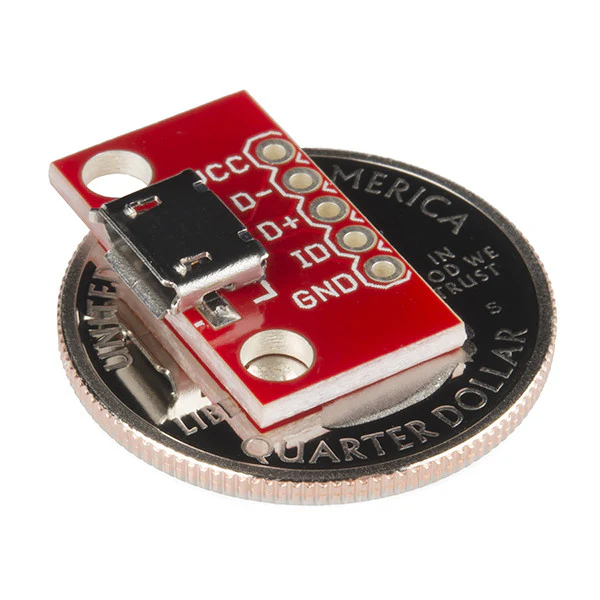

This simple board breaks out a micro-B USB connector’s VCC, GND, ID, D- and D+ pins to a 0.1" pitch header. If you want to add the popular micro-B USB to your project, but don’t want to put up with soldering the tiny connector, this is the board for you.
Dimensions: 0.8 x 0.45" (20.3 x 11.4mm)
Documents:
- Schematic
- Eagle Files
- GitHub
$3.40
SparkFun microB USB Breakout—
$3.40
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This simple board breaks out a micro-B USB connector’s VCC, GND, ID, D- and D+ pins to a 0.1" pitch header. If you want to add the popular micro-B USB to your project, but don’t want to put up with soldering the tiny connector, this is the board for you.
Dimensions: 0.8 x 0.45" (20.3 x 11.4mm)
Documents:
- Schematic
- Eagle Files
- GitHub
