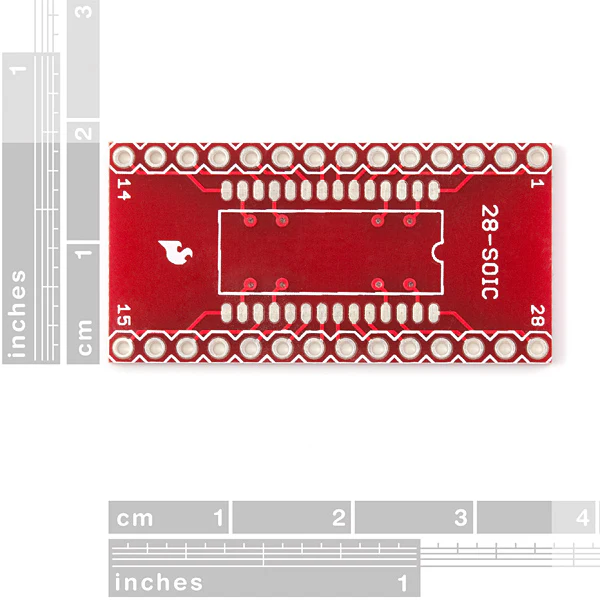

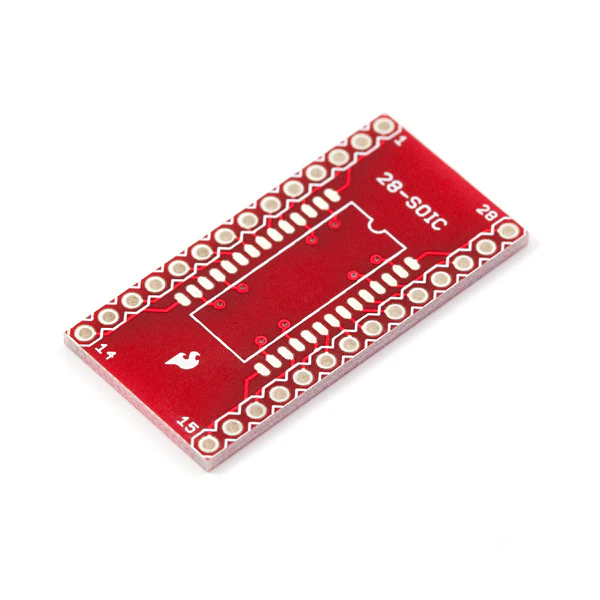

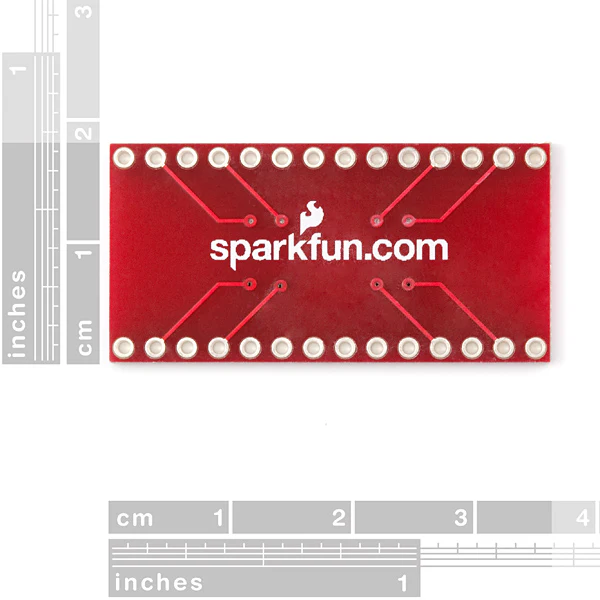

SparkFun SOIC to DIP Adapter - 28-Pin
Low-cost basic SOIC break out boards. These are custom PCB boards that interface standard SOIC devices to standard .1" headers.
Pad layout fits all standard SOIC devices. 28-SOIC Standard .6" spacing between pins. Will fit directly into a standard width (600 mil) DIP socket. For wide ICs (memories, drivers, 74s, etc). 40 Pin break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets.
Features
- 0.7x1.50"
Documents
- Schematic
- Eagle Files
- GitHub (Design Files)
Original: $4.76
-65%$4.76
$1.67Product Information
