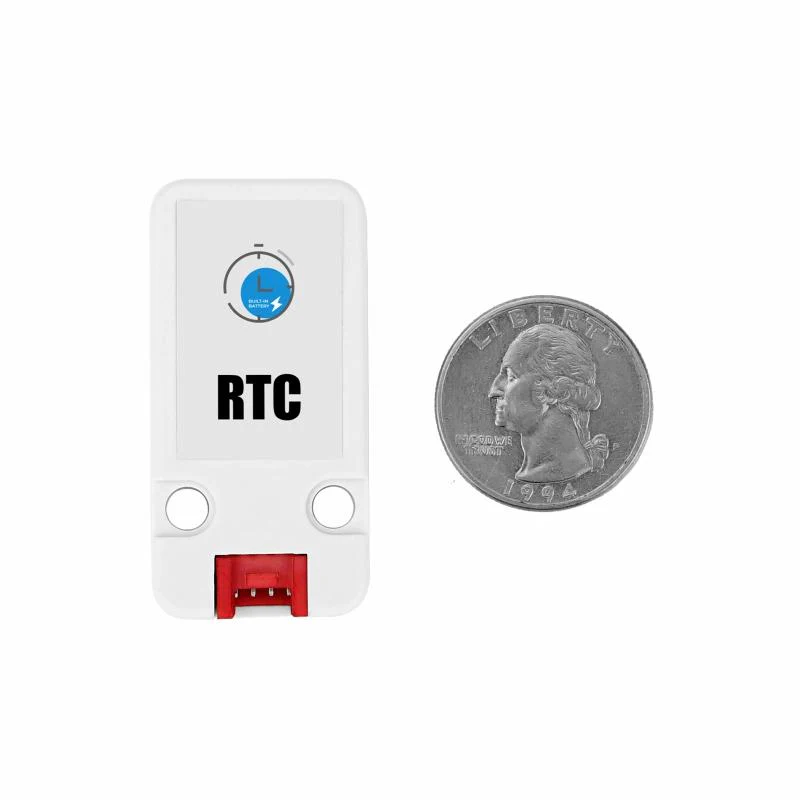

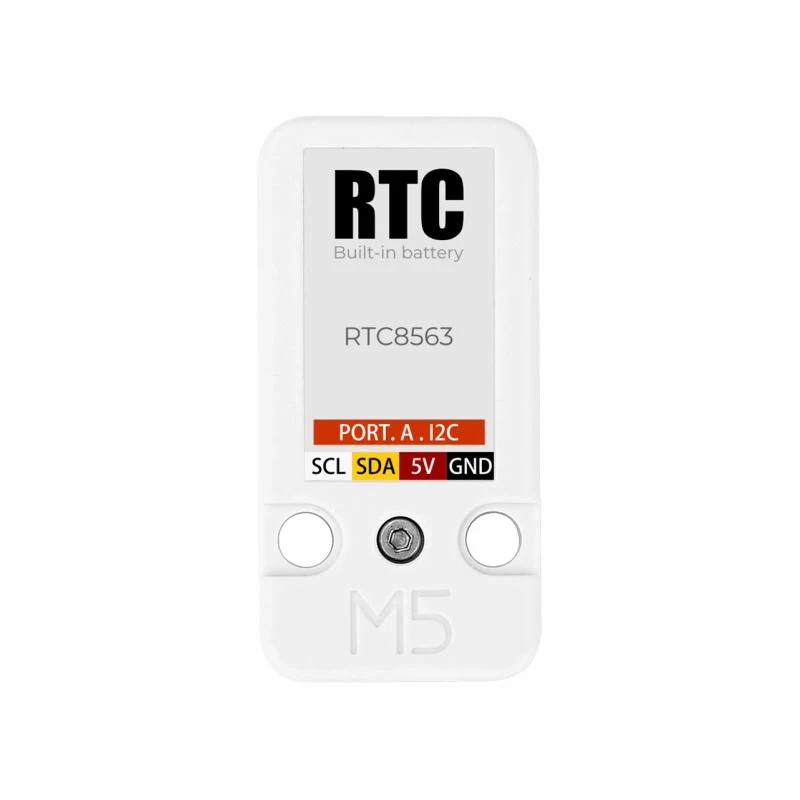

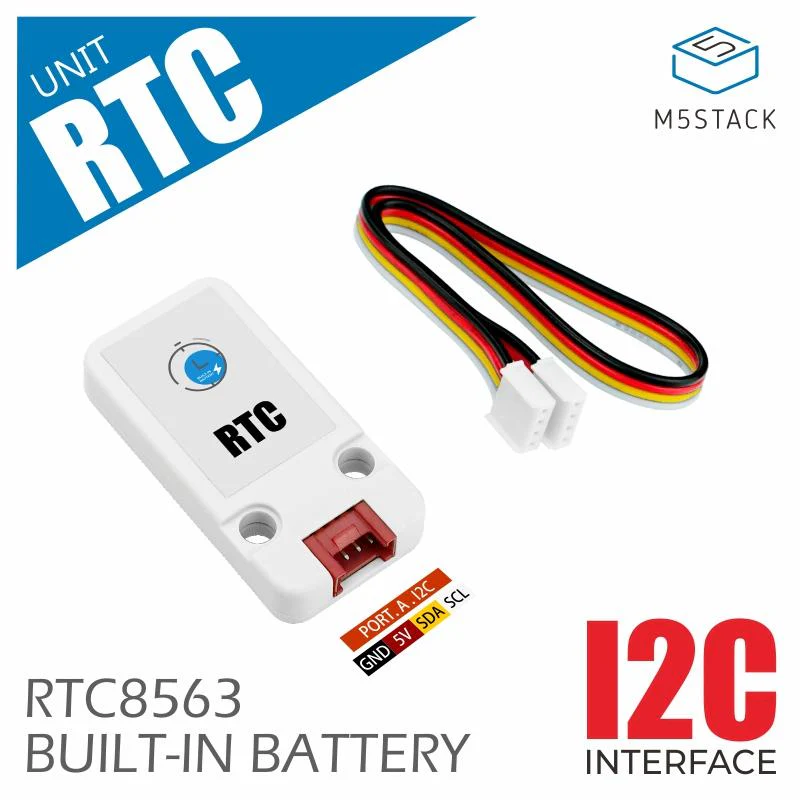

Real Time Clock (RTC) Unit (HYM8563)
UNIT RTC is a programmable real-time clock module
The integrated HYM8563 low-power CMOS real-time clock/calendar chip, using I2C communication interface, full-coverage case can effectively protect the circuit, making its operation more stable. Applicable to a variety of embedded devices, instruments and instruments as a system clock.
Role of RTC
Most MCUs are built-in timers, which usually start working automatically when the hardware is powered on, and reset when the hardware is powered off. The built-in timer can handle some simple timing tasks, but if we want to implement data timestamp recording, clock, alarm clock and other time-span functions, a system power-independent clock RTC is the best choice.
Features
- Support second/minute/hour/day/month/year. time data reading and writing
- 32.768kHz high-precision clock crystal, greatly reducing the time error
- Low power consumption, coin battery can work continuously for years
- With century mark
- I2C communication interface

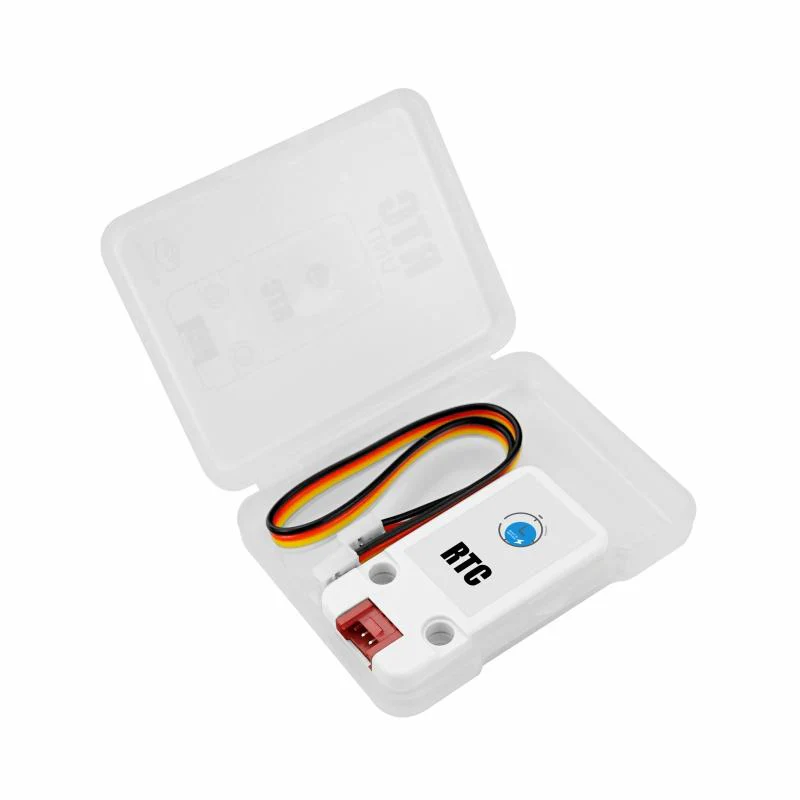

Includes
- 1x Unit RTC
- 1x Coin cell battery (38mAh)
- 1x HY2.0-4P cable
Specifications
| Specifications | Parameters |
|---|---|
| Clock chip | HYM8563 |
| Crystal Frequency | 32.768kHz |
| Communication interface | I2C, addr: 0x51, bus max speed 400Kbps |
| Power supply voltage | 5V DC |
| Net weight | 4.1g |
| Gross Weight | 8.3g |
| Product Dimensions | 48 x 24 x 8mm |
| Package Size | 67 x 53 x 12mm |
