Qwiic Interface Board

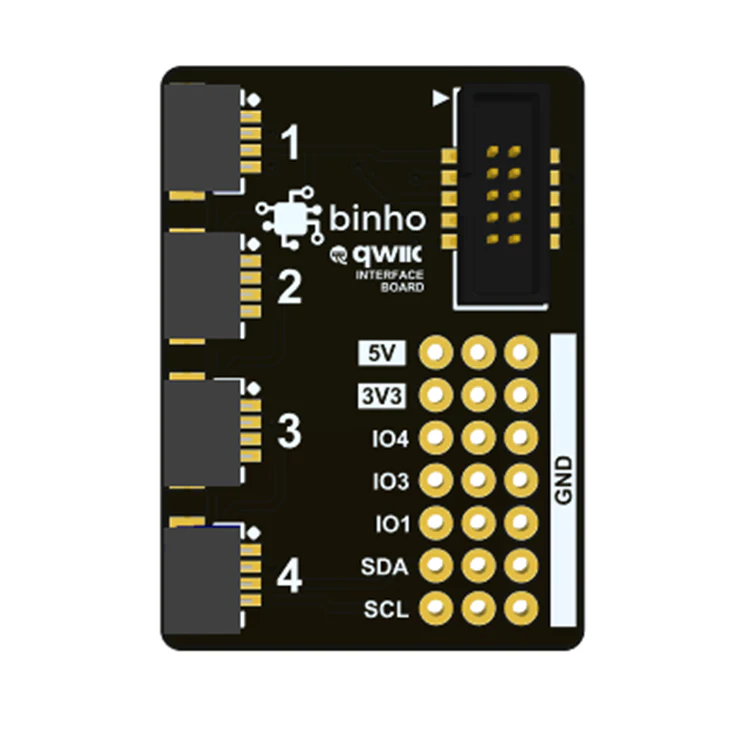

This board makes it easy for you to interface your Binho Nova host adapter with up to 4 strings of Qwiic devices.
It also breaks out all of the pins to a series of headers for convenient jumping to other circuits or perhaps your Logic Analyzer to monitor everything while you develop and debug. This board is 25mm x 35mm and comes with the connectors pre-soldered. The headers are included but not installed.
Technical Resources:
- PCB Drawing (.PDF)
- 3D Model (.STP)< - View Online
