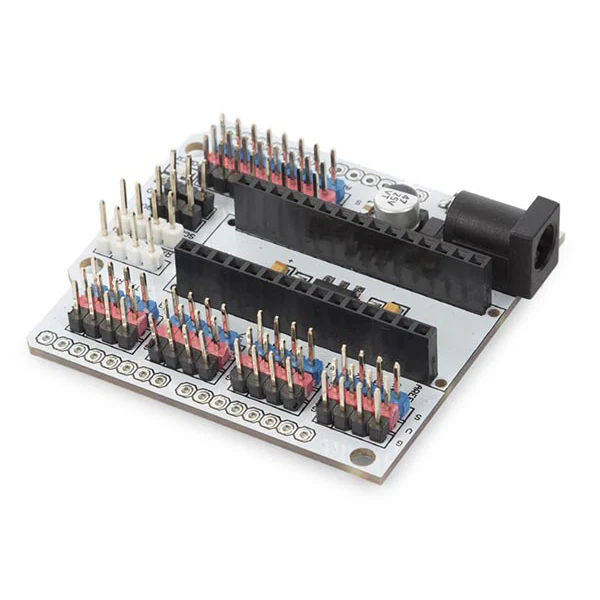

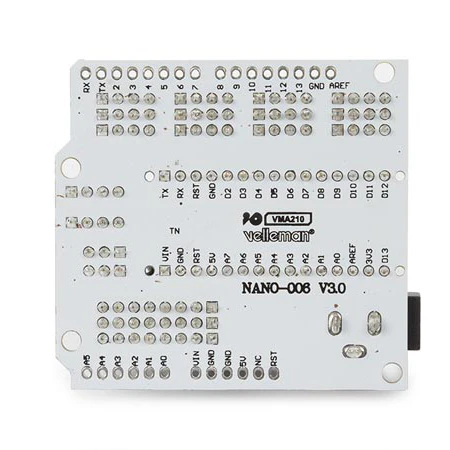

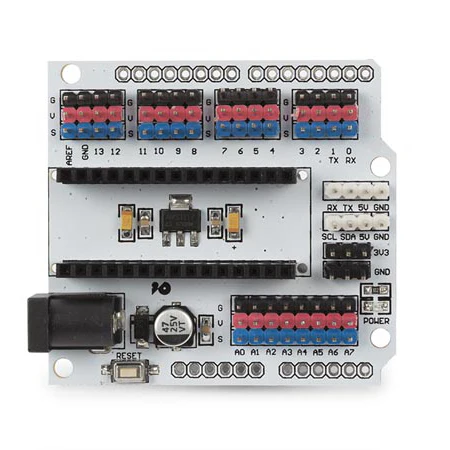

Multifunction Expansion Board for Arduino® Nano/Uno
This expansion board is designed to allow easy access of the interface pins of an Arduino Nano.
Each DIO pin or analogue pin of the Nano is brought out to a convenient header.
Features
- multi-functional for various applications
- compact size
- reliable quality for long time use
- on-board voltage regulator 3.3 V / 1 A
- Specifications
- max. input voltage: 12 VDC
- max. current : 1 A
- DC connector: 5.5 / 2.1 mm
- dimensions: 58 x 53 x 15 mm
- weight: 20 g
Manual
Info Sheets
$3.92
Original: $11.21
-65%Multifunction Expansion Board for Arduino® Nano/Uno—
$11.21
$3.92Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This expansion board is designed to allow easy access of the interface pins of an Arduino Nano.
Each DIO pin or analogue pin of the Nano is brought out to a convenient header.
Features
- multi-functional for various applications
- compact size
- reliable quality for long time use
- on-board voltage regulator 3.3 V / 1 A
- Specifications
- max. input voltage: 12 VDC
- max. current : 1 A
- DC connector: 5.5 / 2.1 mm
- dimensions: 58 x 53 x 15 mm
- weight: 20 g
