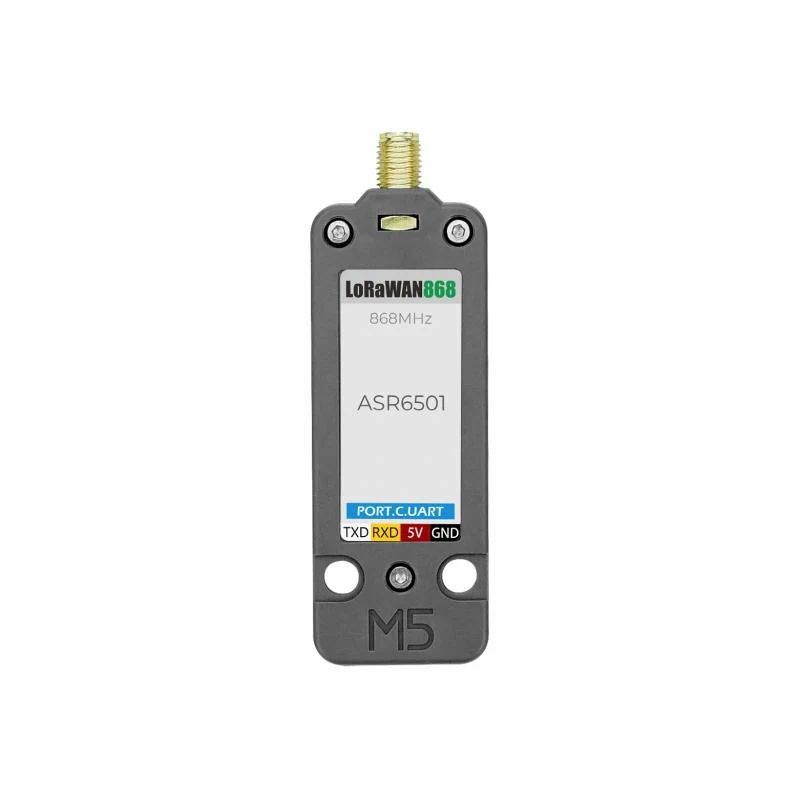

Unit LoRaWAN868 is a LoRaWAN communication module suitable for 868MHz frequency launched by M5Stack.

The module adopts the ASR6501 scheme, which supports long-distance communication and has both ultra-low power consumption and high sensitivity. The module integrates the LoRaWAN protocol stack and adopts a serial communication interface (using the AT command set for control). When used, it can be used as a collection node to access a large number of gateways for data collection and management.

This module is suitable for long-distance low-power IoT communication applications, such as deployment of environmental monitoring nodes.

Features

• ASR6501
• Operating frequency: 868MHz
• SMA antenna
• Communication interface: UART
• Command protocol: AT command

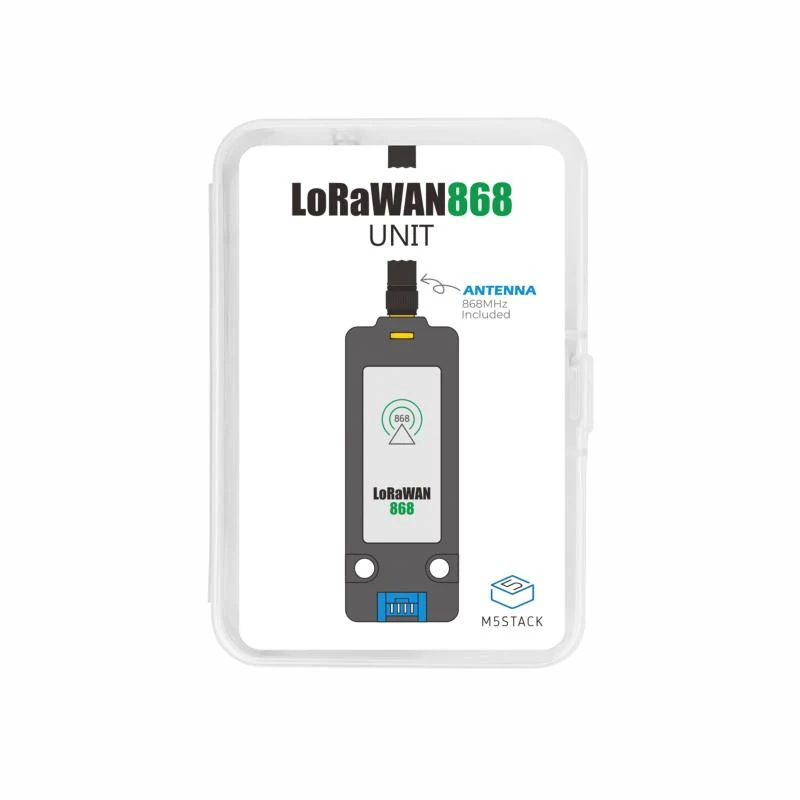

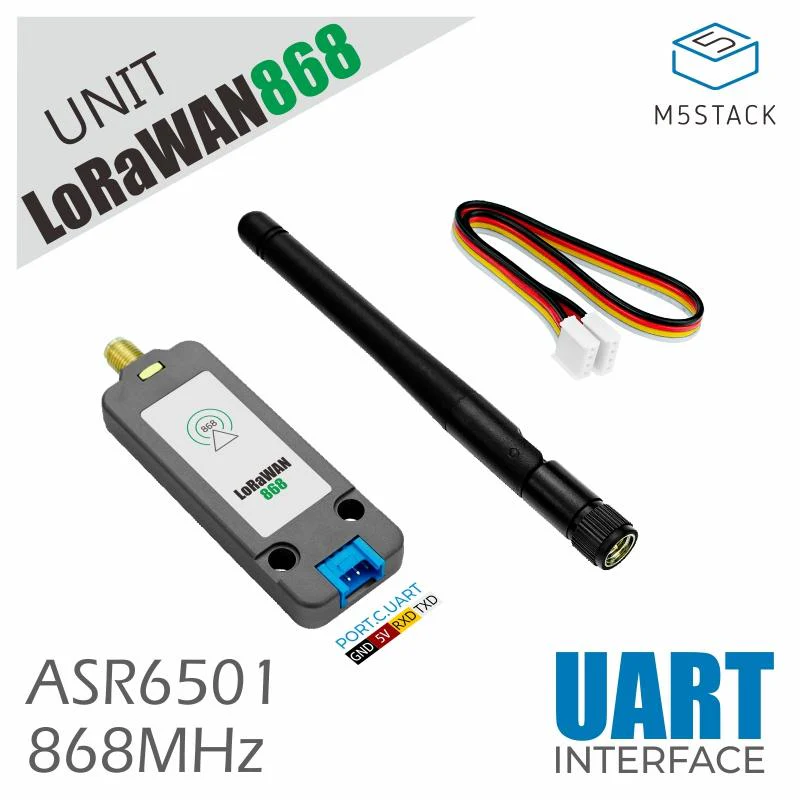

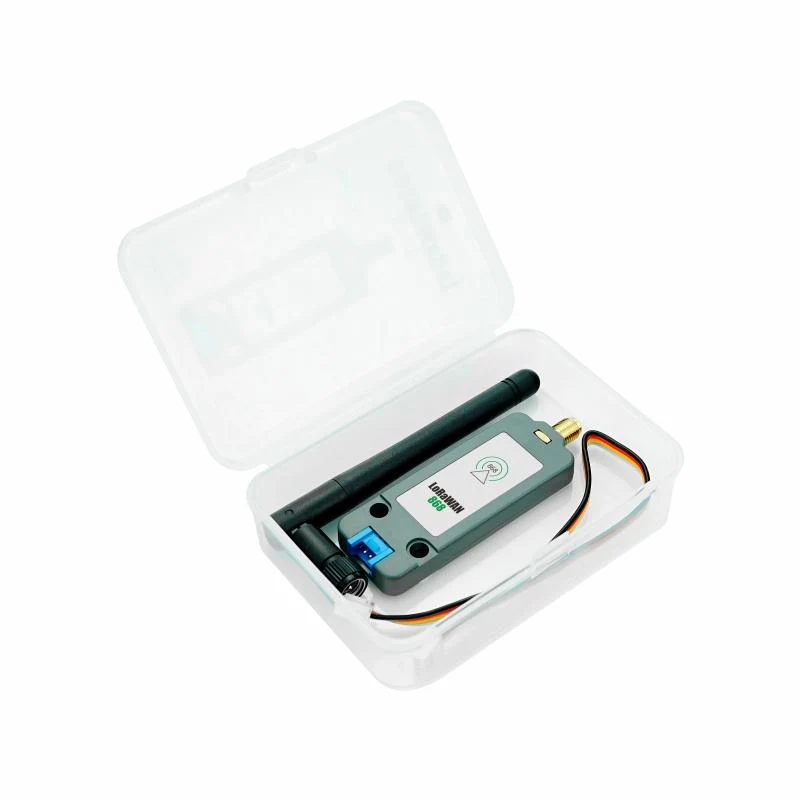

Includes

• 1x Unit LoRaWAN868
• 1x SMA antenna

EU868 supported countries

Albania	Andorra	Armenia	Austria	Bahrain
Bangladesh	Belarus	Belgium	Myanmar	Bosnia and Herzegovina
Brunei	Darussalam	Bulgaria	Cambodia	Croatia
Cyprus	Denmark	Egypt	Estonia	Finland
France	Germany	Guatemala	Hungary	Iceland
Iran	Ireland	Italy	Laos	Latvia
Lebanon	Liechtenstein	Lithuania	Luxembourg	Macedonia, the former Federal Republic of Yugoslavia
Malta	Moldova	Montenegro	Morocco	Netherlands
New Zealand	Nigeria	Norway	Oman	Pakistan
Poland	Portugal	Qatar	Romania	Saudi Arabia
Serbia	Singapore	Slovenia	South Africa	Spain
Sweden	Switzerland	Tunisia	Turkey	Ukraine
UAE	UK	Vietnam

Specification

Specifications	Parameters
UART baud rate	115200
Net weight	12.8g
Gross weight	45g

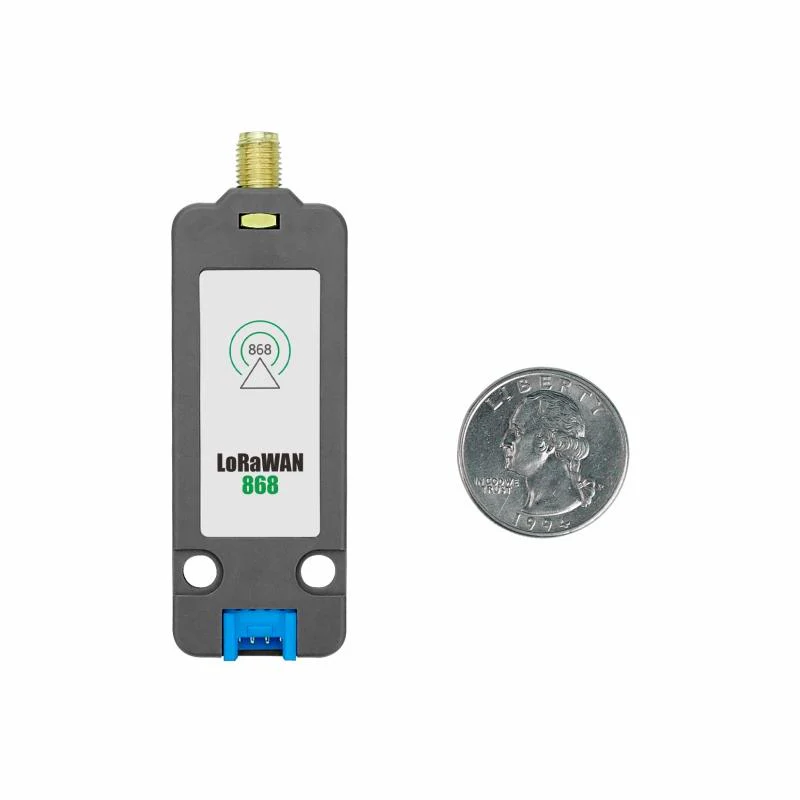

Product size	54.2 x 54.2 x 13.2mm
Package size	165 x 60 x 36mm
