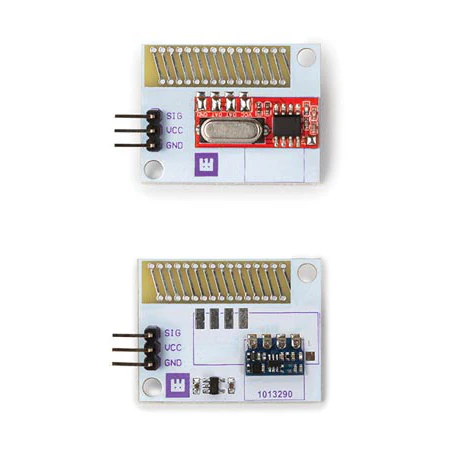

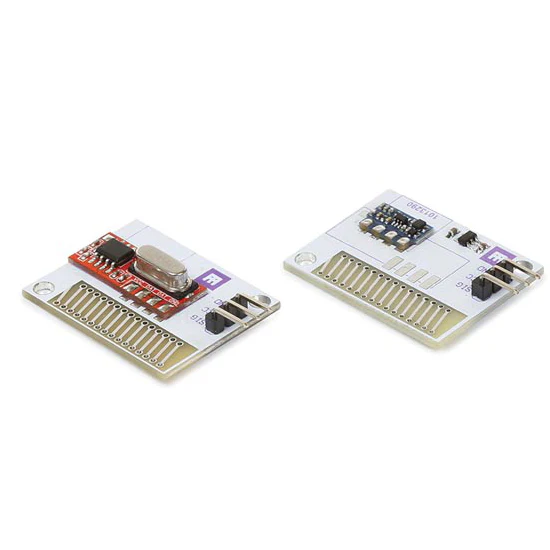

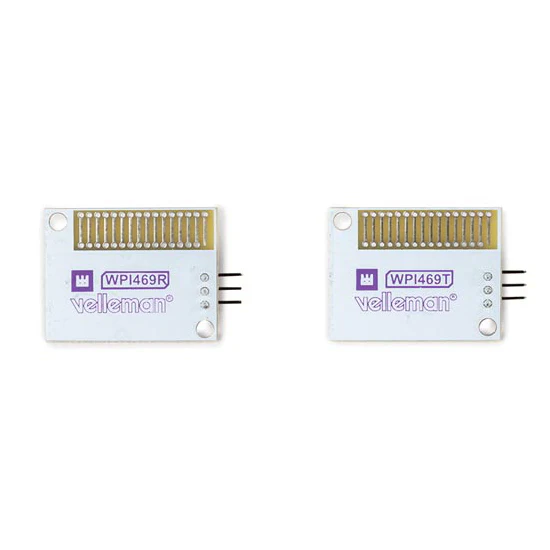

Long range 433MHz RF wireless module set
This tiny set includes a transmitter and a receiver module that can communicate over a long range. Check out all specs below!
Features
- onboard dedicated PCB antenna
Specifications
- transmitter module:
- working voltage: 3.3V - 5 V DC
- working current: 18 mA @ 3 V
- transmit power: <10dBm
- working frequency : 433.92 MHz
- receiver module:
- operating voltage: 3.3V - 5 V DC
- working frequency: 433.92 MHz
- sensitivity: -110 db
- line-of-sight range: 30 meter
- transfer rate: 4.8 kbps (max.)
- mode: ASK/OOK
Documentation
- GitHub
- Manual
$3.92
Original: $11.21
-65%Long range 433MHz RF wireless module set—
$11.21
$3.92Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This tiny set includes a transmitter and a receiver module that can communicate over a long range. Check out all specs below!
Features
- onboard dedicated PCB antenna
Specifications
- transmitter module:
- working voltage: 3.3V - 5 V DC
- working current: 18 mA @ 3 V
- transmit power: <10dBm
- working frequency : 433.92 MHz
- receiver module:
- operating voltage: 3.3V - 5 V DC
- working frequency: 433.92 MHz
- sensitivity: -110 db
- line-of-sight range: 30 meter
- transfer rate: 4.8 kbps (max.)
- mode: ASK/OOK
Documentation
- GitHub
- Manual
