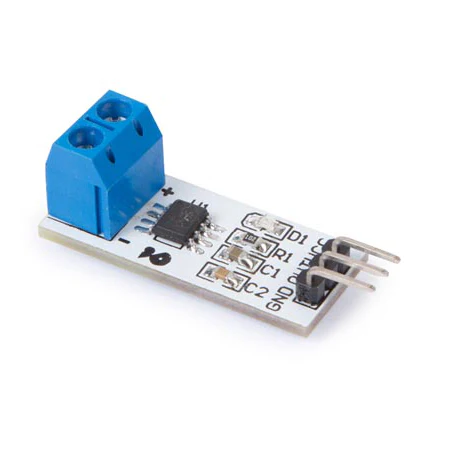

This current sensor module guarantees precise measuring for commercial systems. Especially designed for easy installation. Can be used for motor control, load detection, overcurrent.

Features

• measurement range of -20 to +20 A
• scale factor of 100 mV per A
• easy installation
• Specifications
• supply voltage: 5 VDC
• output voltage: VCC/2 at no load
• dimensions: 31 x 13 x 12 mm

Manual

• User manual

Info Sheets

• VMA323 Scheme
• ACS712 Data Sheet

Firmware

• Code
