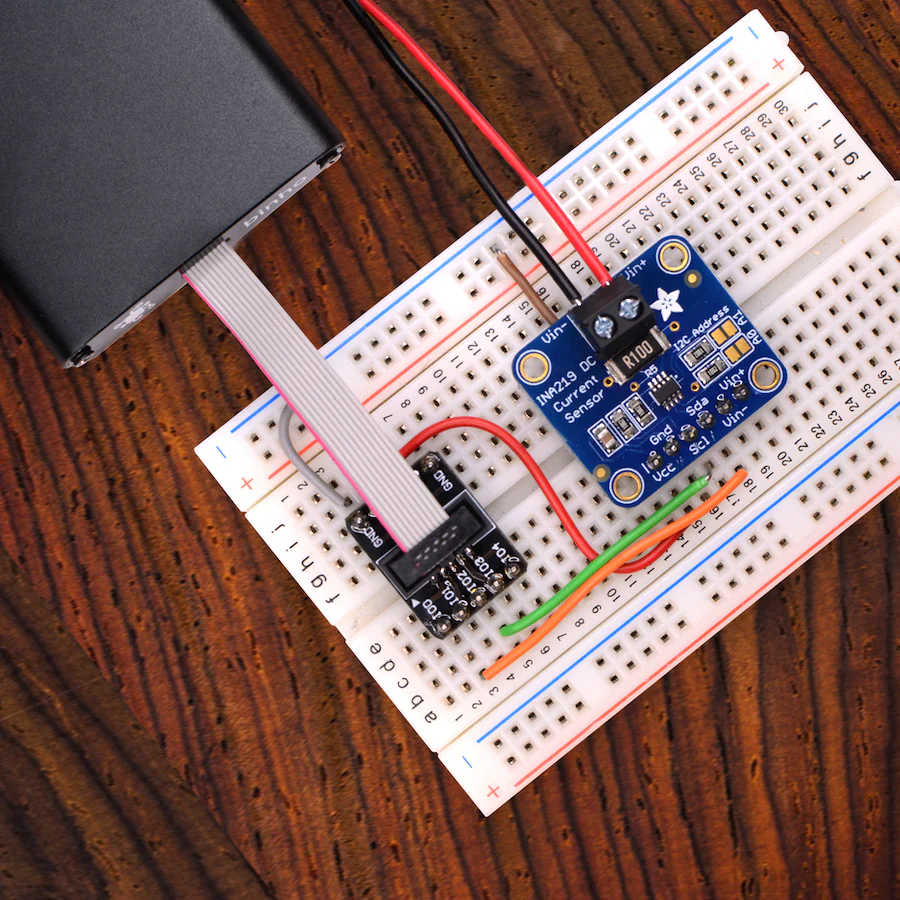

This board breaks a male 2x5 1.27mm connector out to breadboard-friendly 2.54mm / 0.1in pitch headers. It's an easy way to interface your Binho Nova host adapter with other circuits using standard jumper wires as well.

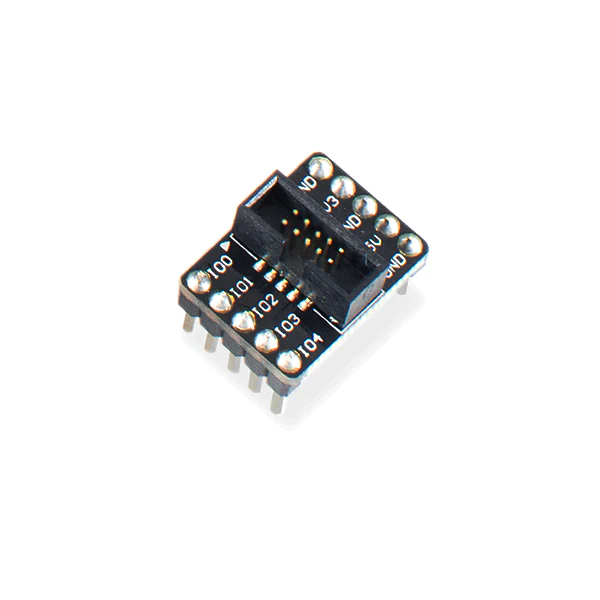

The board measures 14mm x 18mm x 7mm and is black with white silkscreen labels for each of the pins.

Update: as of August 2020 this breakout comes fully assembled with headers pre-soldered

Note that each Binho Nova includes one of these adapters.

Technical Resources:

• PCB Drawing (.PDF)
• 3D Model (.STP) - View Online
