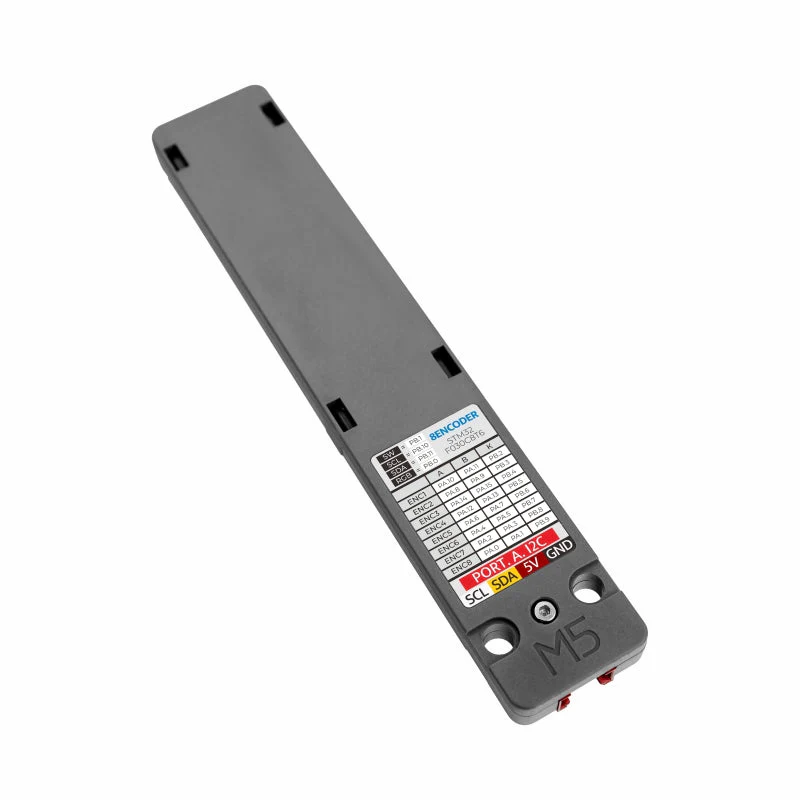

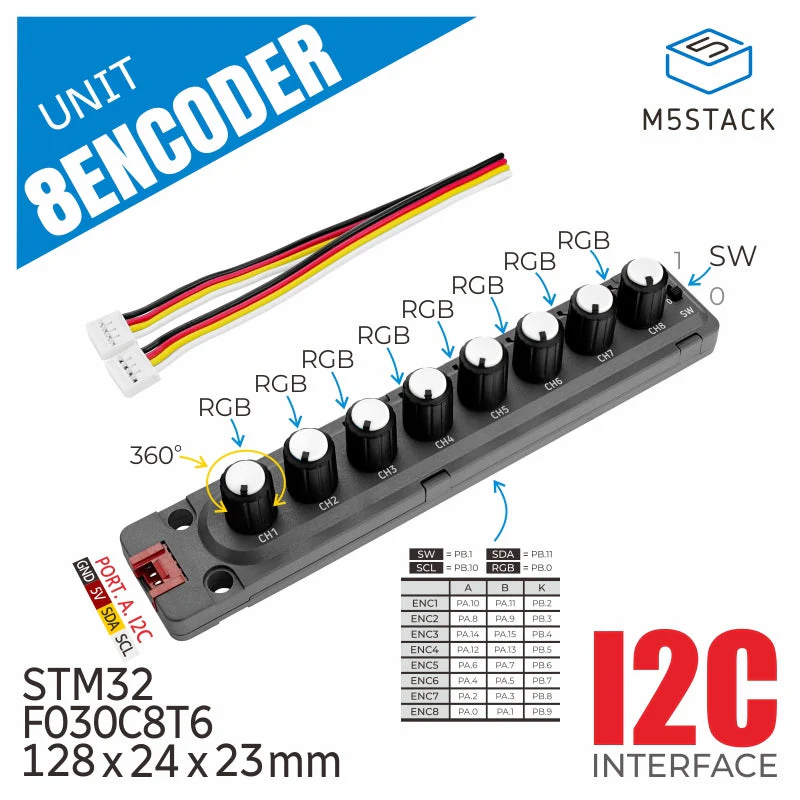

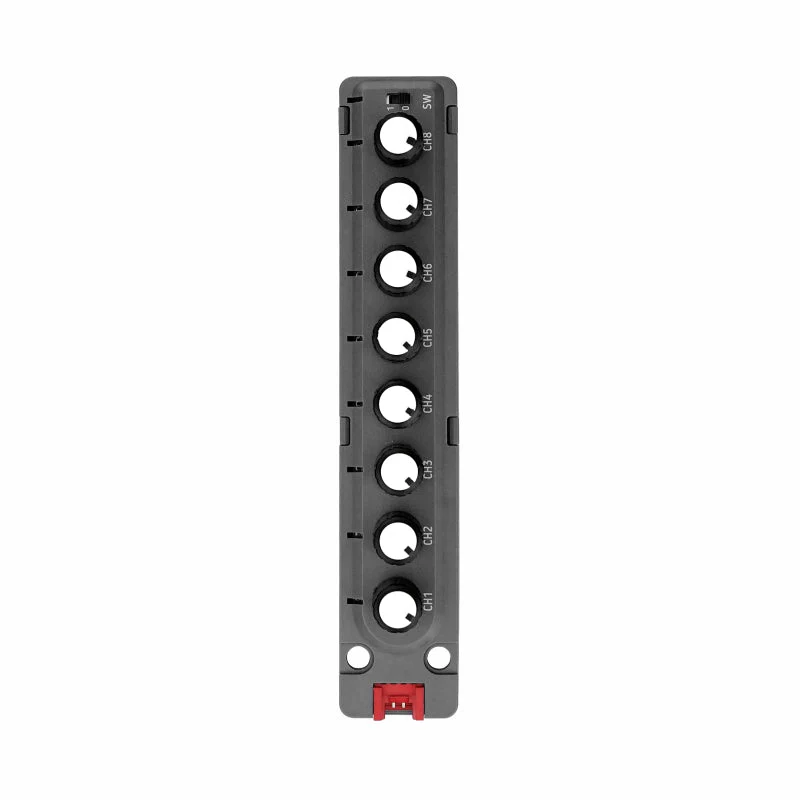

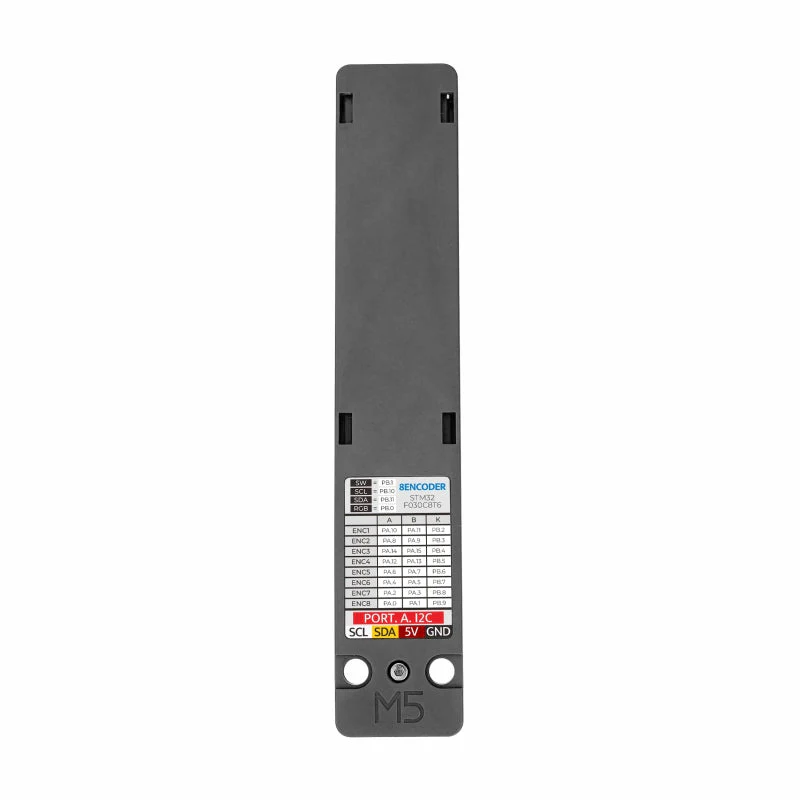

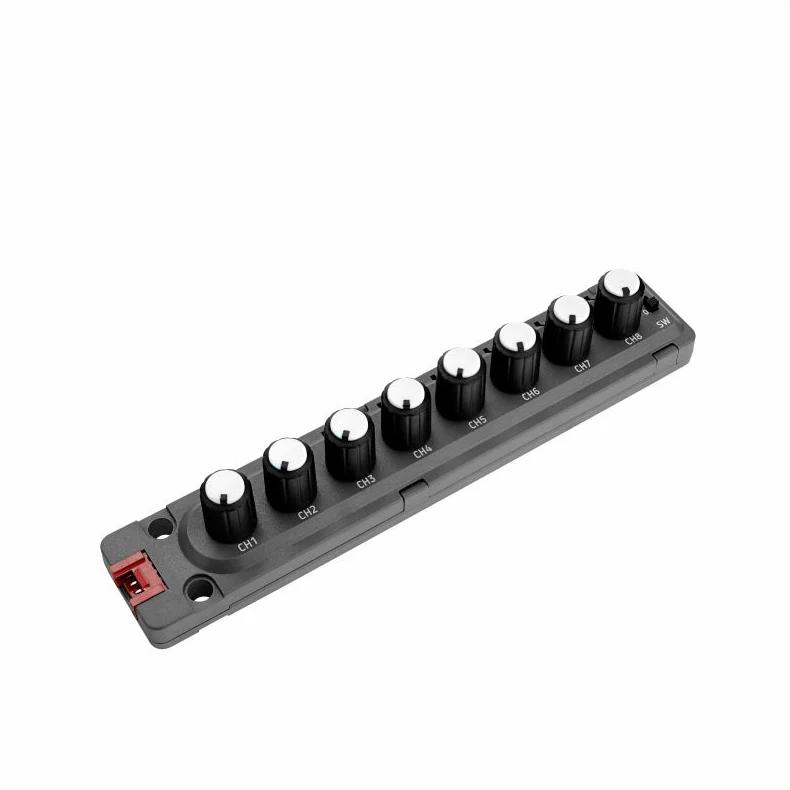

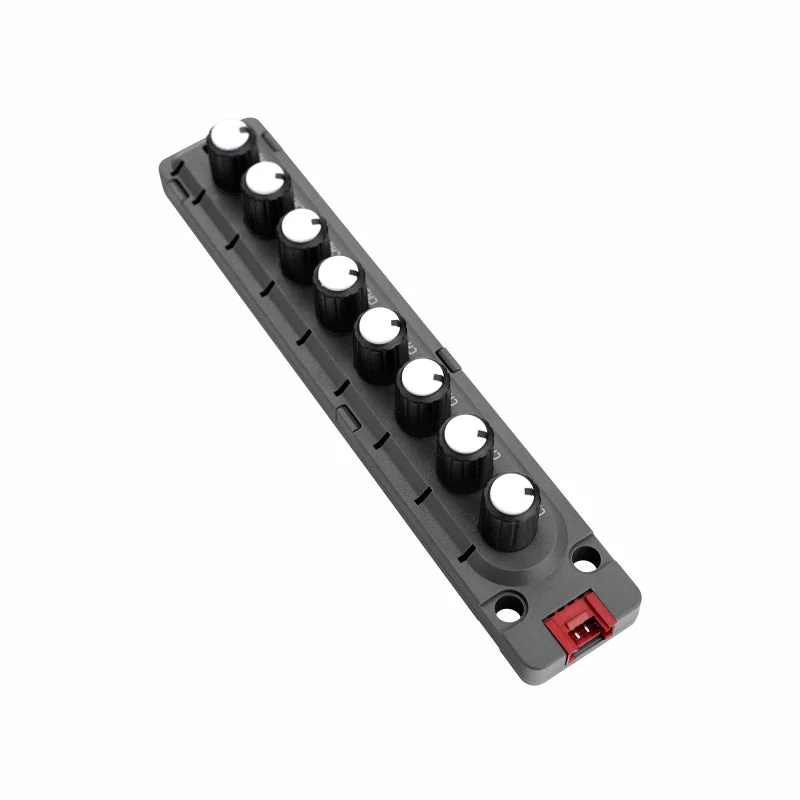

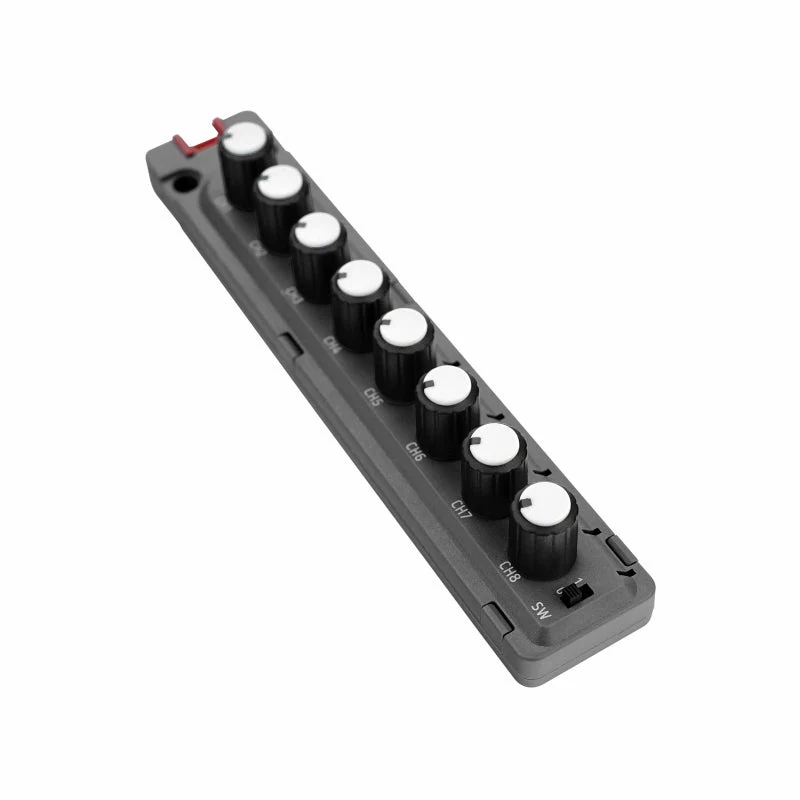

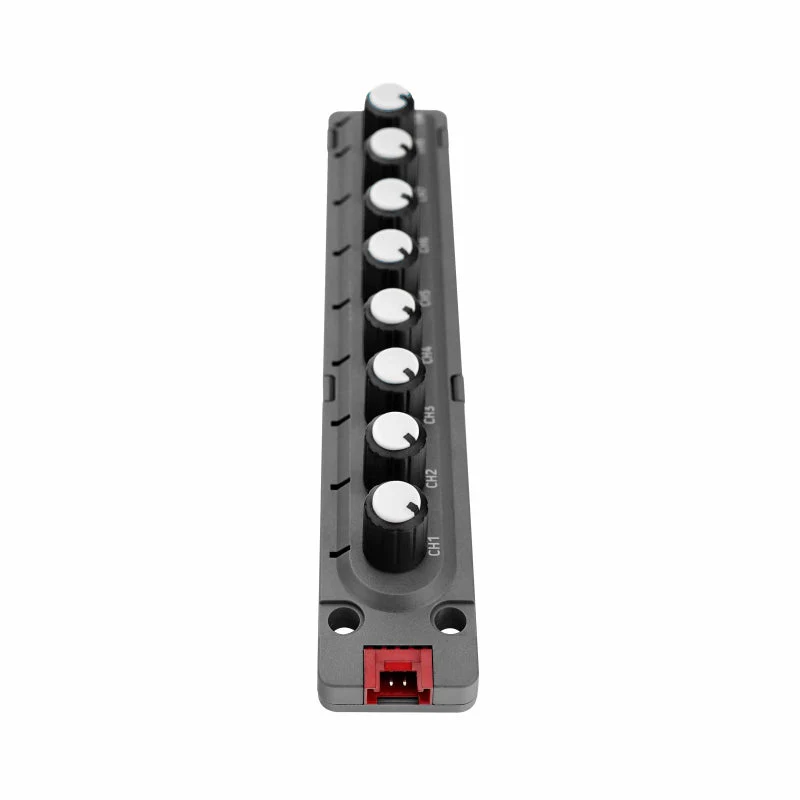

UNIT 8EnCoder is a set of 8 rotary encoders as one of the input unit, using an STM32 single-chip microcomputer as the acquisition and communication processor.

The host computer communicates using I2C, each rotary encoder corresponds to 1 RGB LED light. Each encoder, in addition to left and right rotation, can also be radially pressed. The Unit also has a physical toggle switch and its corresponding RGB LED light, including 5V->3V3 DCDC circuit.

The unit can be used for the input of multi-channel relative control values, the corresponding RGB lamp can display different statuses, and the toggle switch can be used for the input of multi-channel switching quantities. It can be used as a multi-degree-of-freedom robot or music equalization application.

Features

• 8-channel Rotary encoder
• 8 channels correspond to RGB lights
• I2C communication
• Toggle switches can be used for multi-channel switching inputs
• Radial press function
• HY2.0-4P interface
• 2x LEGO compatible holes

Includes

• 1x 8Encoder Unit
• 1x HY2.0-4P Cable(20cm)

Applications

• Multi-degree-of-freedom robot joint control
• Music equalization control aspects
• Multi-channel light control

Specification

Resources	Parameters
MCU	STM32F030C8T6
RGB	WS2812C-2020
Input voltage	5v
I2C communication address	0x41
Product Size	128mm x 24mm x 22.7mm
Package Size	130mm x 27.7mm x 27.7mm
Product Weight	42.8g
Package Weight	52.4g

Documentation

• STM32F030C8T6
• Schematic & Examples
