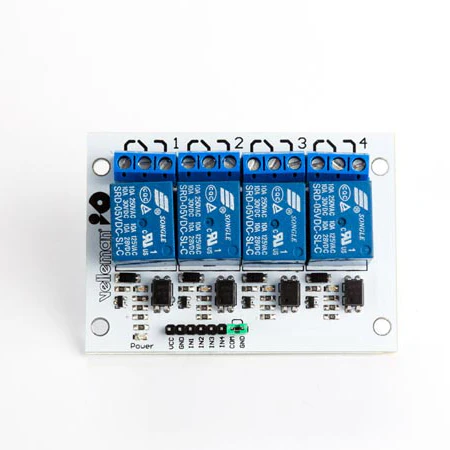

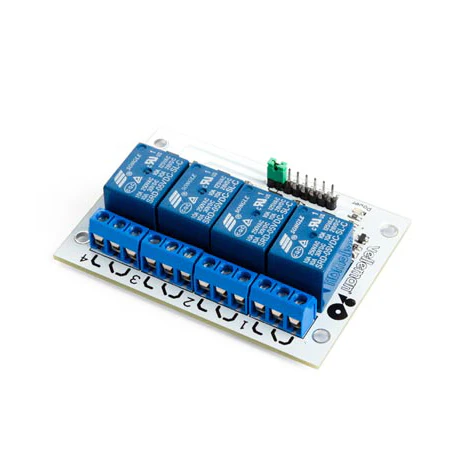

4 Channel Relay Module
This 4-channel relay interface board can control various appliances and other equipment with high current. It can be controlled directly by any micro-controller with 5V logic.
Features
- standard interface that can be controlled directly by any microcontroller with 5V logic
- opto-isolated inputs
- indicator LEDs for relay output status
Specifications
- control input current (in1 to in4): 5 - 15 mA
- control input voltage: 5 - 12 VDC
- relay output: 250 VAC 10 A; 30 VDC 10 A (non-inductive)
- dimensions: 75 x 55 x 19 mm
- weight: 61 g
Manual
Info Sheets
$3.21
Original: $9.17
-65%4 Channel Relay Module—
$9.17
$3.21Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This 4-channel relay interface board can control various appliances and other equipment with high current. It can be controlled directly by any micro-controller with 5V logic.
Features
- standard interface that can be controlled directly by any microcontroller with 5V logic
- opto-isolated inputs
- indicator LEDs for relay output status
Specifications
- control input current (in1 to in4): 5 - 15 mA
- control input voltage: 5 - 12 VDC
- relay output: 250 VAC 10 A; 30 VDC 10 A (non-inductive)
- dimensions: 75 x 55 x 19 mm
- weight: 61 g
