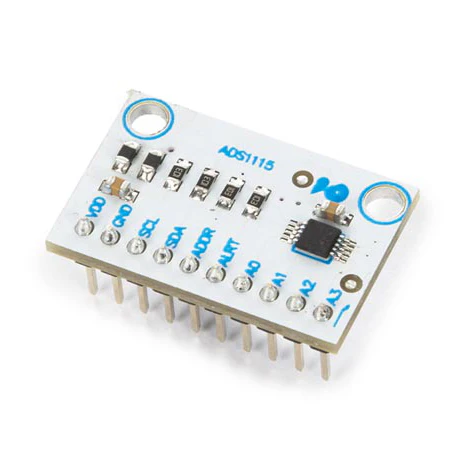

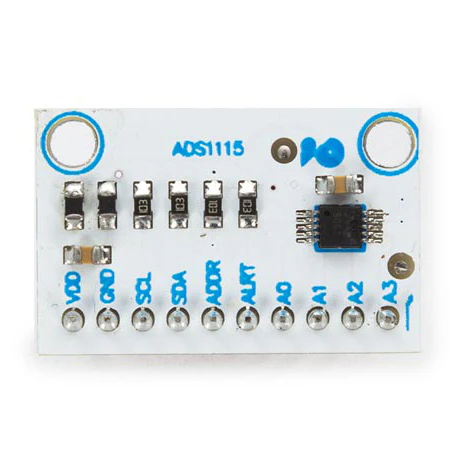

The 4 channel ADS1115 16 BIT ADC I²C module is a great general purpose 16-bit converter. The chip can be configured as 4 single-ended input channels, or two differential channels.

It contains 4 precision, low-power, 16-bit, I2C-compatible, analog-to-digital converters (ADCs). It also has a low-drift voltage reference and an oscillator as well as a programmable gain amplifier (PGA) to help boost smaller single/differential signals to the full range and a digital comparator.

Features

• low-drift reference voltage
• internal oscillator
• internal programmable gain amplifier
• 4 single-ended channels or 2 differential channels
• programmable comparator
• low current consumption with auto shut-down mode

Specifications

• operating voltage: 2 to 5.5 VDC
• operating current: 150 uA in continuous mode
• precision: 16 bits
• programmable data rate: 8 to 860 samples per second
• interface: I²C with 4 pin selectable addresses (0x48-0x4B)

Manual

• User manual

Info Sheets

• ADC - Basics
• ADS1115 - Datasheet 1
• ADS1115 - Datasheet 2

Firmware

• VMA453 Example
• VMA453 Library
