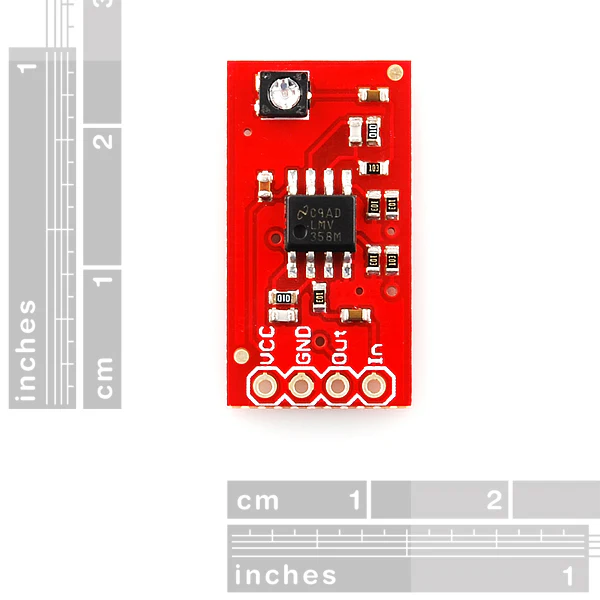

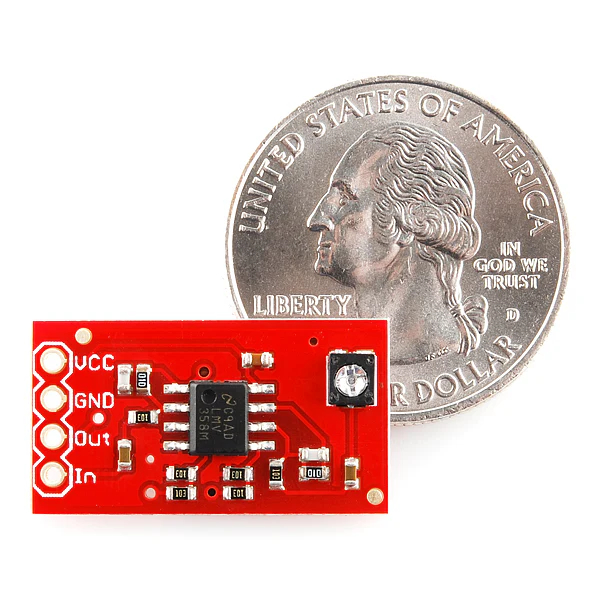

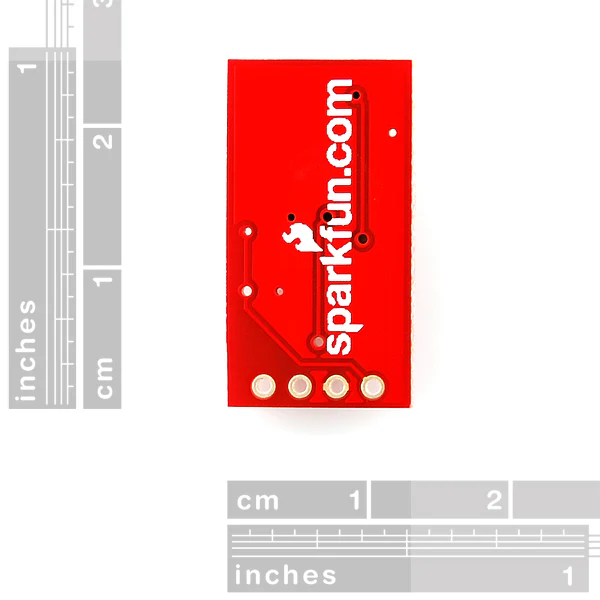

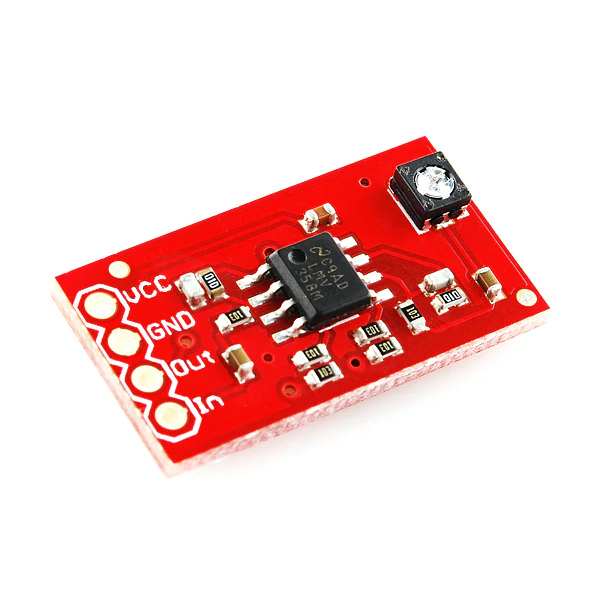

This is a simple 5V Op Amp breakout board, set up as a 2-stage amplifier with a gain of 100 (gain of 10 for each stage).

The on-board trim pot sets the signal level between the stages, not the feedback path. The bandwidth is set to 15.9kHz by a pair of feedback capacitors, or over 100kHz with the caps removed. The LMV358 opamp can source up to 160mA and works well as a low impedance driver/buffer.

Documents

• Schematic
• Eagle Files
• Introduction to Op Amps with LTSpice
• Datasheet (LMV358)
• GitHub (Design Files)
