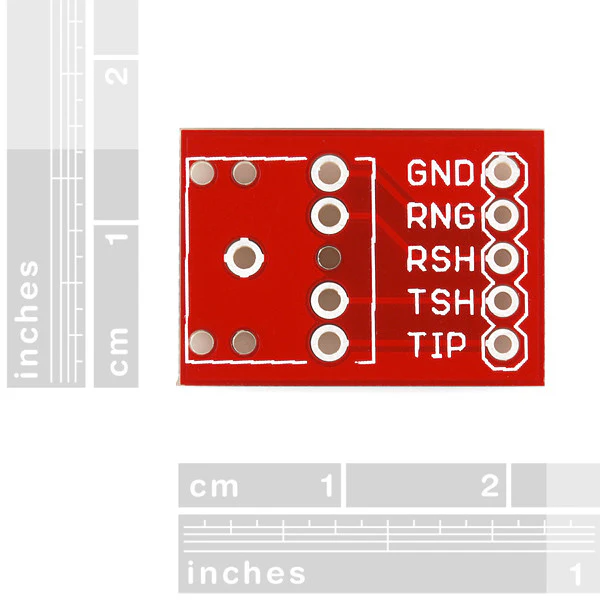

SparkFun Audio Jack Breakout
Simple breakout board for the 3.5mm audio jack.
Use this breakout (shipped bare) to allow breadboard or SIP access to the super-common 3.5mm audio jack. All five pins are broken out.
Note: You get the bare PCB only!
Documents:
- Schematic
- Eagle Files
- GitHub
