Sonoff DIN Rail Wire Connectors (20 pcs)

Product image 1
1 / 6

Sonoff DIN Rail Wire Connectors (20 pcs)

This DIN rail terminal block kit makes wiring up distribution boards and control cabinets faster and more straightforward.

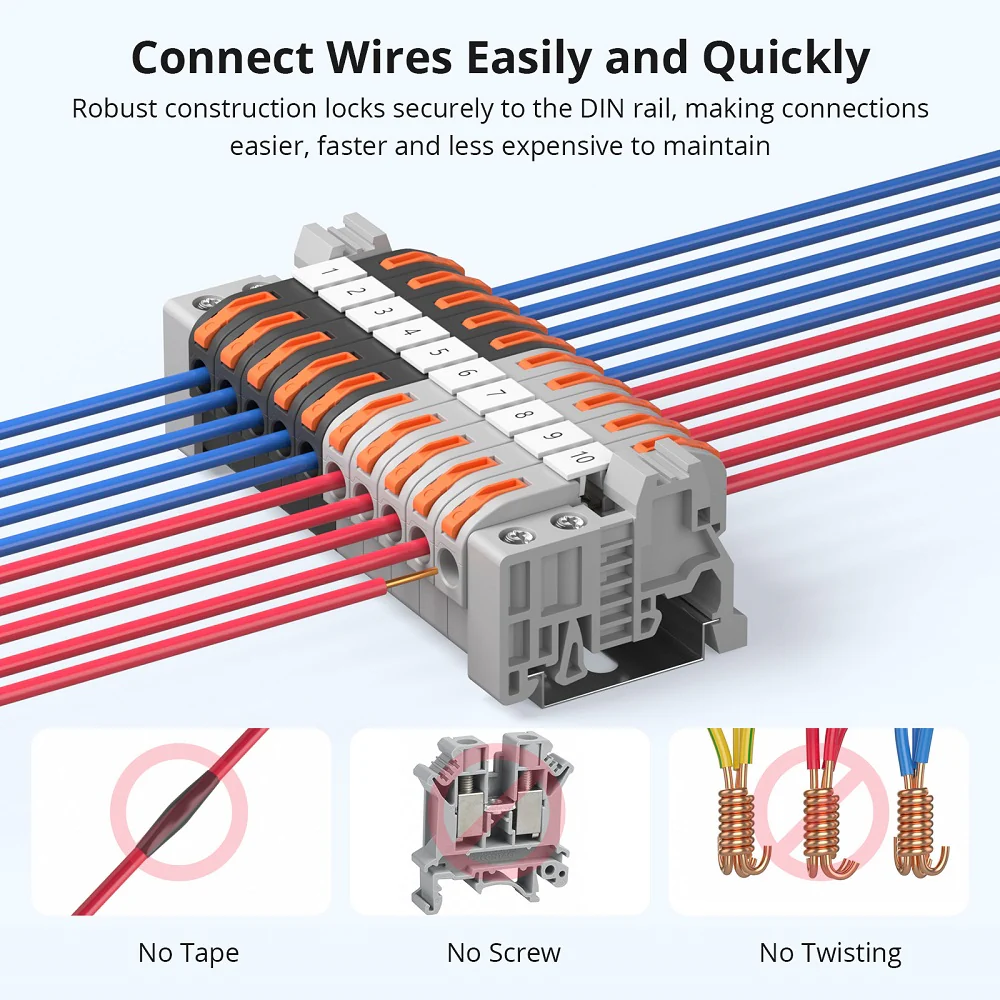

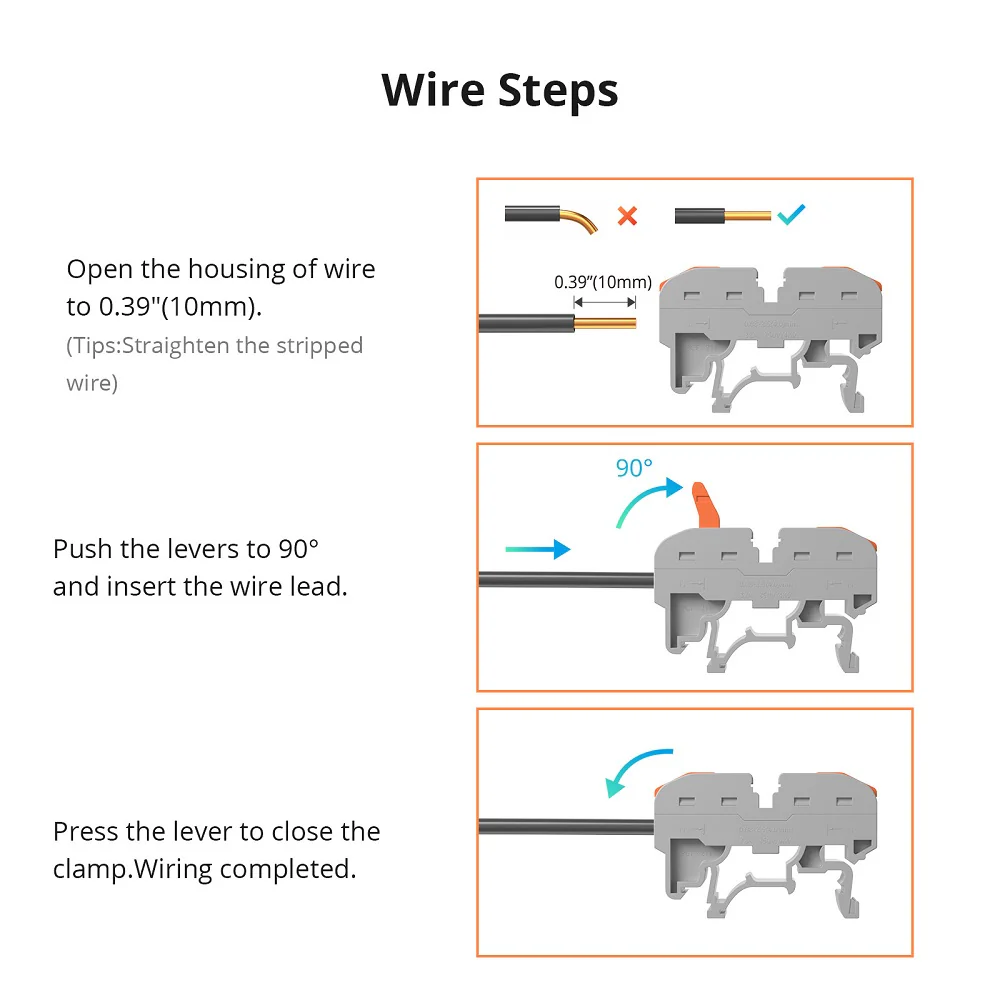

The connectors and end-stops clip straight onto standard 35 mm DIN rail. To connect wires, simply lift the lever, insert the wire, and press it closed for a secure connection.

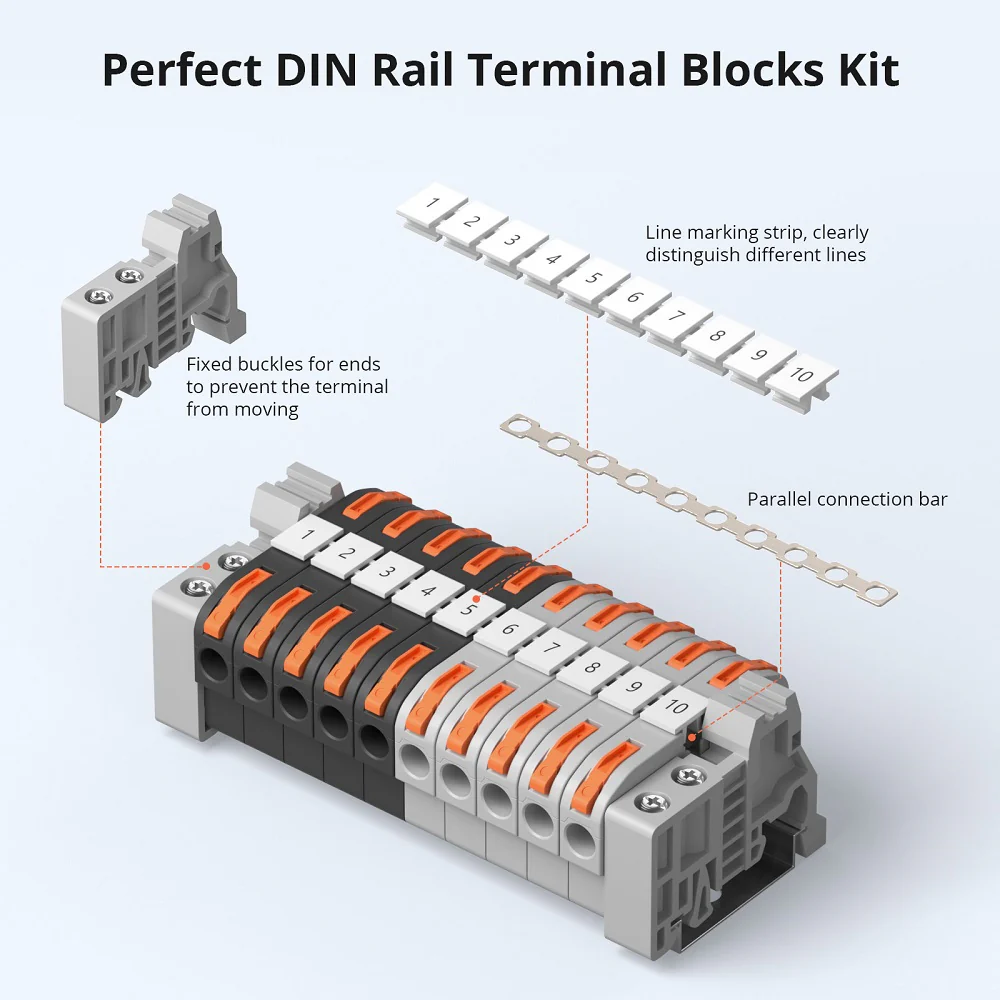

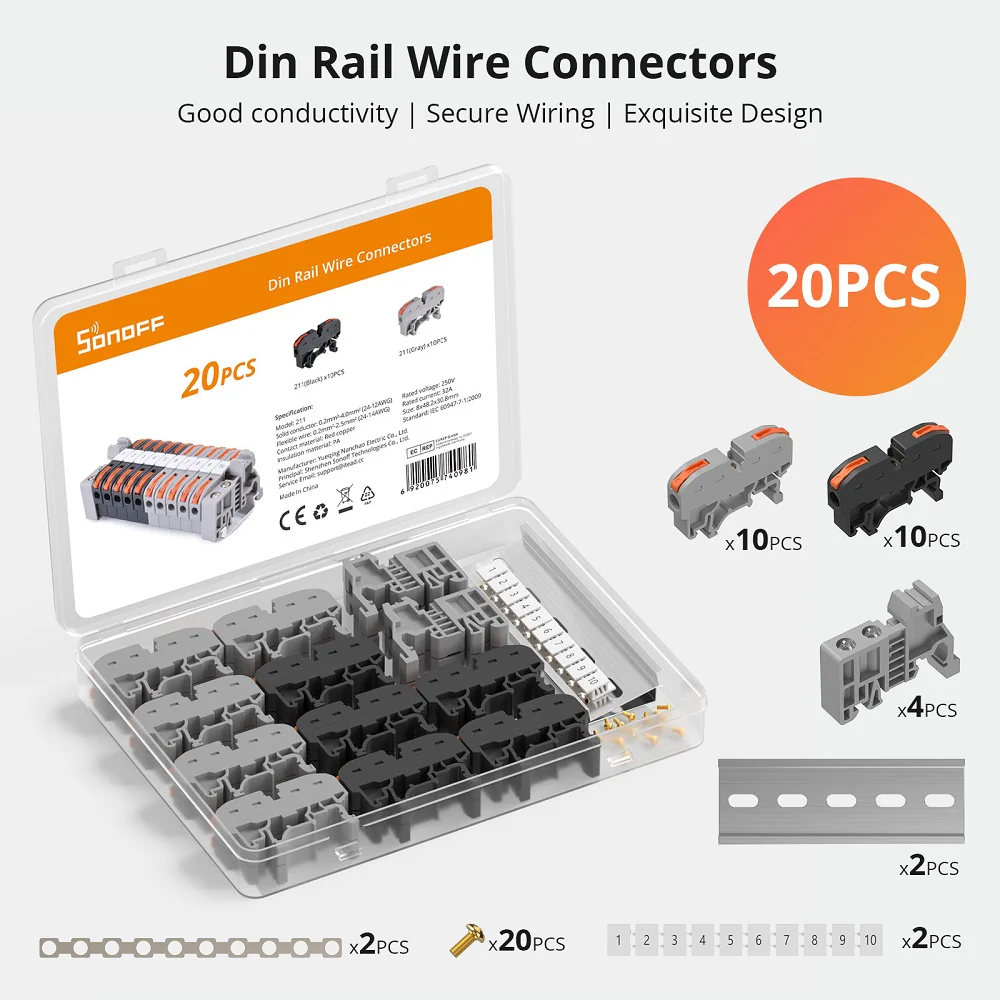

Supplied as a complete kit with terminal blocks, connectors, end stops, labels, and a handy storage box, it’s well suited to home lab setups, CNC and automation projects, test rigs, and other builds where neat, reliable wiring really matters.

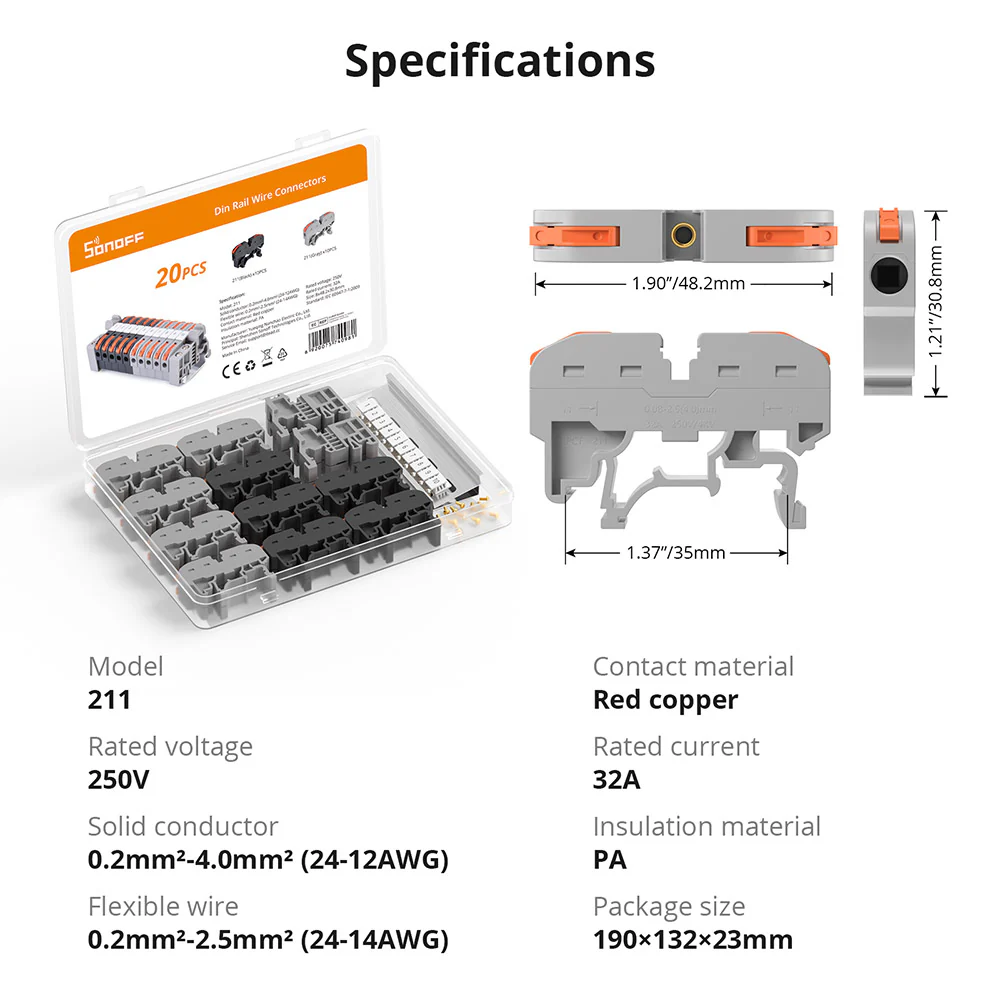

Specifications

  • Model: 211
  • Rated voltage: 250V
  • Rated current: 32A
  • Solid wire: 0.2 to 4 mm² (24–12 AWG)
  • Flexible wire: 0.2 to 2.5 mm² (24–14 AWG)
  • Insulation material: PA
  • Contact material: Red copper
  • Connector size: 8 x 48.2 x 30.8mm




$11.21
Sonoff DIN Rail Wire Connectors (20 pcs)—
$11.21

Product Information

Shipping & Returns

Description

This DIN rail terminal block kit makes wiring up distribution boards and control cabinets faster and more straightforward.

The connectors and end-stops clip straight onto standard 35 mm DIN rail. To connect wires, simply lift the lever, insert the wire, and press it closed for a secure connection.

Supplied as a complete kit with terminal blocks, connectors, end stops, labels, and a handy storage box, it’s well suited to home lab setups, CNC and automation projects, test rigs, and other builds where neat, reliable wiring really matters.

Specifications

  • Model: 211
  • Rated voltage: 250V
  • Rated current: 32A
  • Solid wire: 0.2 to 4 mm² (24–12 AWG)
  • Flexible wire: 0.2 to 2.5 mm² (24–14 AWG)
  • Insulation material: PA
  • Contact material: Red copper
  • Connector size: 8 x 48.2 x 30.8mm
