Rocker Switch

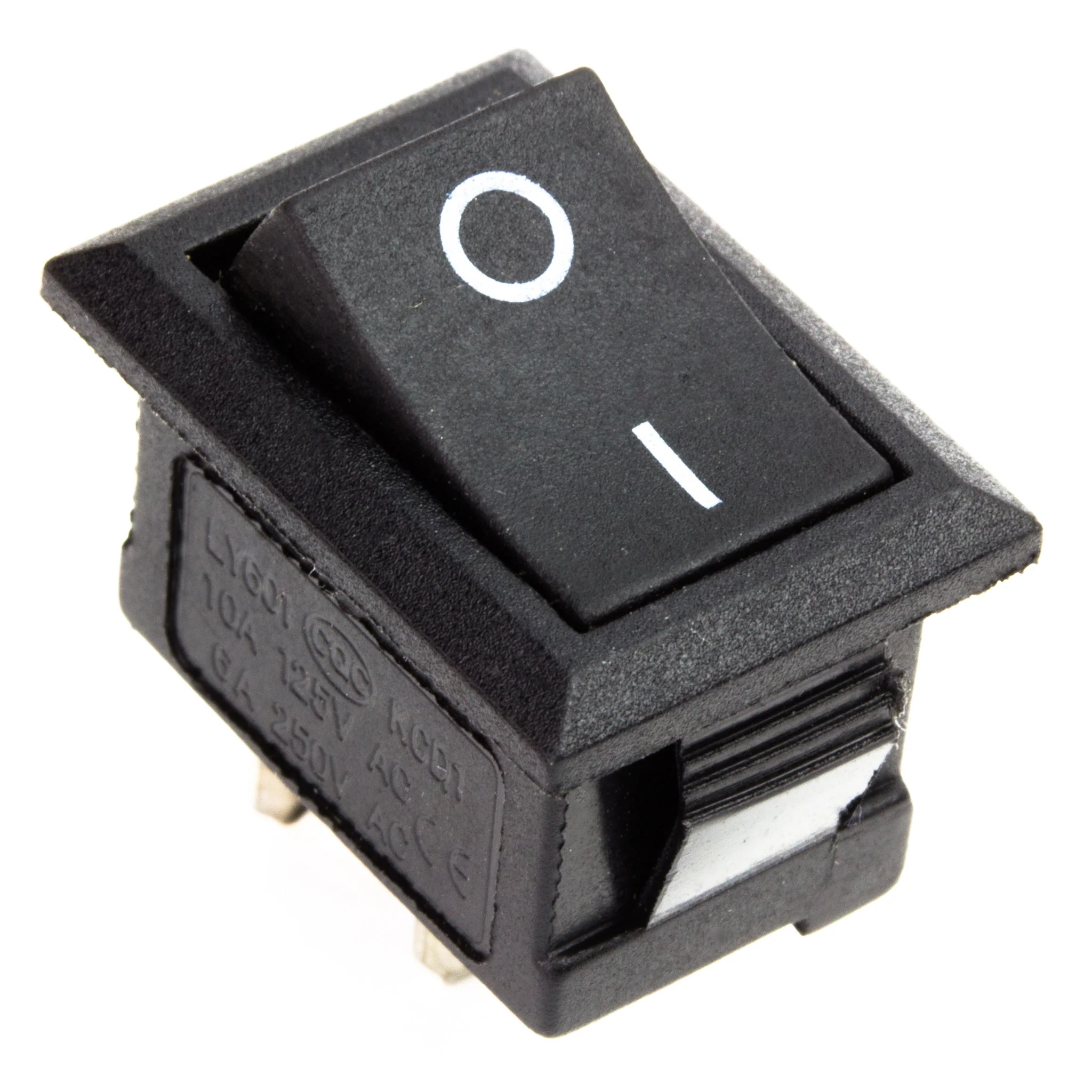

The rocker switch is a classic and this one is a great size for an unobtrusive on/off switch.

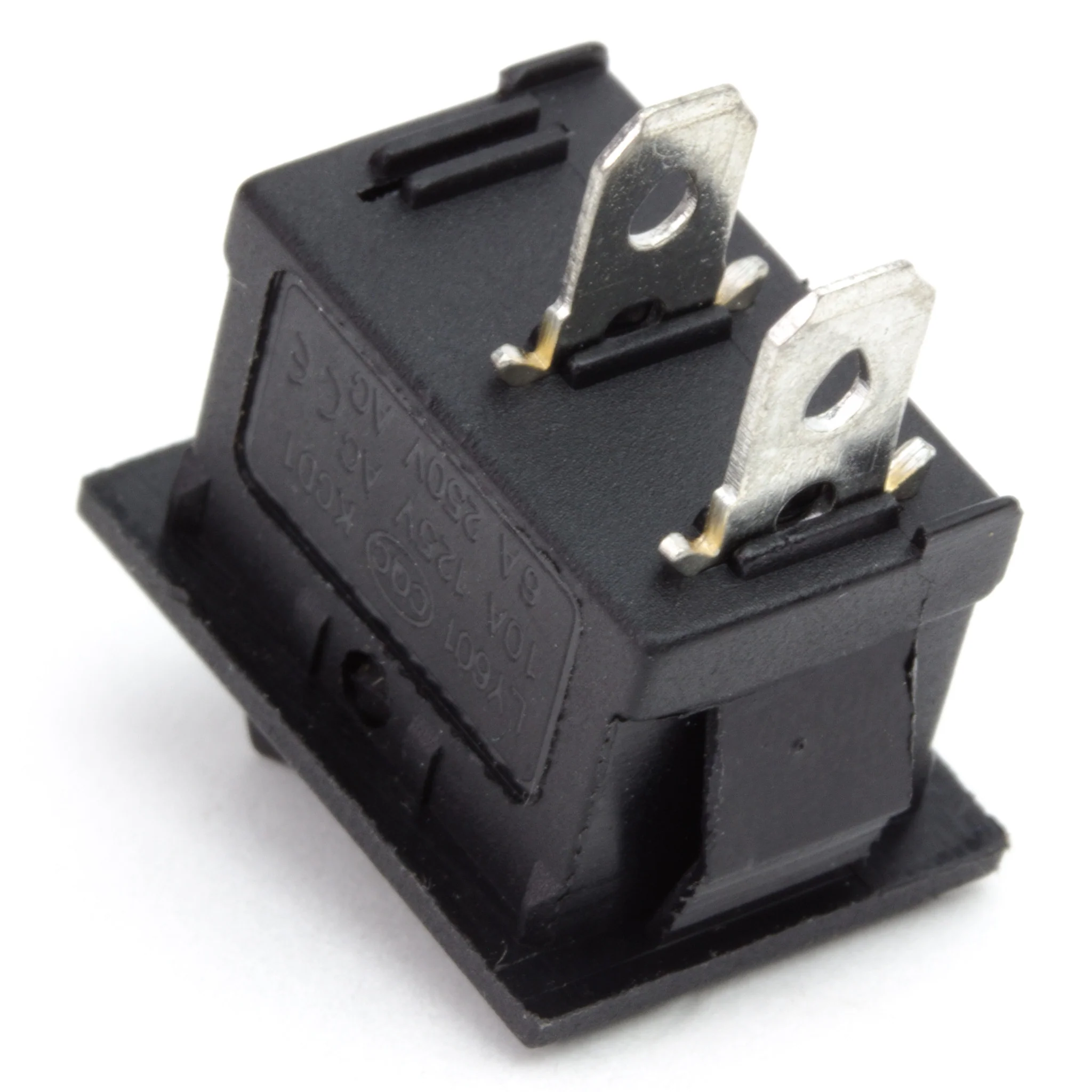

It can be panel mounted and has two tabs for connecting wire. You can either solder wire or use a quick-connect connector.

Features:

  • Maximum Voltage: 250VAC
  • Maximum Current: 6A @ 250VAC or 10A @ 125VAC
  • Contact Resistance: ≤35mΩ
  • Insulation Resistance: ≥100MΩ
  • Operating Temperature: -25°C to 85°C
  • Snap-in Panel Mount
  • Switch face measures 15 x 21mm
  • Switch body measures 12 x 19 x 14mm (w x d x h, not including rocker or contacts)
