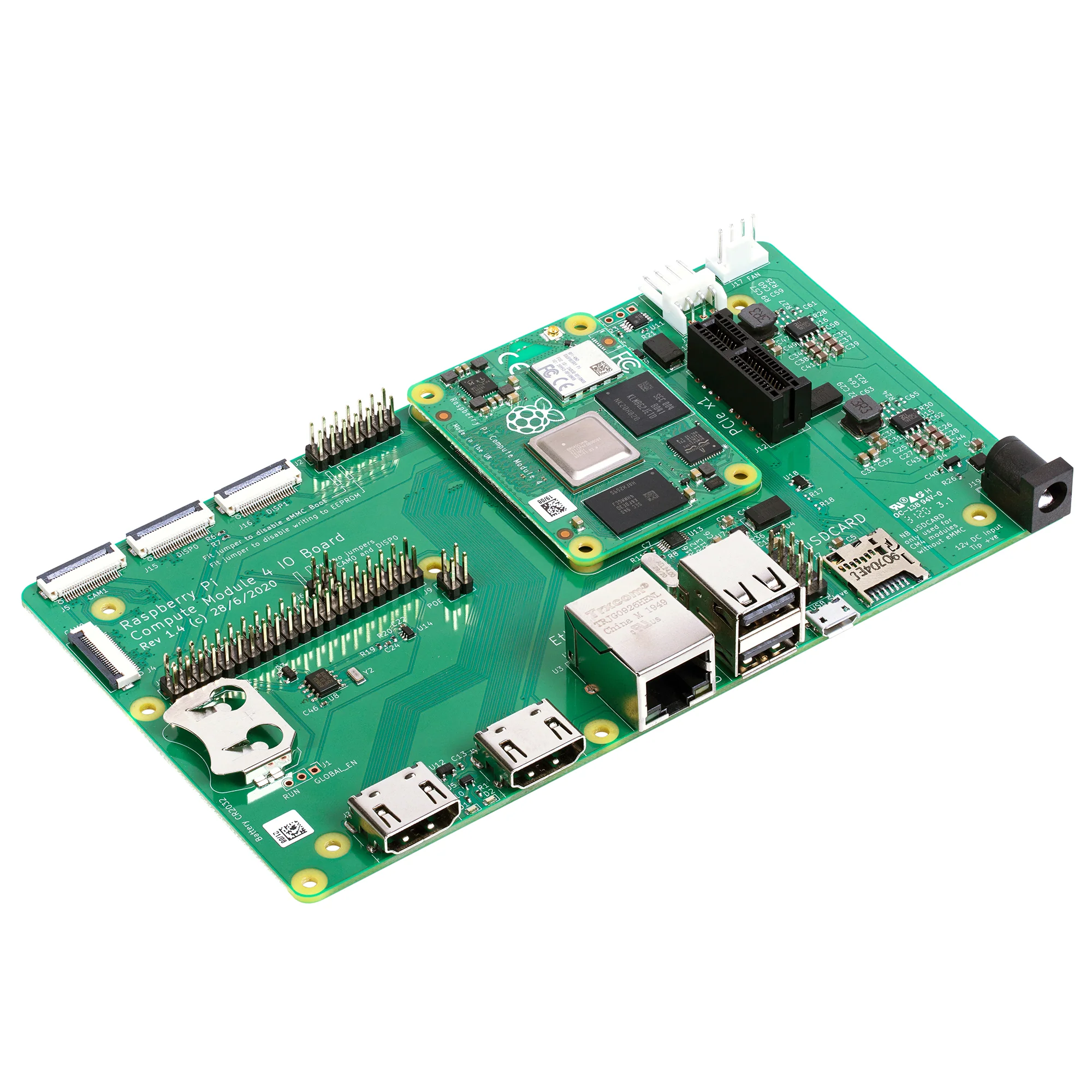

Exposing every interface from Raspberry Pi Compute Module 4, the Compute Module 4 IO Board provides a development platform and reference base-board design for the most powerful Compute Module yet.

You'll need to order a Raspberry Pi 4 Compute Module (not included!) to use this board.

Specification

• External power connector (+12V, +5V)
• 2 x full-size HDMI 2.0 connectors
• 2 x USB 2.0 connectors, with header for two additional connectors
• Gigabit Ethernet RJ45 with PoE support
• Micro USB socket for updating Compute Module 4
• MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
• PCIe Gen 2 x1 socket
• Standard fan connector
• 2 x MIPI DSI display FPC connectors (22-pin 0.5 mm pitch cable)
• 2 x MIPI CSI-2 camera FPC connectors (22-pin 0.5 mm pitch cable)
• Standard Raspberry Pi HAT connectors
• Real-time clock with battery socket and ability to wake Compute Module 4
• Various jumpers to disable specific features, e.g. wireless connectivity, EEPROM writing

Documents

• Raspberry Pi Compute Module 4 IO Board product brief
• Raspberry Pi Compute Module 4 IO Board datasheet
• Raspberry Pi Compute Module 4 IO Board KiCAD file

Compliance

The Raspberry Pi Compute Module 4 IO Board has undergone extensive compliance testing and meets the standards required in many countries. You can find all compliance information and regional certificates at raspberrypi.org/compliance.

If you are integrating the Compute Module 4 IO Board into a product and need assistance with compliance, the Raspberry Pi Integrator Programme can help: more information and contact details here.
