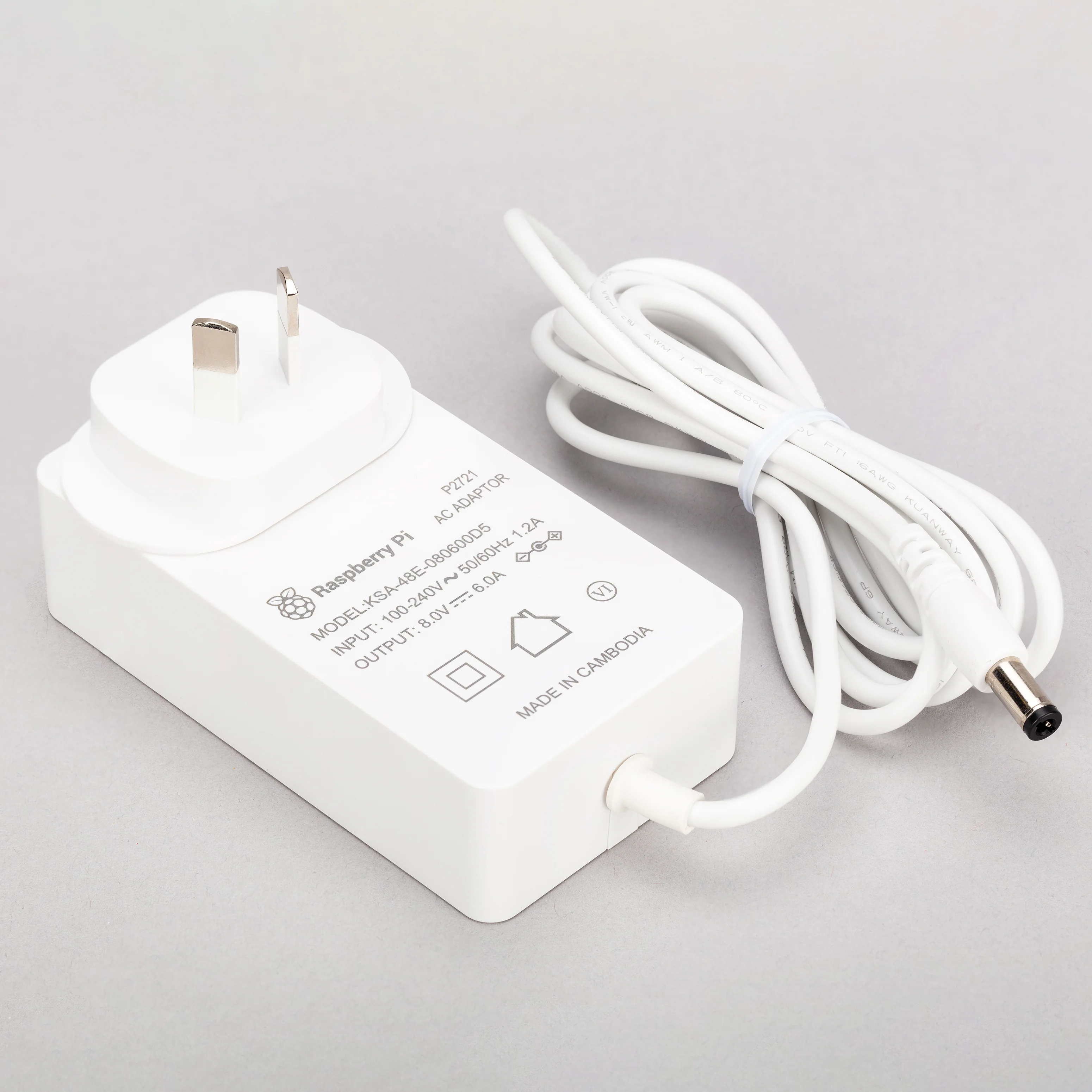

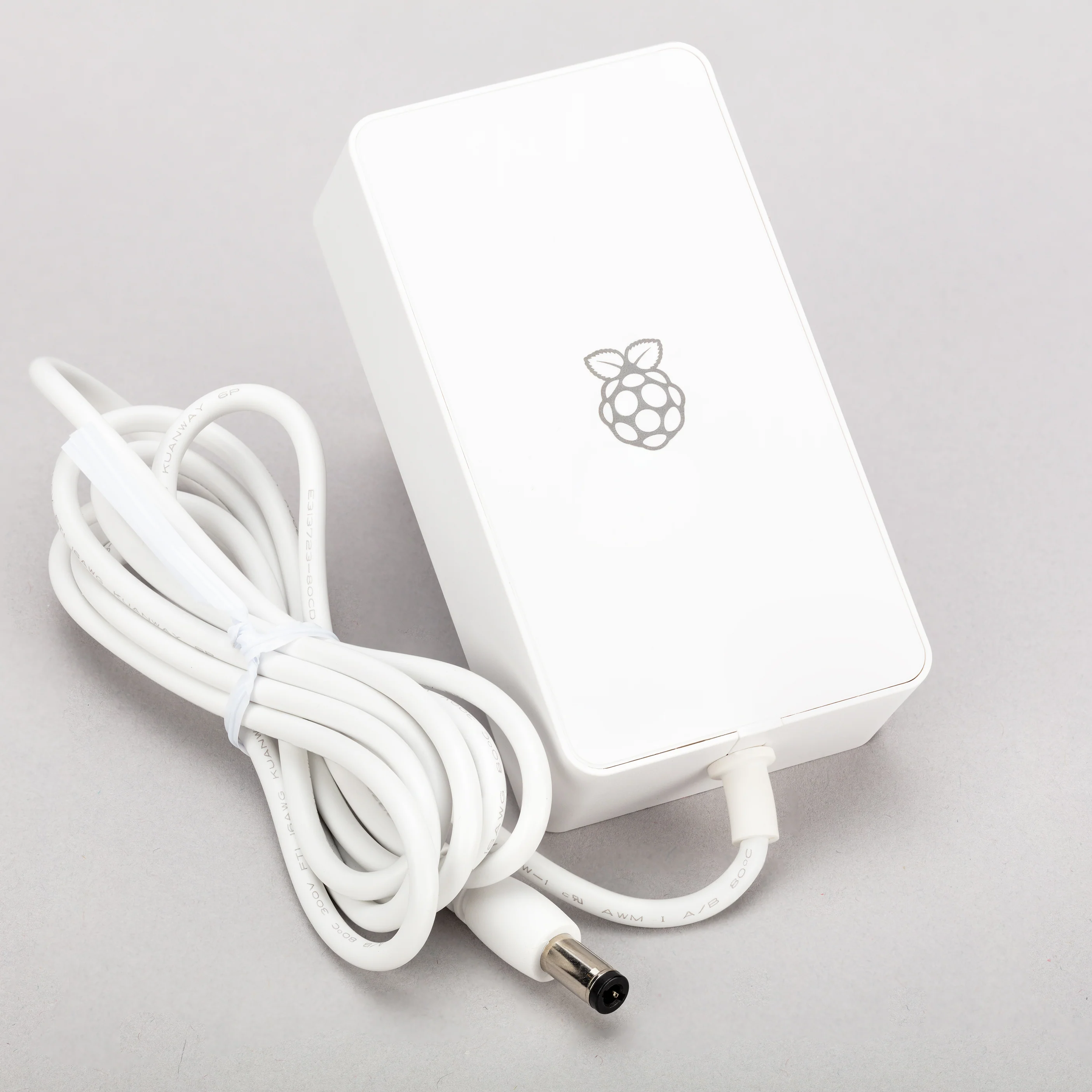

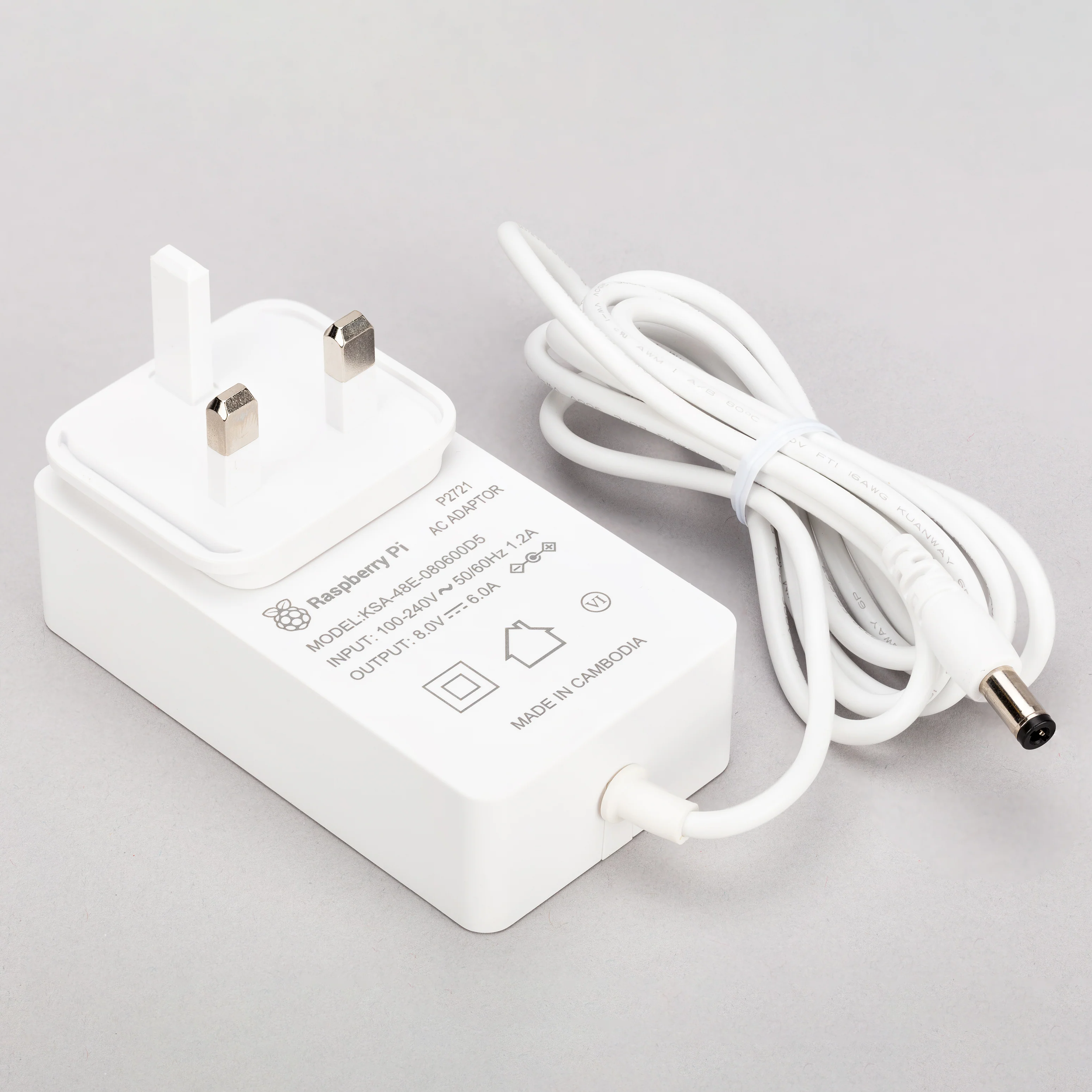

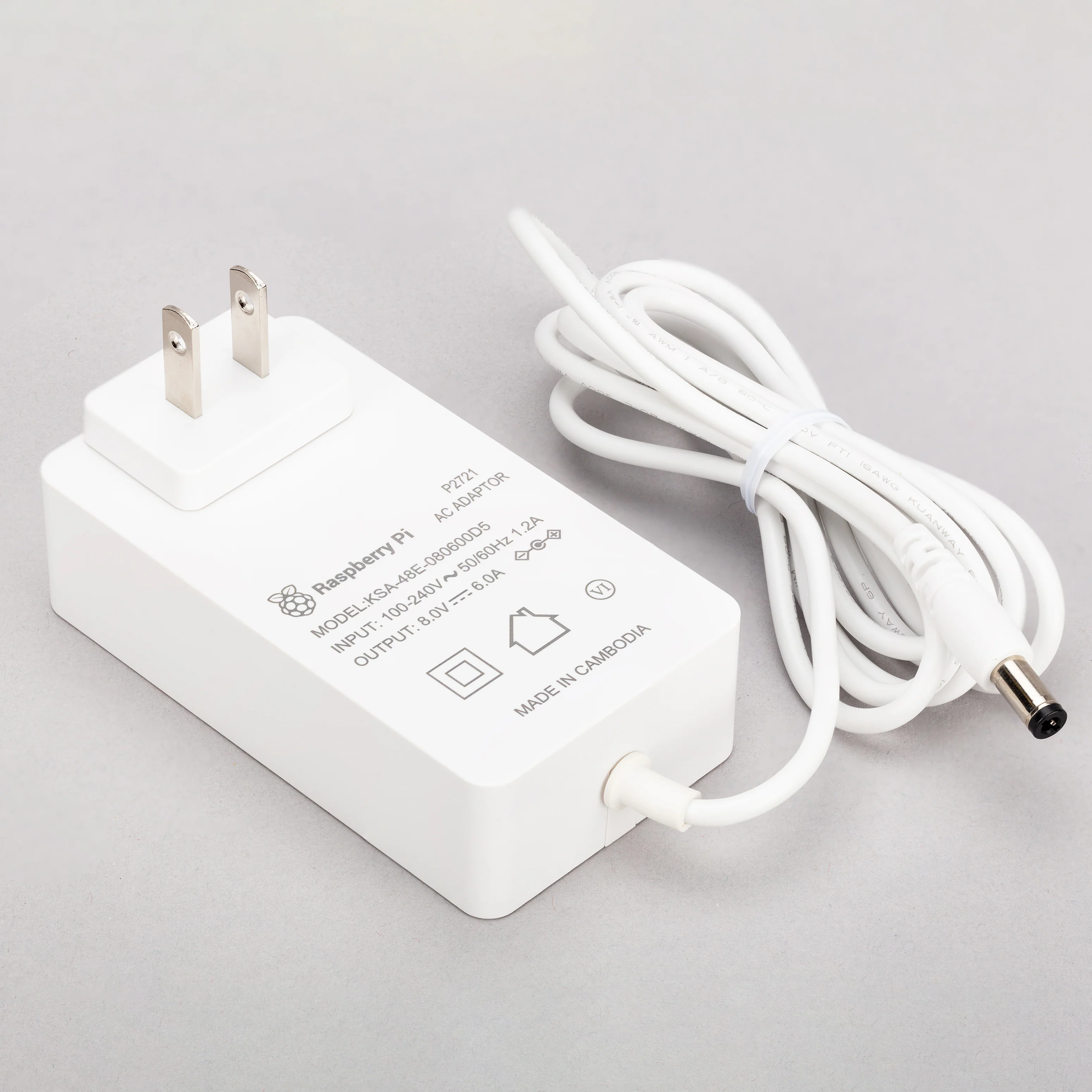

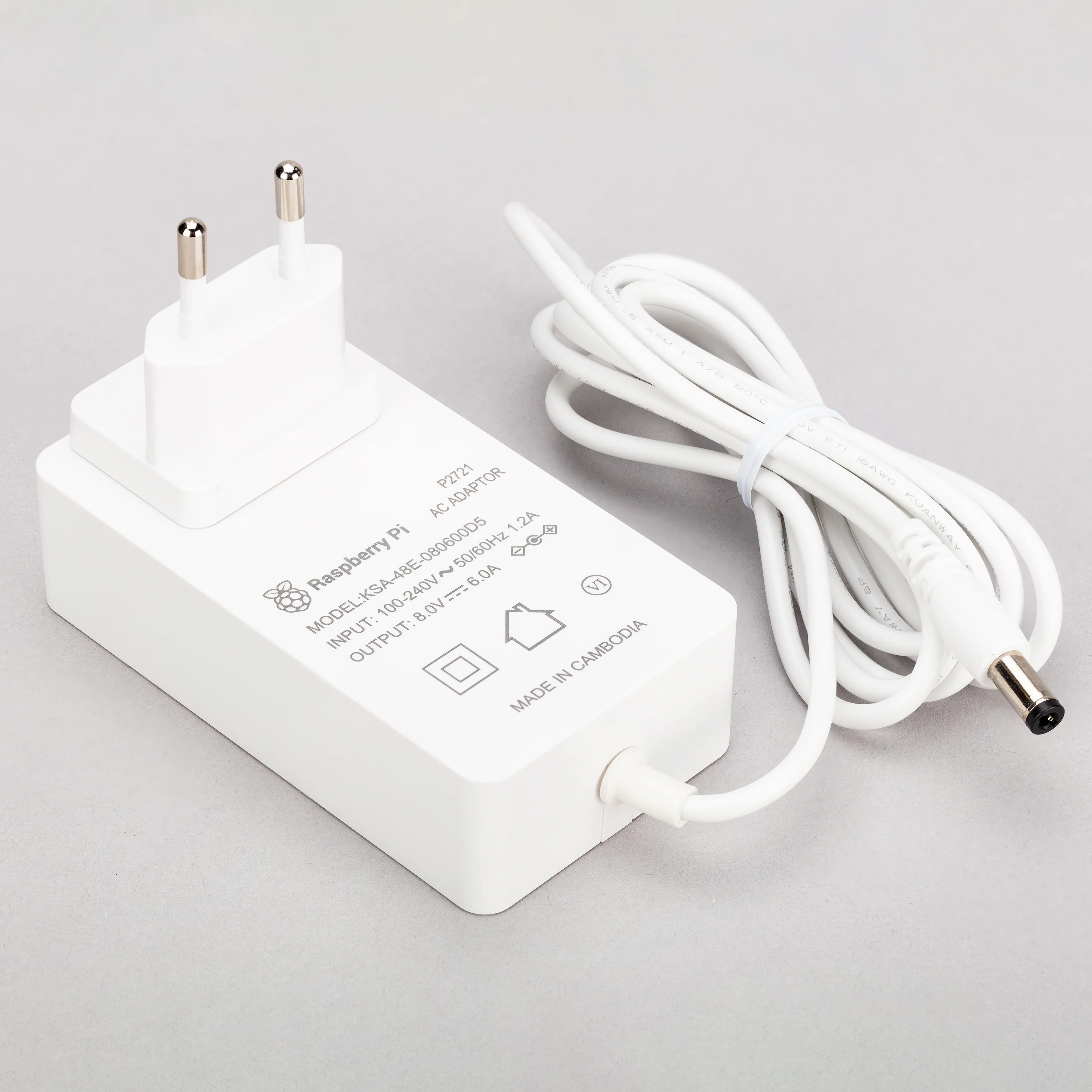

Raspberry Pi Build HAT Power Supply
Power your Raspberry Pi Build HAT projects with the Raspberry Pi Build HAT Power Supply. This 48W power supply will power the Build HAT and connected LEGO® Technic™ motors, as well as your Raspberry Pi computer.
Compatible with LEGO Technic motors and sensors included in the LEGO® Education SPIKE™ Portfolio, the Build HAT combines the power of Raspberry Pi computing with easy building opportunities to help you make creative and robust projects.
Specification
| Output | |
|---|---|
| Output voltage: | +8.0V DC |
| Minimum load current: | 0.01A |
| Nominal load current: | 6.0A |
| Maximum power: | 48.0W |
| Load regulation: | ±5% |
| Line regulation: | ±5% |
| Ripple & noise: | 200mVp-p |
| Rise time: | 100ms maximum to regulation limits for DC outputs |
| Turn-on delay: | 3000ms maximum at nominal input AC voltage and full load |
| Protection: | Short circuit protection |
| Overcurrent protection | |
| Overvoltage protection | |
| Efficiency: | 87.77% minimum (output current from 100%, 75%, 50%, 25%) |
| Output cable: | 1.5m 16AWG |
| Output connector: | Barrel connector |
| 5.5mm × 2.1mm × 11mm | |
| Centre positive | |
| Input | |
|---|---|
| Voltage range: | 100-240Vac (rated) |
| 96-264Vac (operating) | |
| Frequency: | 50/60Hz ±3Hz Current: 1.2A maximum |
| Power consumption (no load): | 0.1W maximum |
| Inrush current: | No damage shall occur and the input fuse shall not blow |
