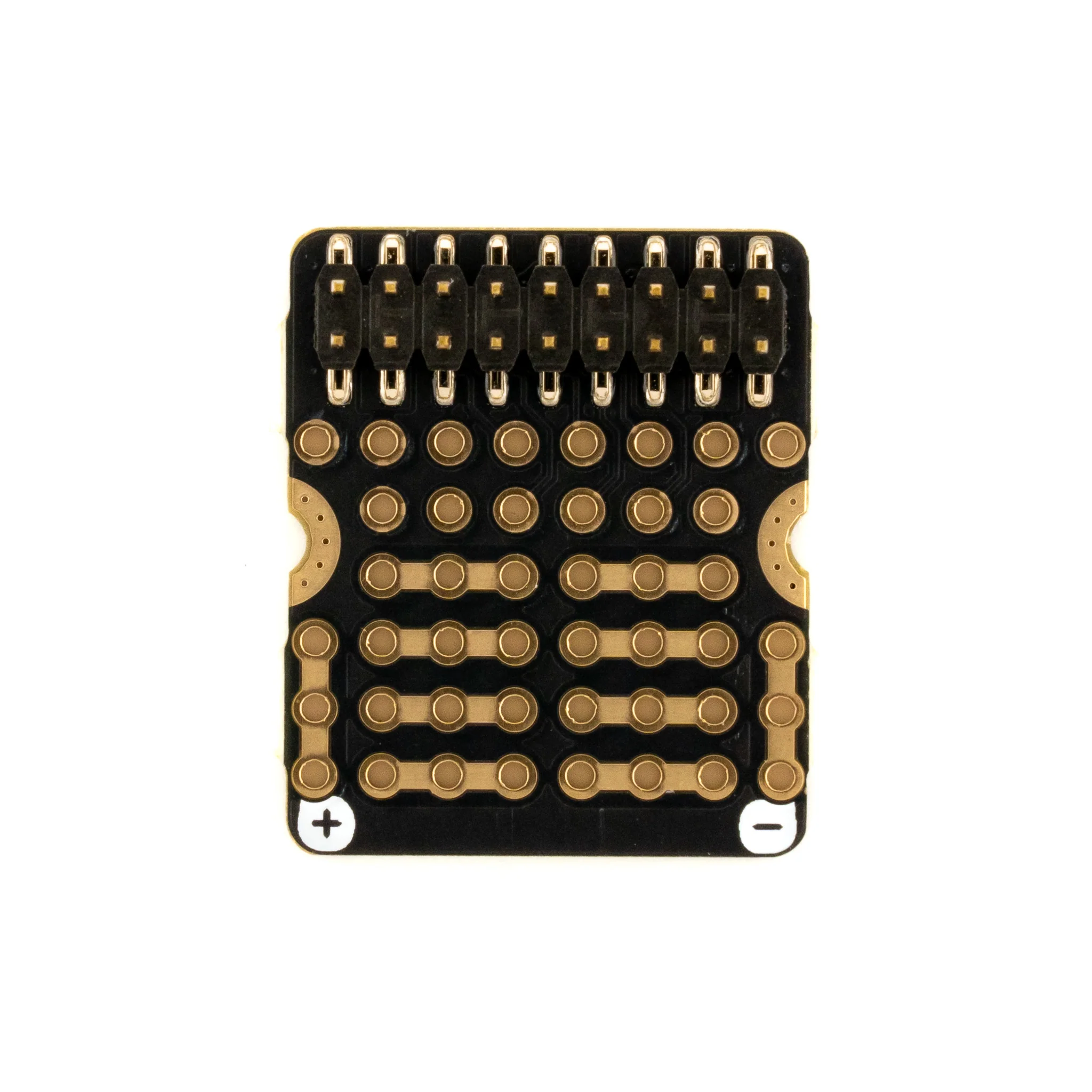

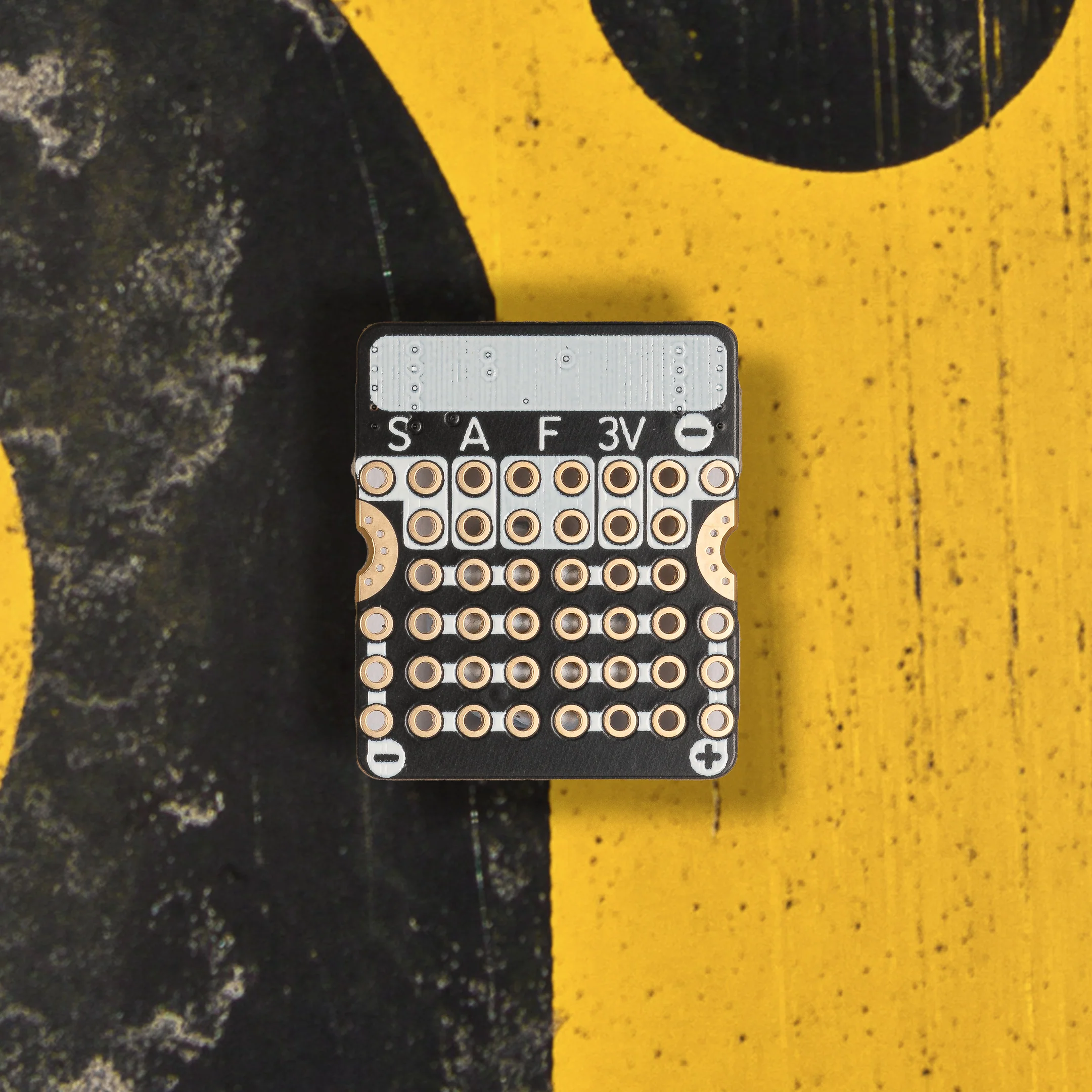

Proto Module for Yukon

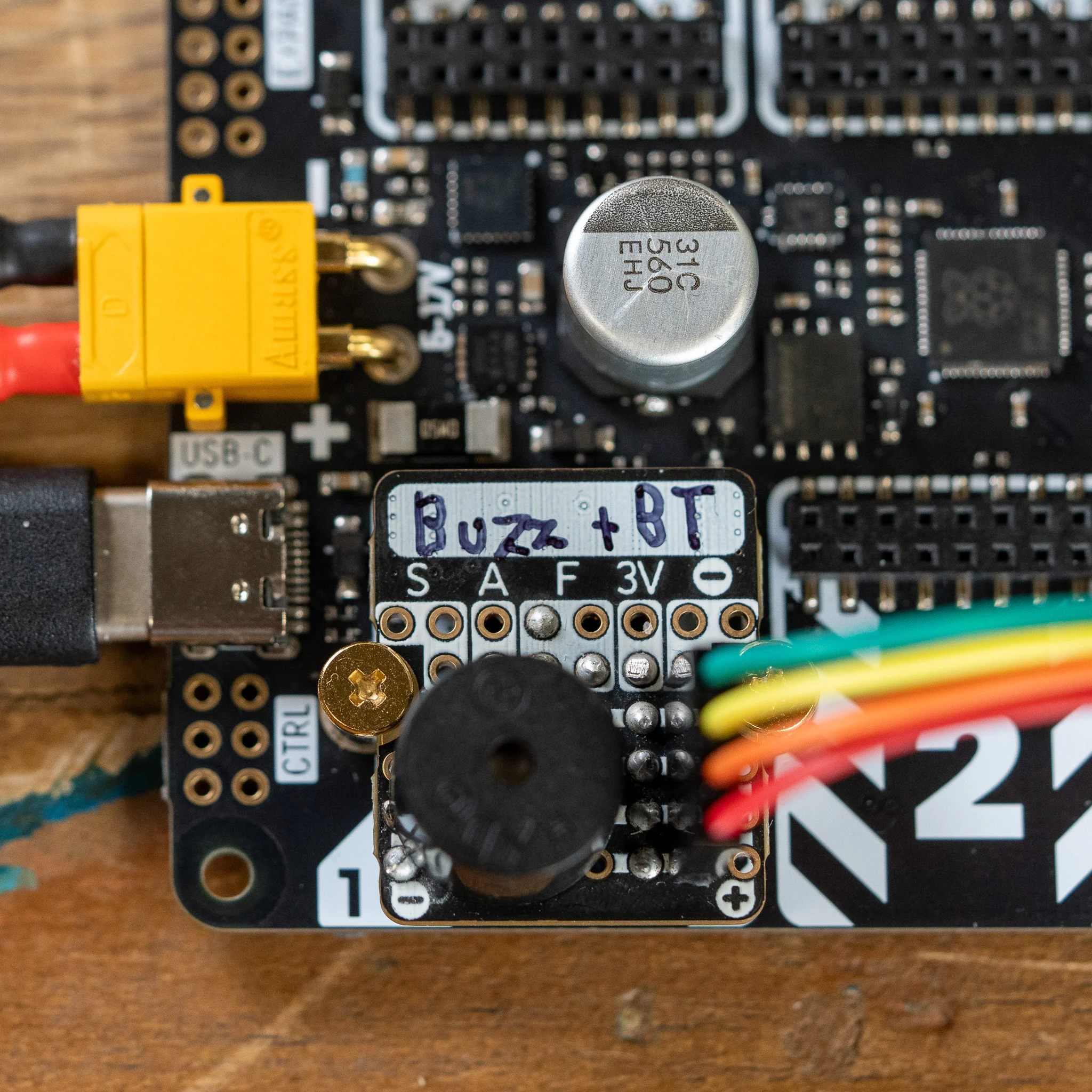

Create your own custom Yukon modules with this handy prototyping module.
Features
- All Yukon slot IO and power exposed via 0.1" spaced pads
- 6 x 4 prototyping area
- Board area for writing module name
- Fully-assembled
- Compatible with Pimoroni Yukon
Software
- MicroPython Examples
Pinout and Schematic
Notes
- Measurements: 24mm x 20mm x 5.3mm (L x W x H).
About Yukon

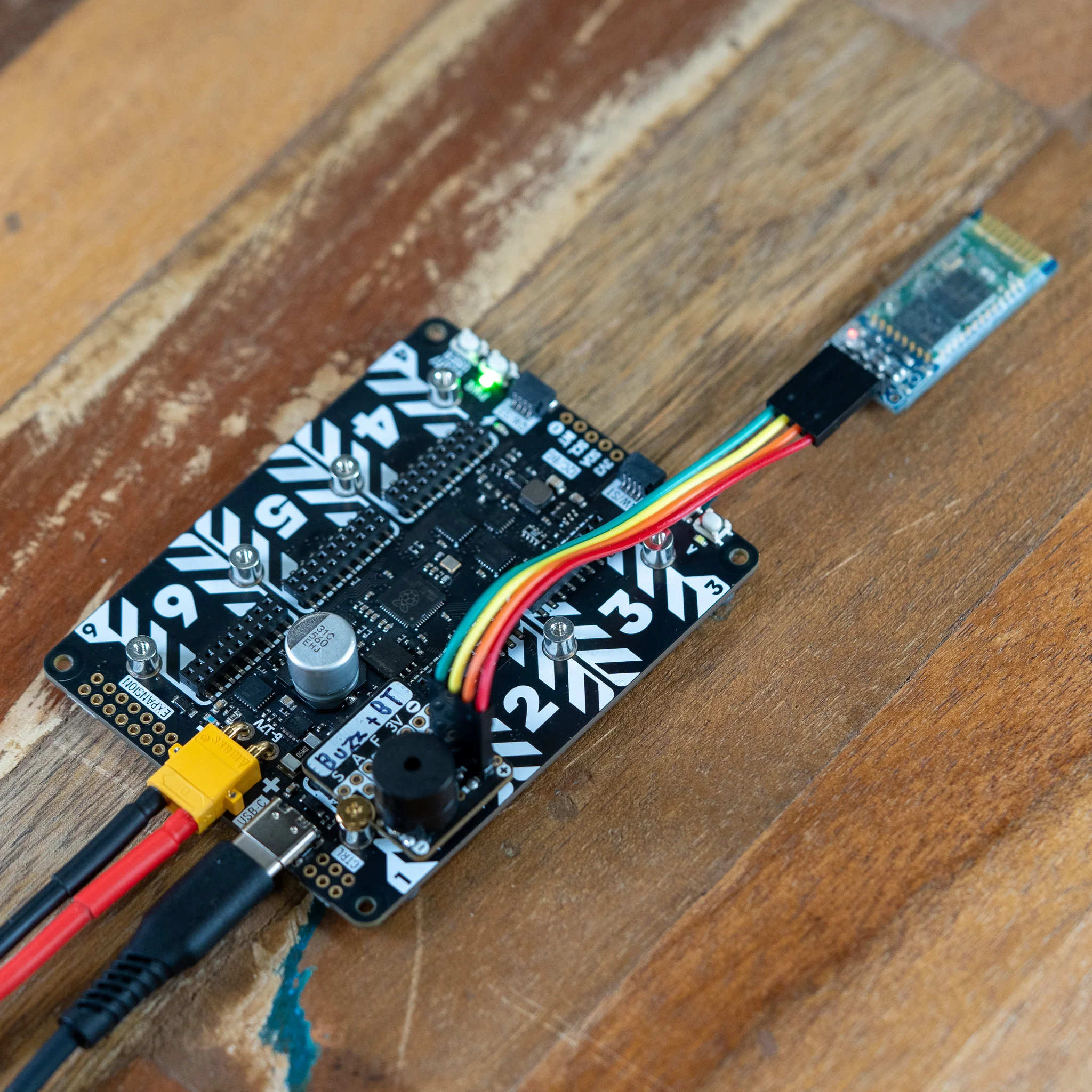

Yukon is a high-power modular robotics and engineering platform, built around Raspberry Pi's formidable RP2040 chip. It has slots for attaching interchangeable hardware modules for driving combinations of devices such as motors, servos, steppers, and LED strips, all from one board!
Featuring an XT30 connector, Yukon can be directly powered off 2 to 4 cell LiPo batteries (or any other 5 to 17V source), to deliver up to 15A continuous for your high-power projects. An e-Fuse with switchable output protects the board, along with voltage, current, and temperature sensors that can be monitored by your programs.
