Quadruplicate your GPIO pins and attach up to four add-ons to a single Raspberry Pi Pico with our formidable Pico Decker expander board!

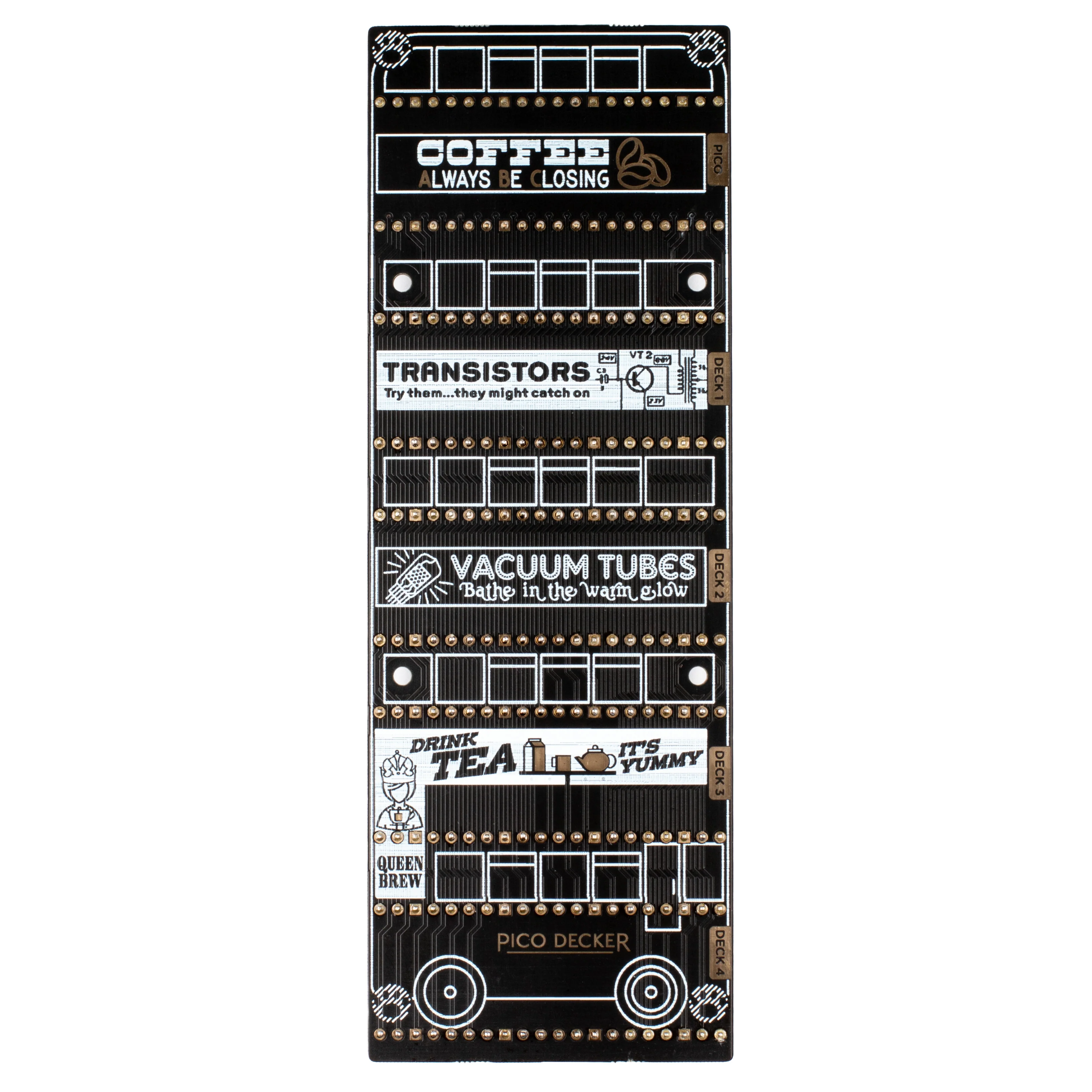

Struggling to choose between Pico add-ons? Mix and match up an epic stack of functionality and plug in up to four Pico Packs or Bases at once*, or use the four sets of fully labelled male GPIO pins to easily attach other devices, jumper wires or circuitry - very useful for prototyping. We've also included some little rubber feet to keep everything solid, four M2.5 mounting holes and some particularly whimsical Routemaster bus inspired artwork on the back 🚌

If you're after something a little more compact, we also make a two slot Pico Omnibus.

A Raspberry Pi Pico is not included - click here if you'd like to buy one!

Features

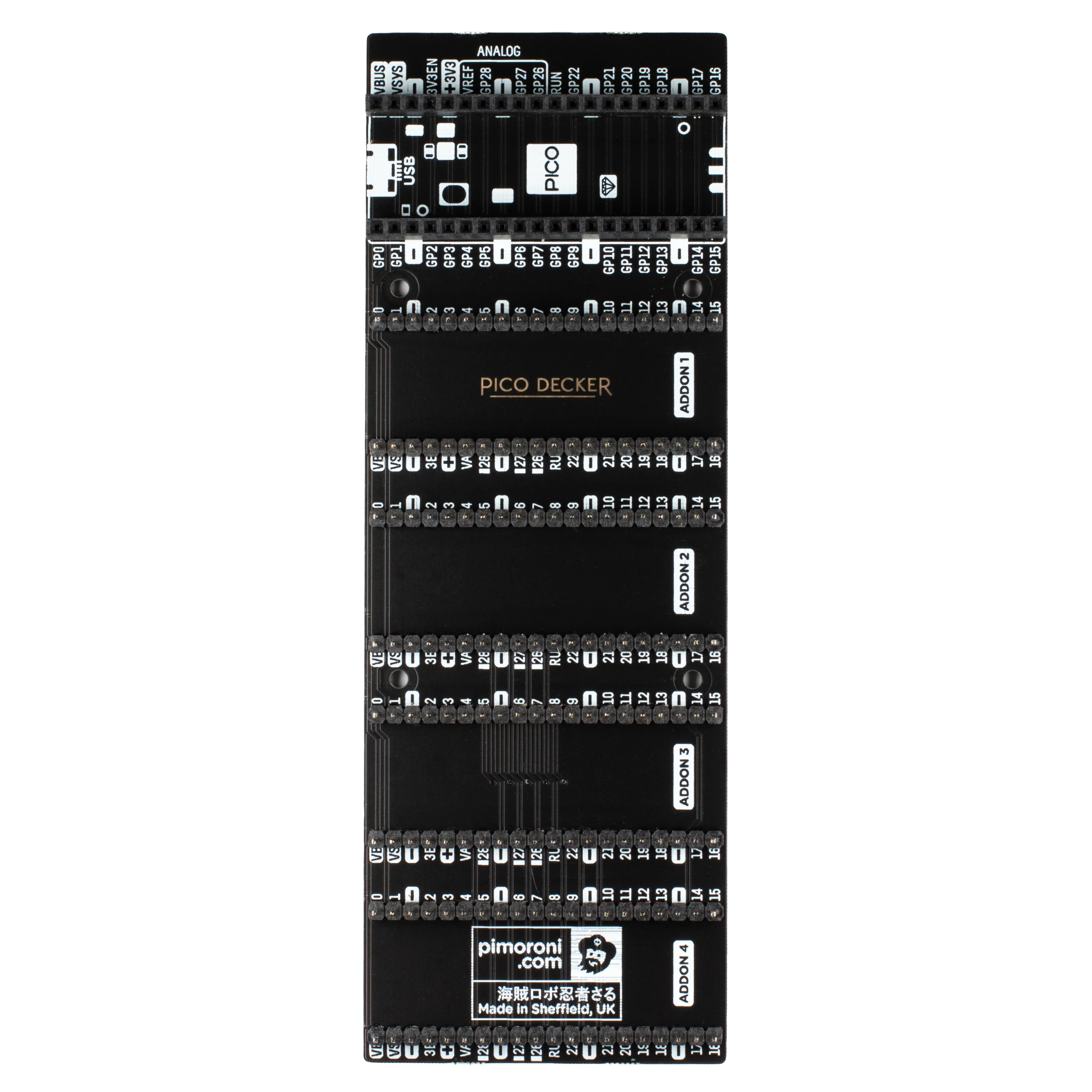

• One landing area with labelled female headers for attaching to your Pico.

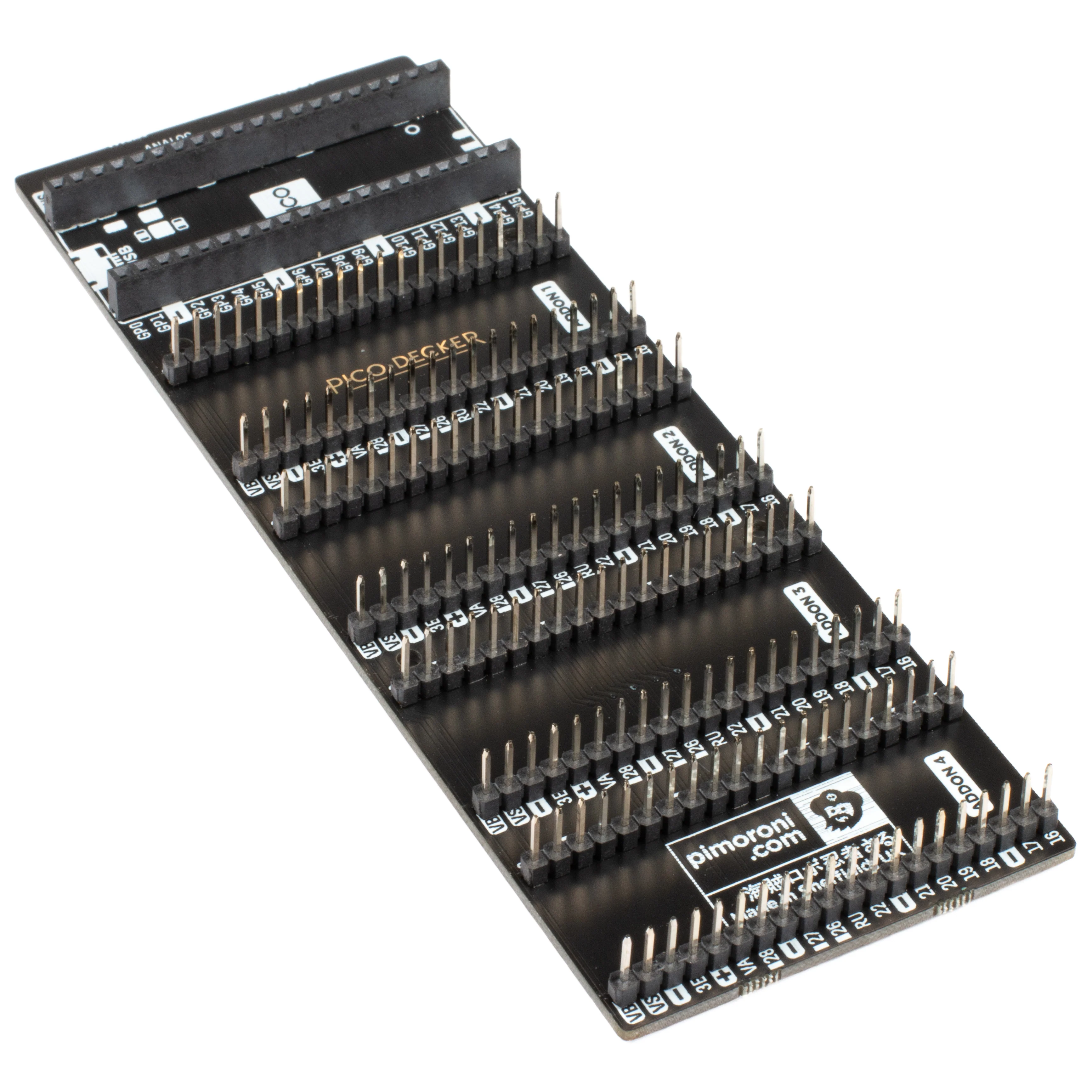

• Four landing areas with labelled (mirrored) male headers for attaching add-ons.
• 4x M2.5 mounting holes.
• 4x rubber feet
• Compatible with Raspberry Pi Pico.
• 99% assembled - just need to stick on the feet!
• No soldering required.
• Dimensions: approx 148mm x 52mm x 13mm (L x W x H, including feet and headers)

Notes

• * You'll need to check for data pin conflicts when using multiple Pico add-ons - the shop page for the add-on in question will list what pins it uses.
• * If you need to plumb a Pico Base into Pico Decker, you'll probably want to do it via some male-female jumper jerky to keep things manageable and to stop everything from being quite so upside-down!

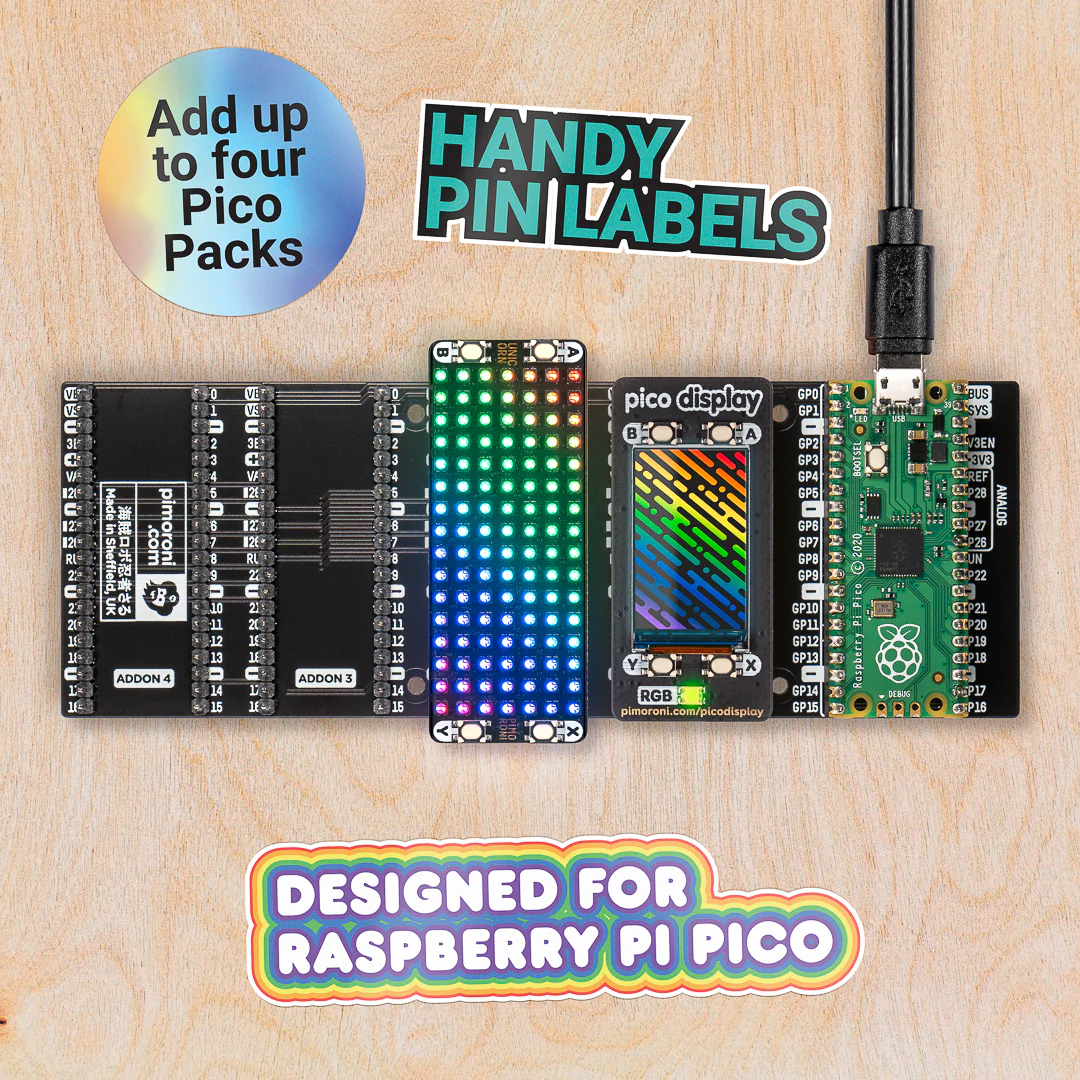

• The Pico Packs shown in the photo are not included.

About Raspberry Pi Pico

Raspberry Pi Pico is a flexible, low cost microcontroller development board from the folks at Raspberry Pi, based on their very own chip - the RP2040. It's easily programmable over USB with C/C++ or MicroPython, and ideal for using in all sorts of physical computing projects, devices and inventions - we're so excited to see what you make with it!

We've called our Pico-sized add-ons packs, as they're designed to attach to the back of your Pico as if it were wearing a very stylish back pack (or a miniature jet pack, if you prefer). We've also got Pico bases (larger add-on boards with a space to mount your Pico on top) and some other boards that let you do interesting hackerly things like using multiple packs at once - click here to view them all!

Your Pico will need to have male headers soldered to it (with the pins pointing downwards) to attach to our add-on boards.
