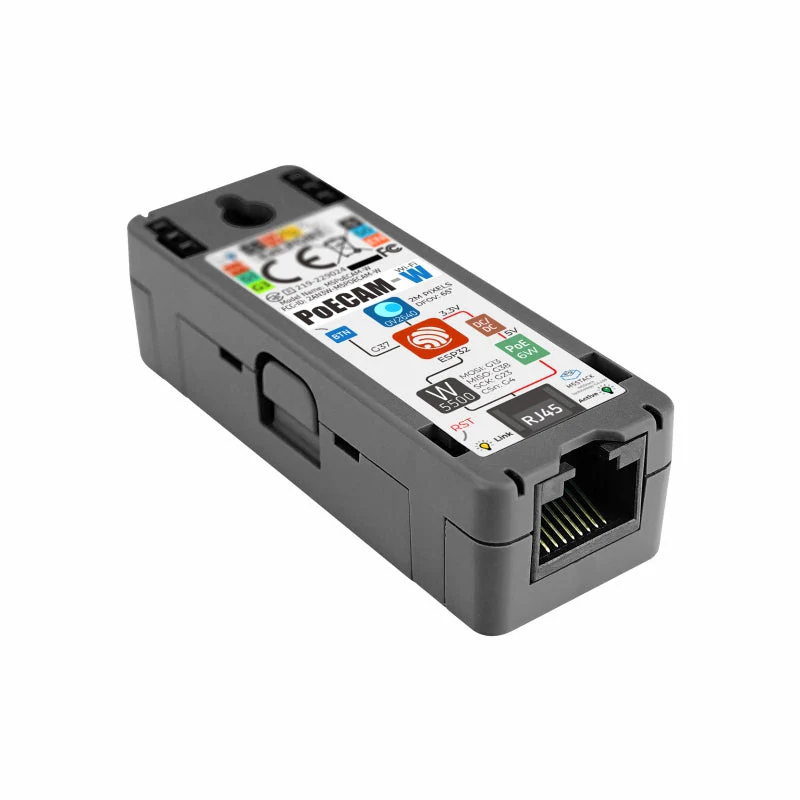

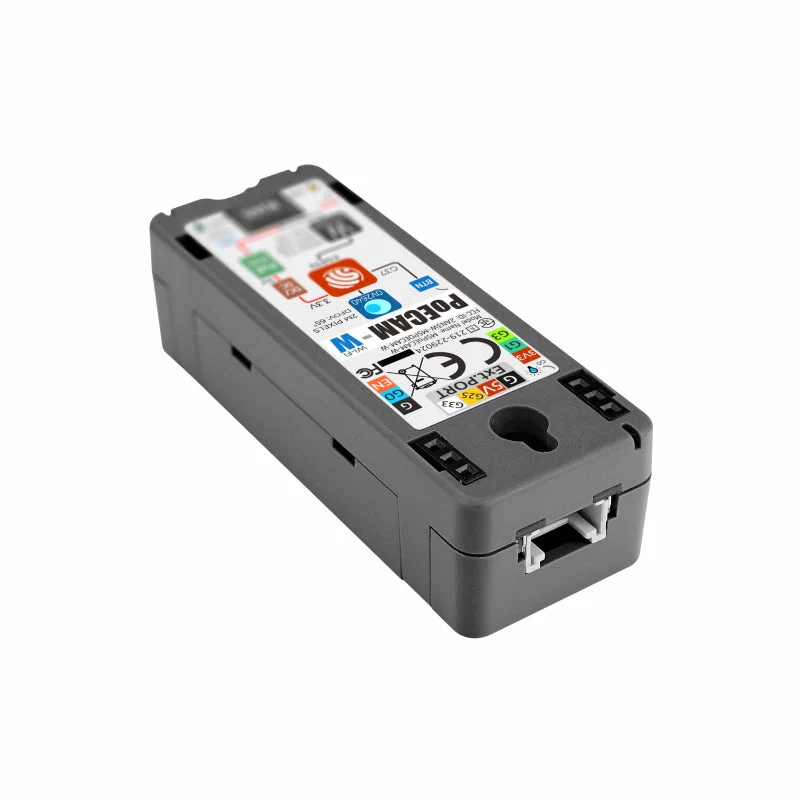

PoECAM-W is an open source fully programmable camera integrating PoE (Power Over Ethernet) and Wi-Fi.

This is an ESP32 based webcam with W5500 embedded Ethernet controller, plus 2M pixel image sensor OV2640. PoECAM-W is equipped with a combination of 8MB PSRAM + 16MB Flash large memory. This teeny tiny with flexible power supply, you can get stable image by connecting the network cable in just 2 steps. It's wonderful for you to monitor warehouse, auto image acquisition, etc.

Features

• Built-in ESP32 MCU（support WIFI）
• 2 million pixel camera 0V2640
• Ethernet chip W5500
• LAN speeds up to 10M or 100M (depending on the line provided)
• PoE IEEE802.3 AF specification（Maximum power 6W）
• Built-in prompt LED light
• Development platform:Arduino、ESP-IDF
• Ethernet standard interface RJ45

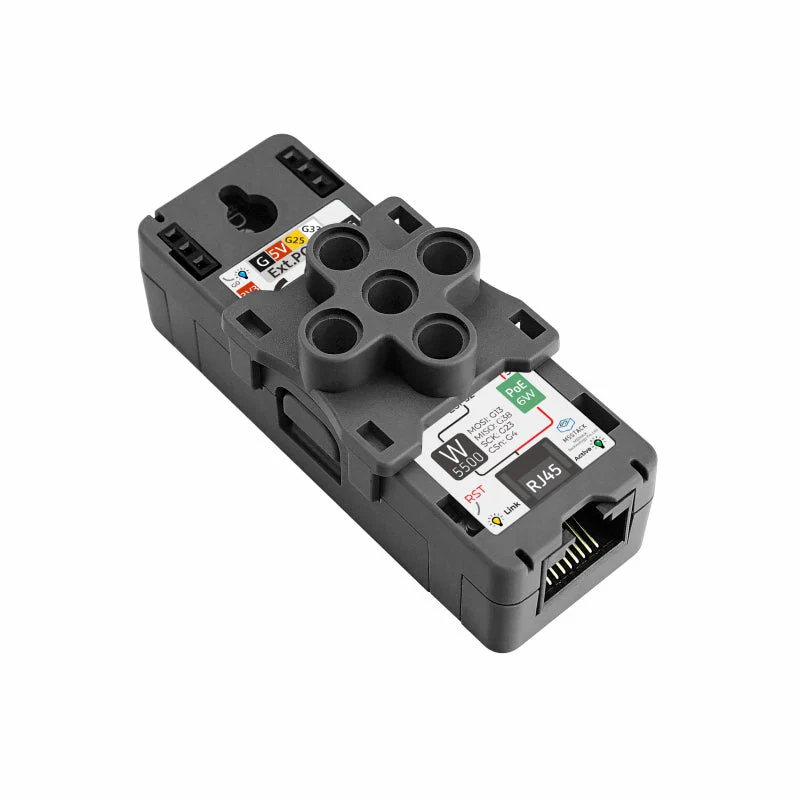

• Standard LEGO interface and camera mount

Includes

• 1 x PoECAM-W

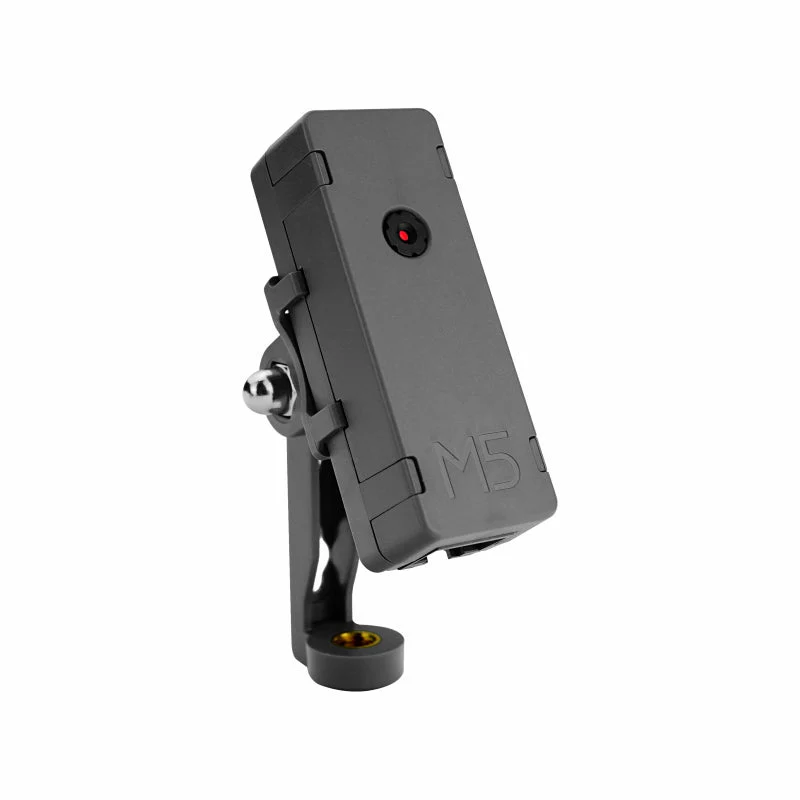

• 1 x Camera mount clip
• 1x Brick compatible clip

Applications

• Warehouse monitoring
• Timed photograph
• Machine vision
• Smart home monitoring

Specification

Resources	Parameters
MCU	ESP32-D0WDQ6-V3
Camera Module	OV2640
Ethernet Chip	W5500
FLASH	16MB
PSRAM	8MB
Pixel Size	2.2 µm x 2.2 µm
Automatic image control functions	Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)
Supports Hardwired TCP/IP Protocols	TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
DFOV	65°
Output Formats（8-bit）	• YUV(422/420)/YCbCr422 • RGB565/555 • 8-bit compressed data • 8-/10-bit Raw RGB data
Ethernet interface specifications	RJ45
MAXIMUM POWER	6W
Product Size	64mm × 24mm × 18mm
Package Size	80mm × 37mm × 32mm
Product Weight	38g
Package Weight	45g

Documentation

• ESP32
• OV2640
• W5500
• Easyloader

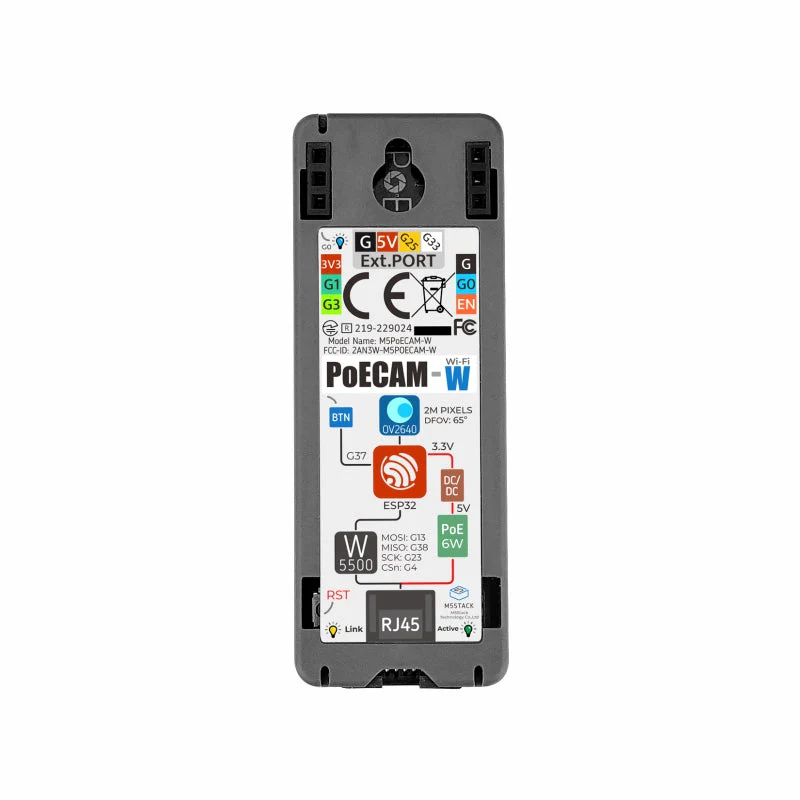

• PoECAM-W PinMap
• Schematics and Examples
