LTE 4G Antenna

These 4G-compatible antennas with SMA connectors are perfect for using with our Clipper 4G LTE Breakout.

There's four kinds of antenna to choose from:

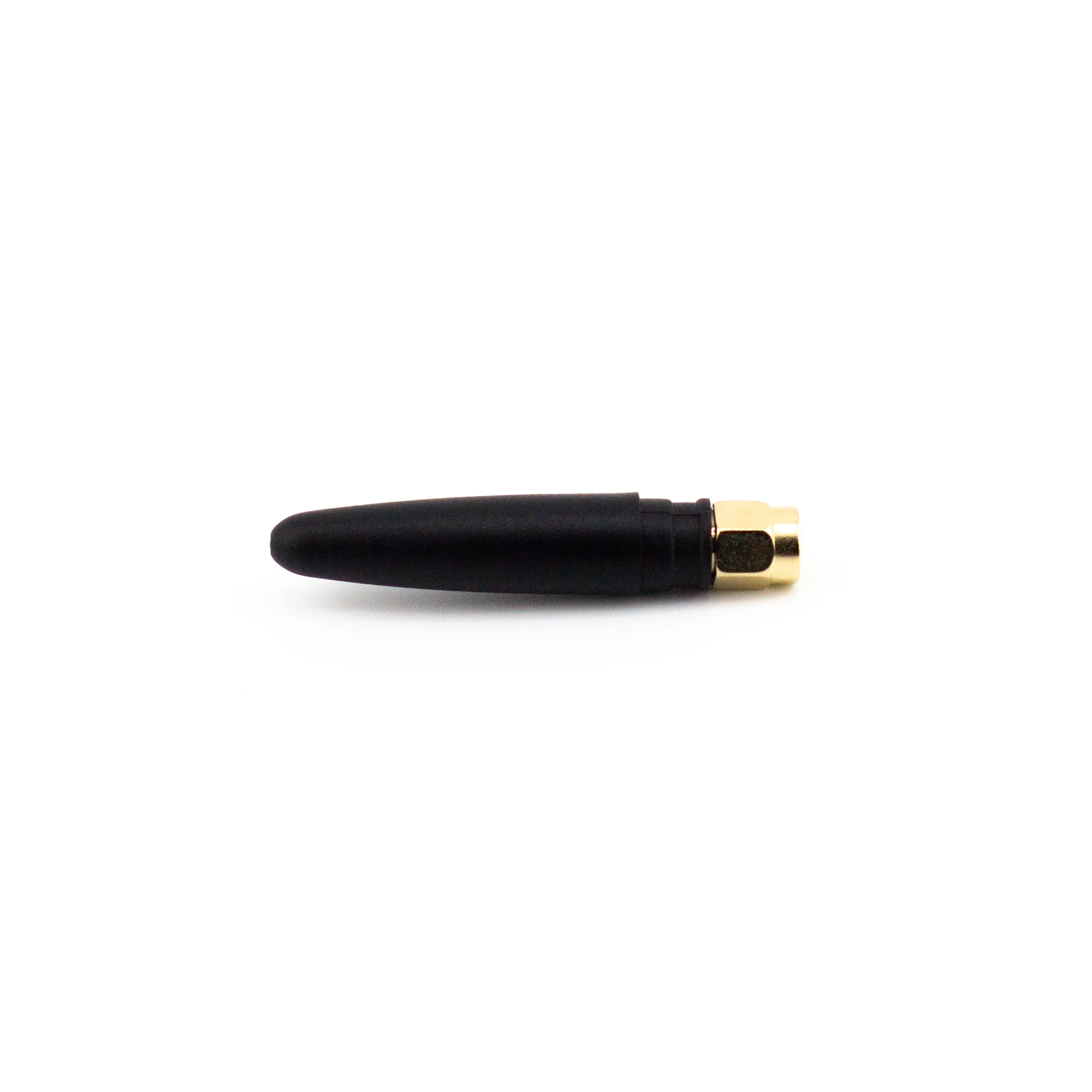

  • Short stick - these have a fixed vertical angle so consider picking up a right angle adaptor if you want it to point out of the side of your board.

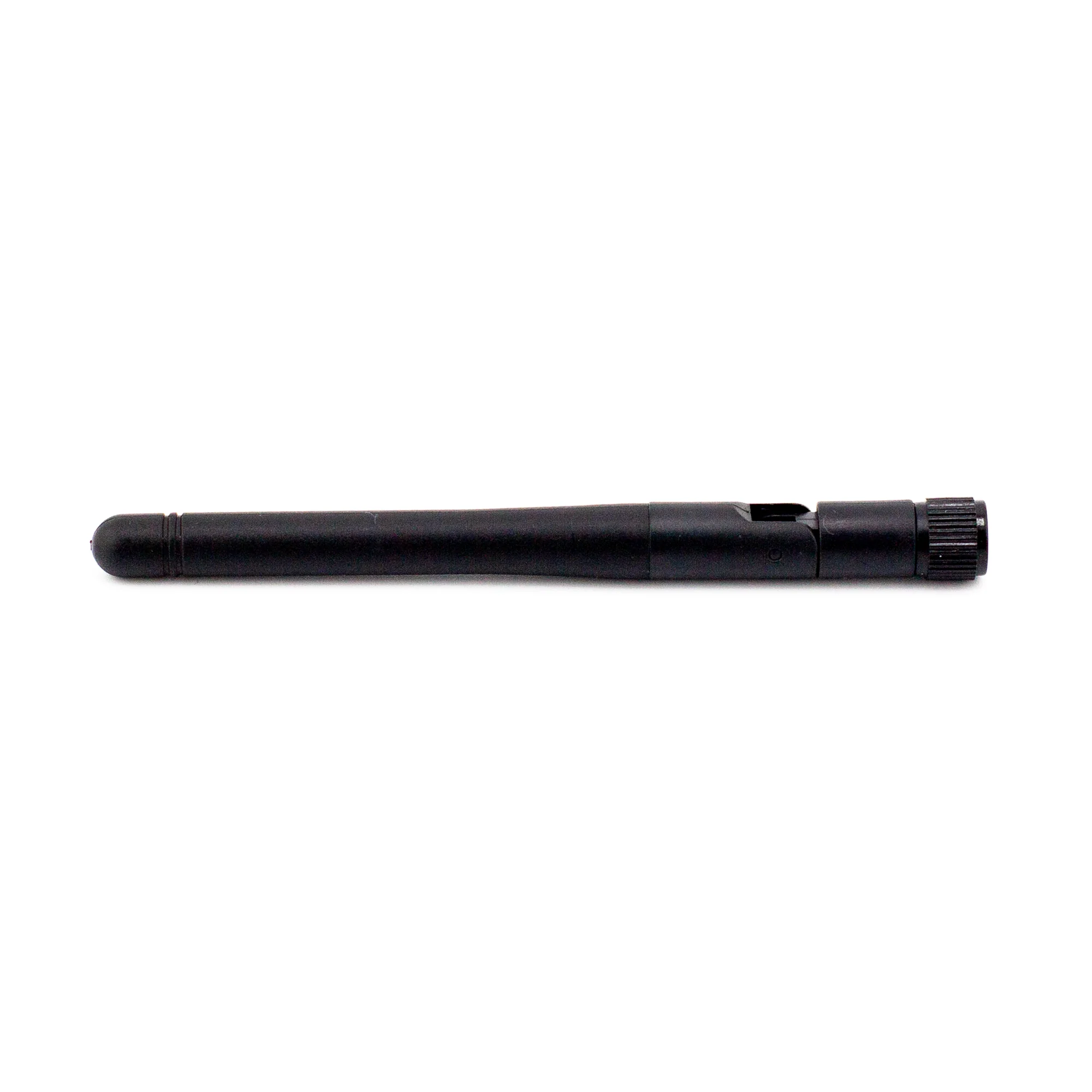

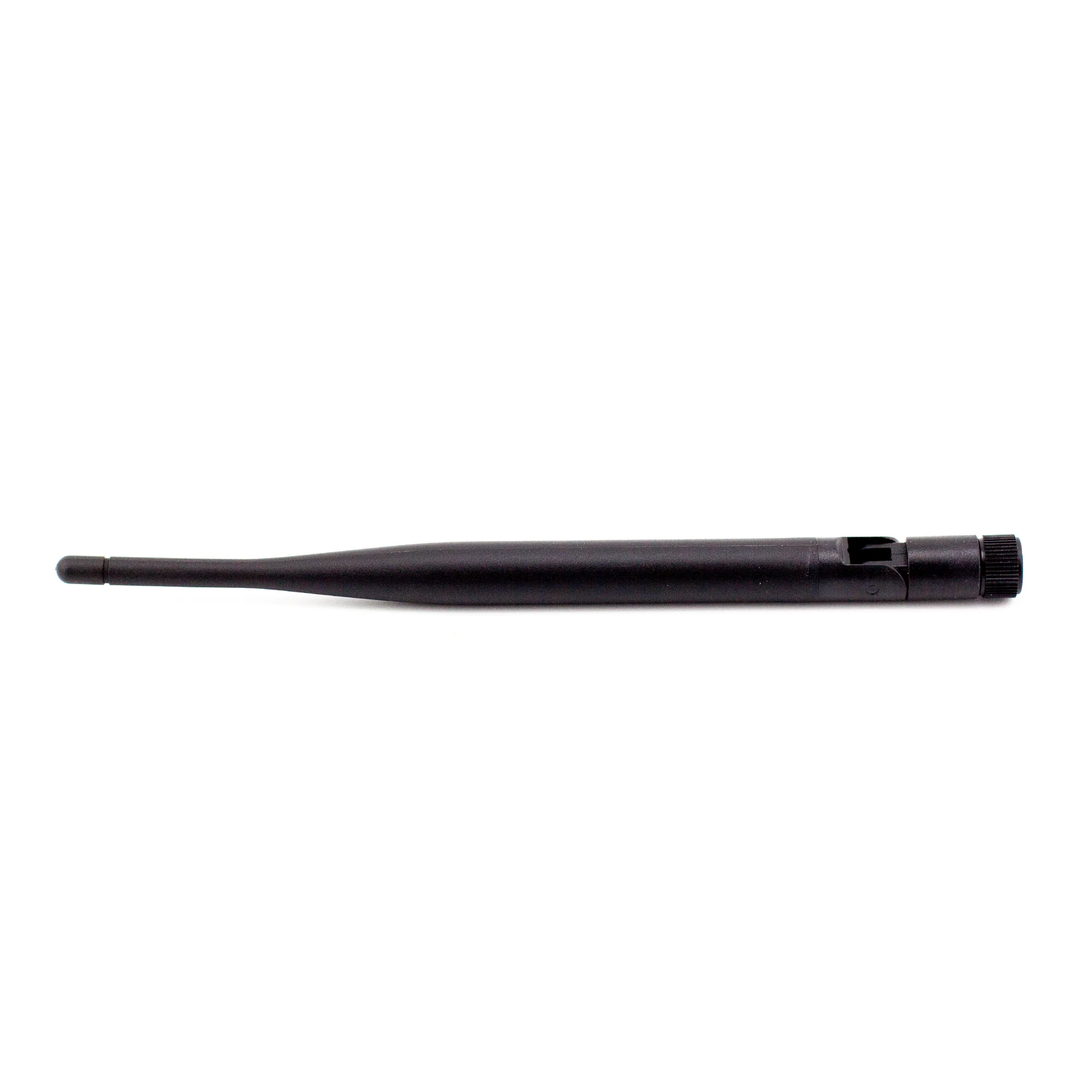

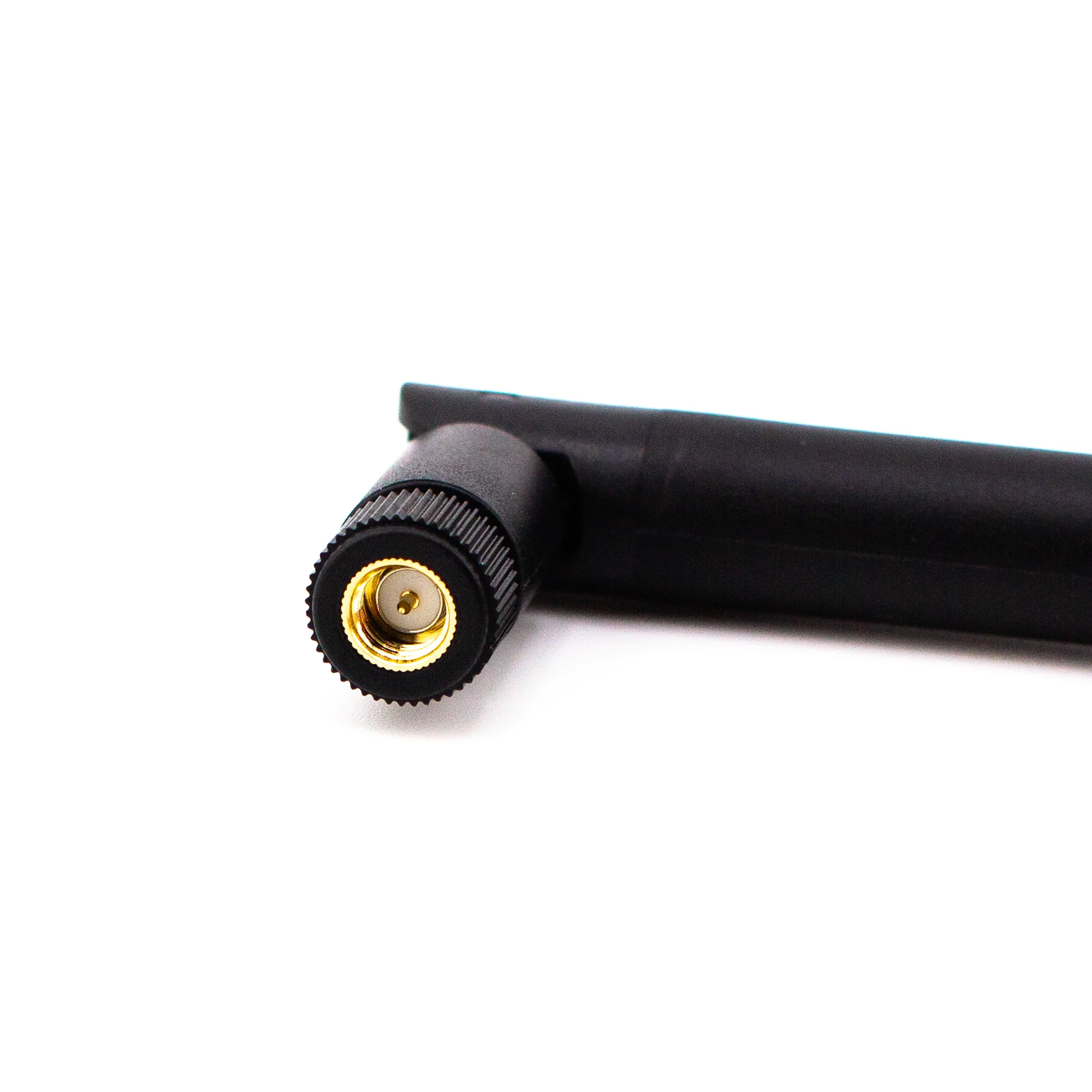

  • Medium and long stick - these are jointed so you can adjust the angle.

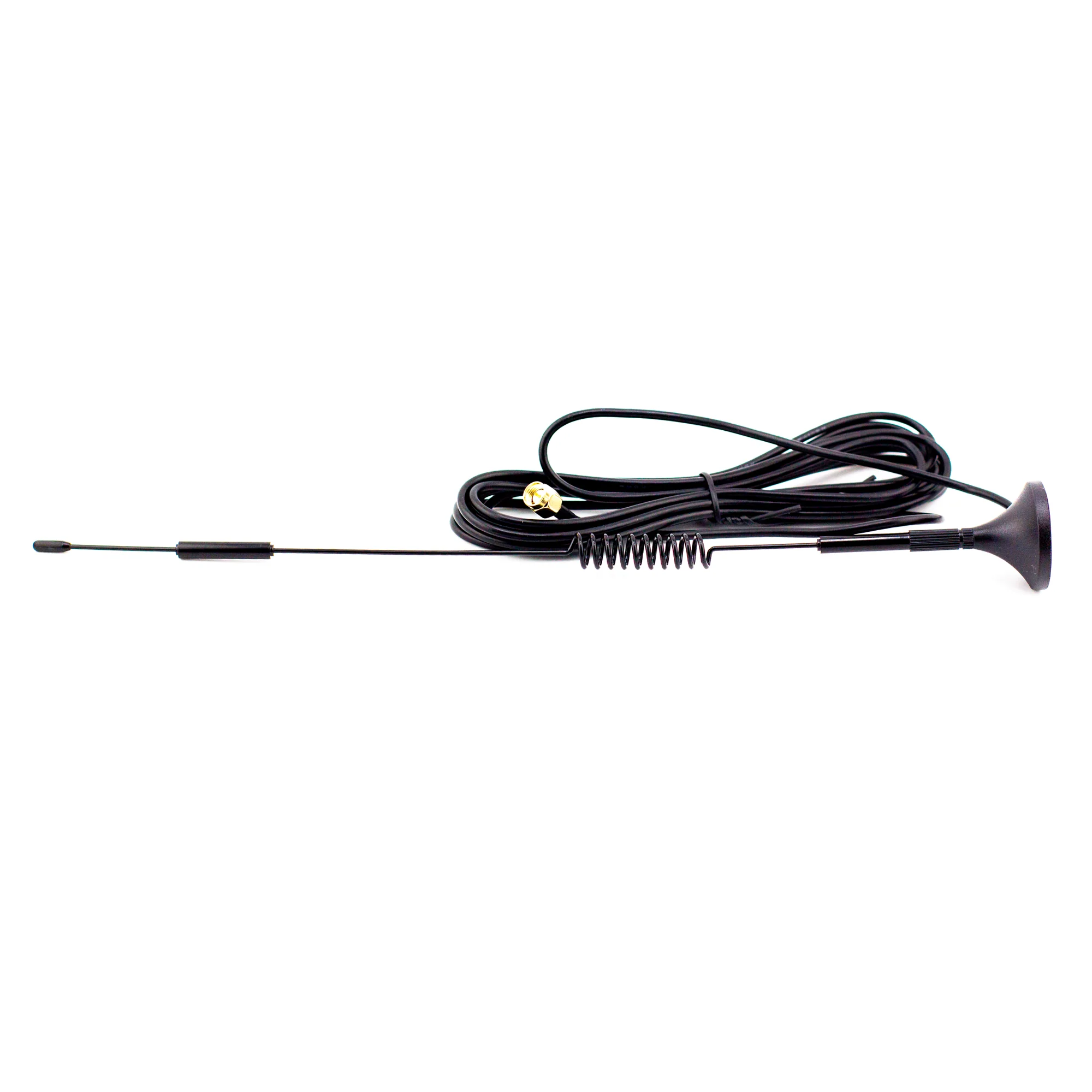

  • Long magnetic with cable - these ones have a 3m cable attached to the end and a magnetic base so you can easily stick it on to metal surfaces.

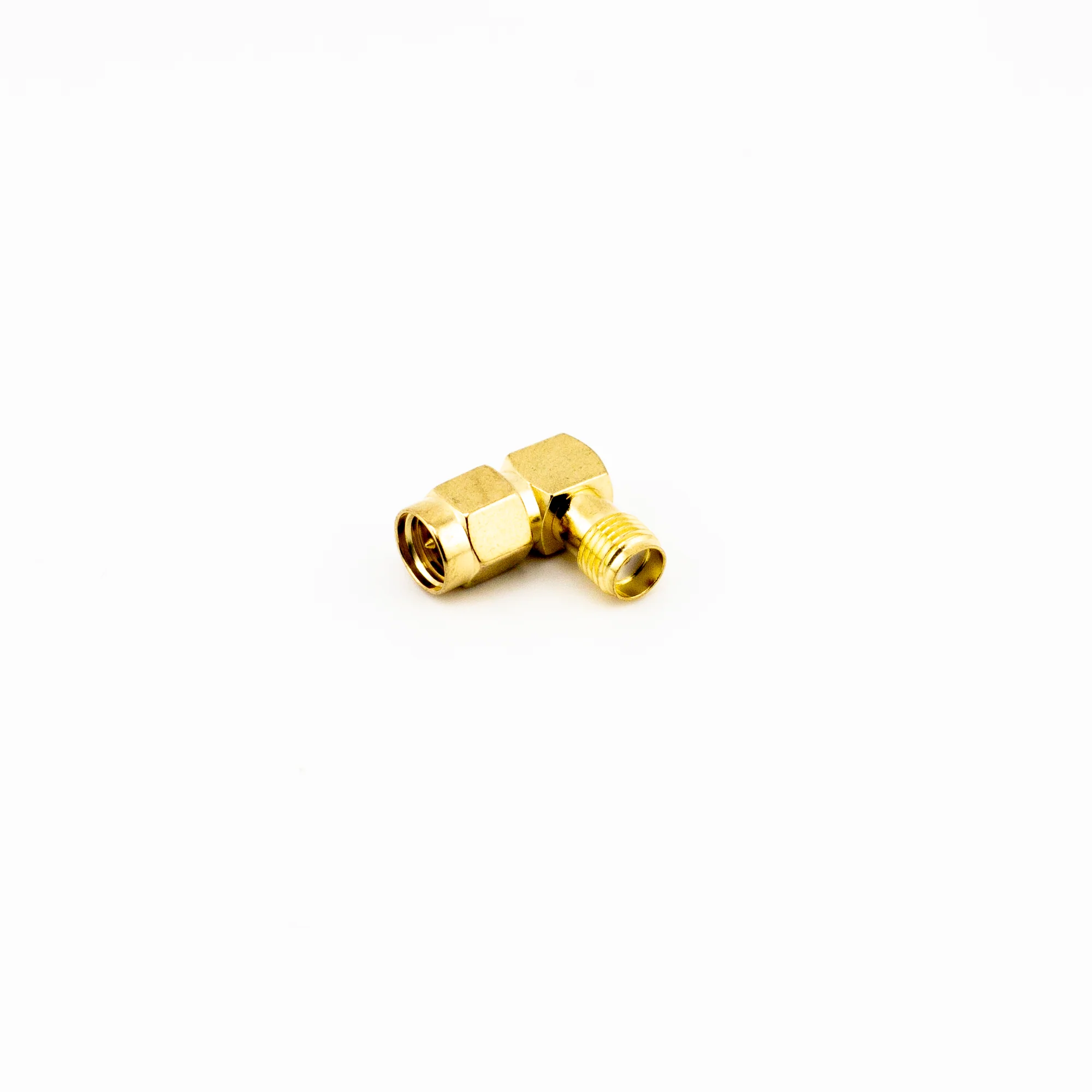

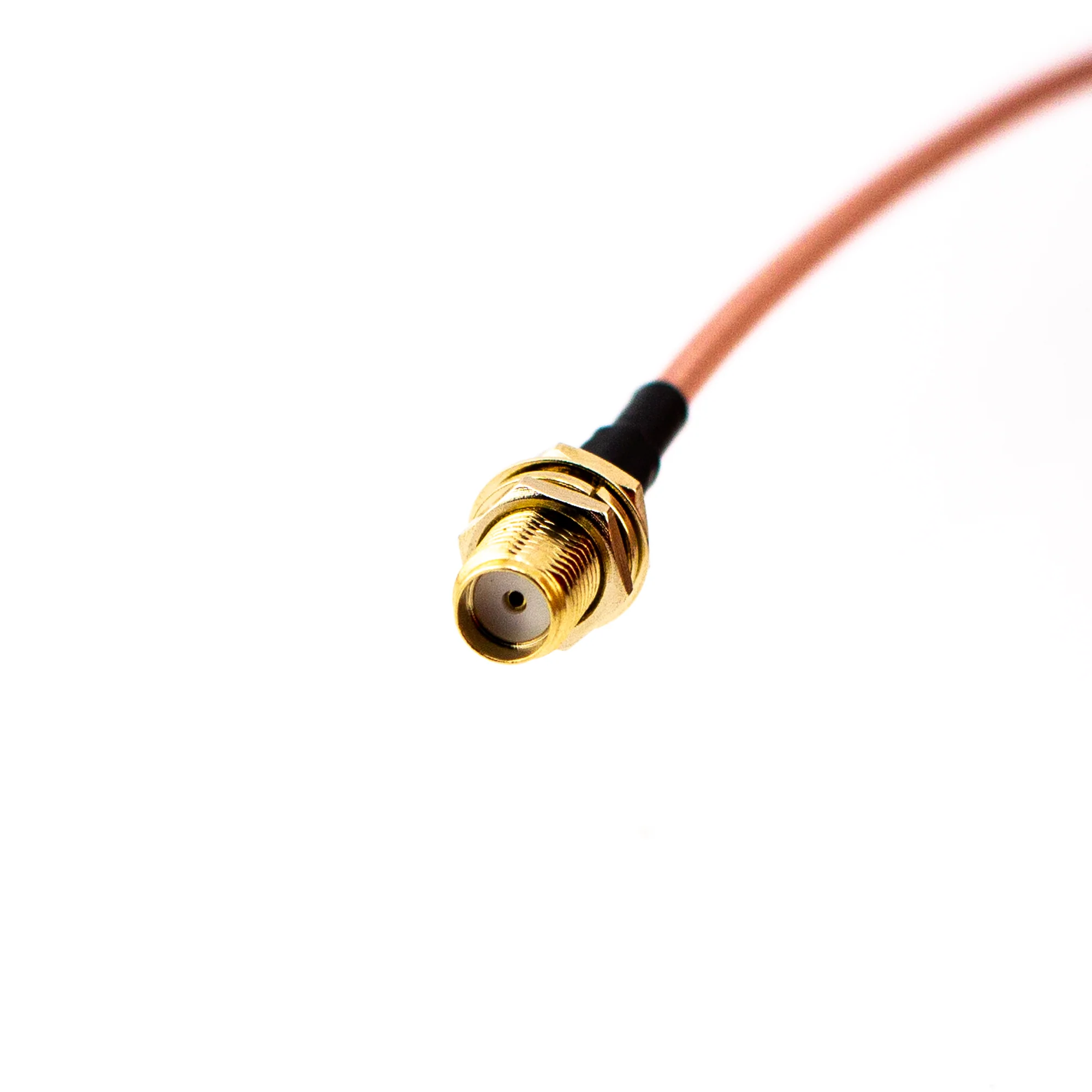

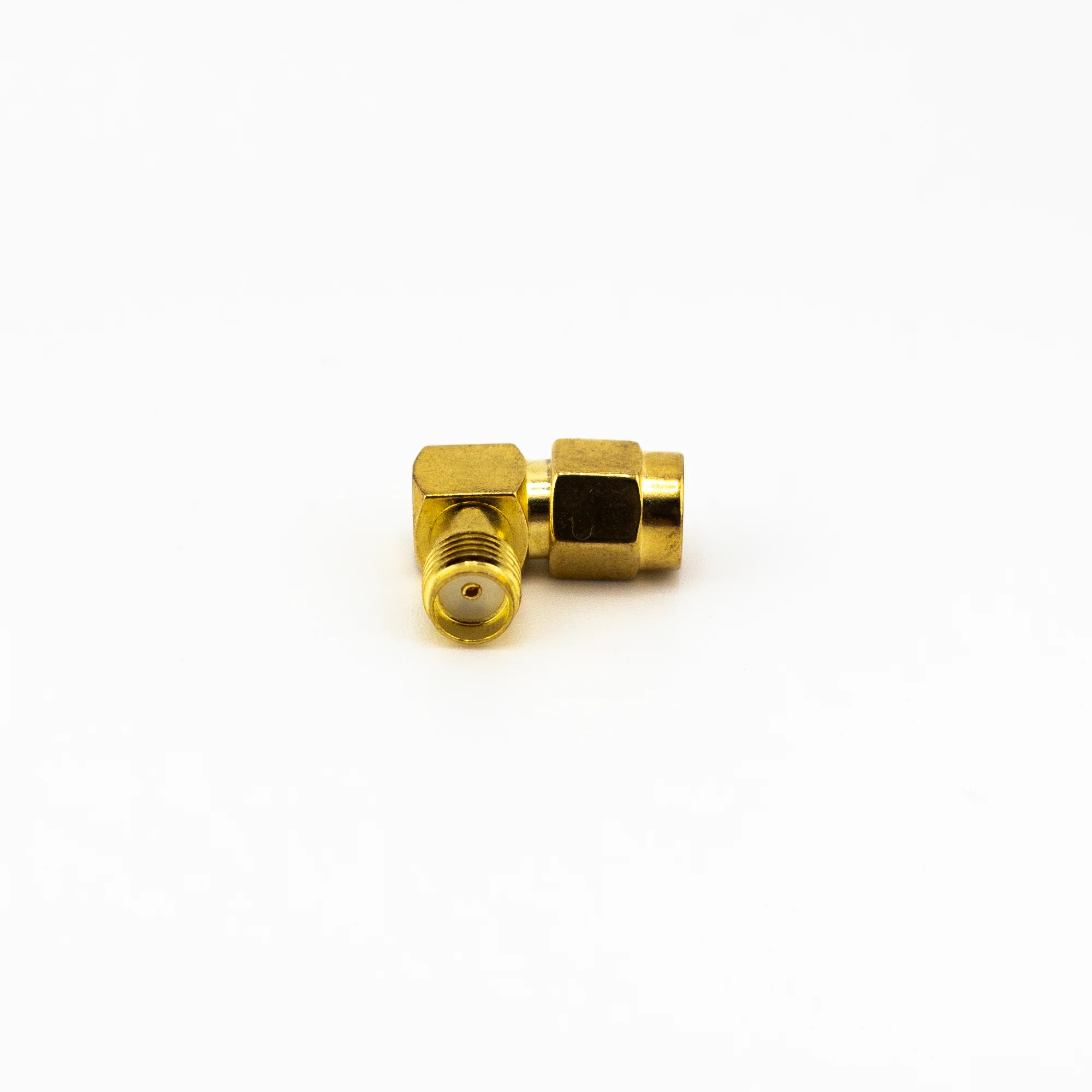

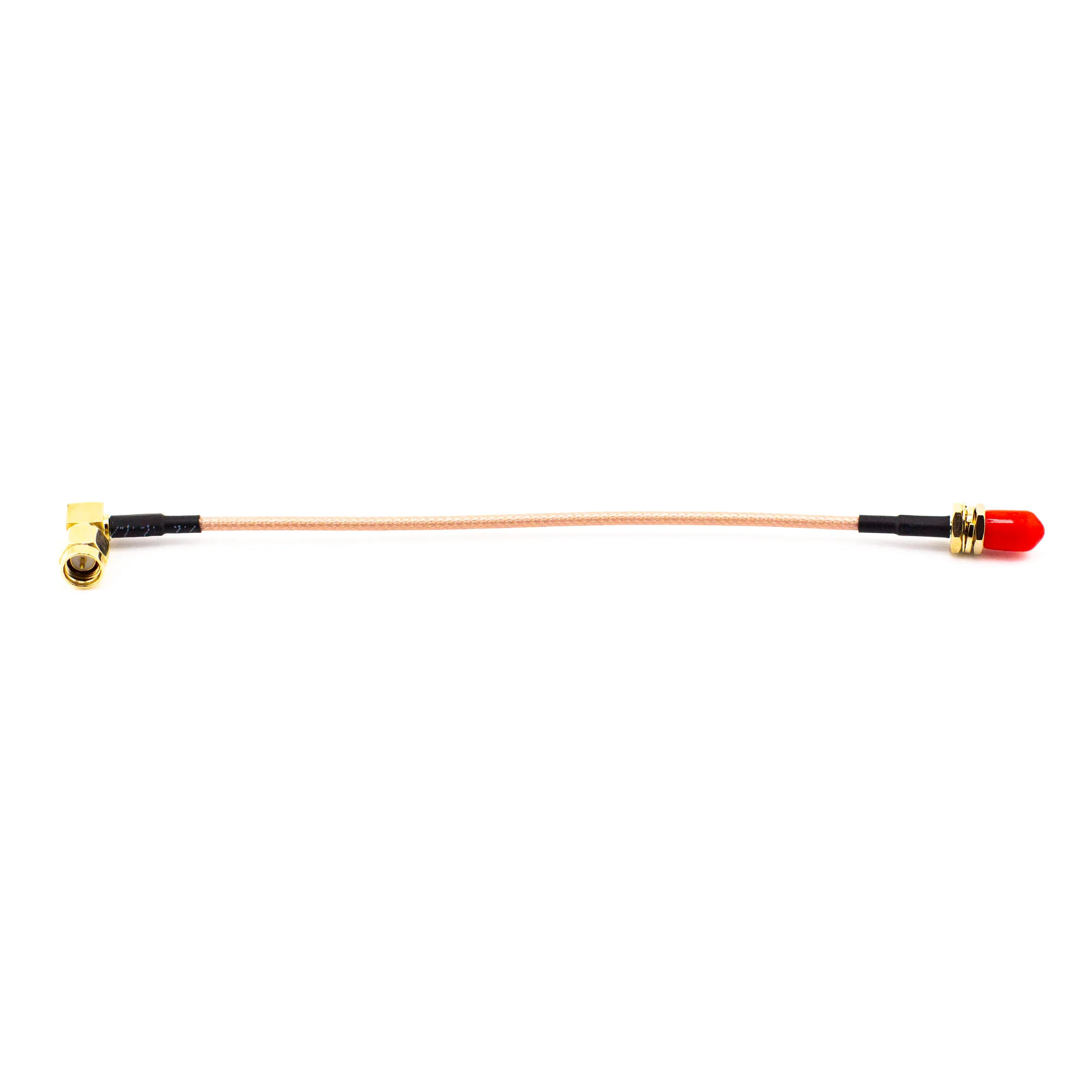

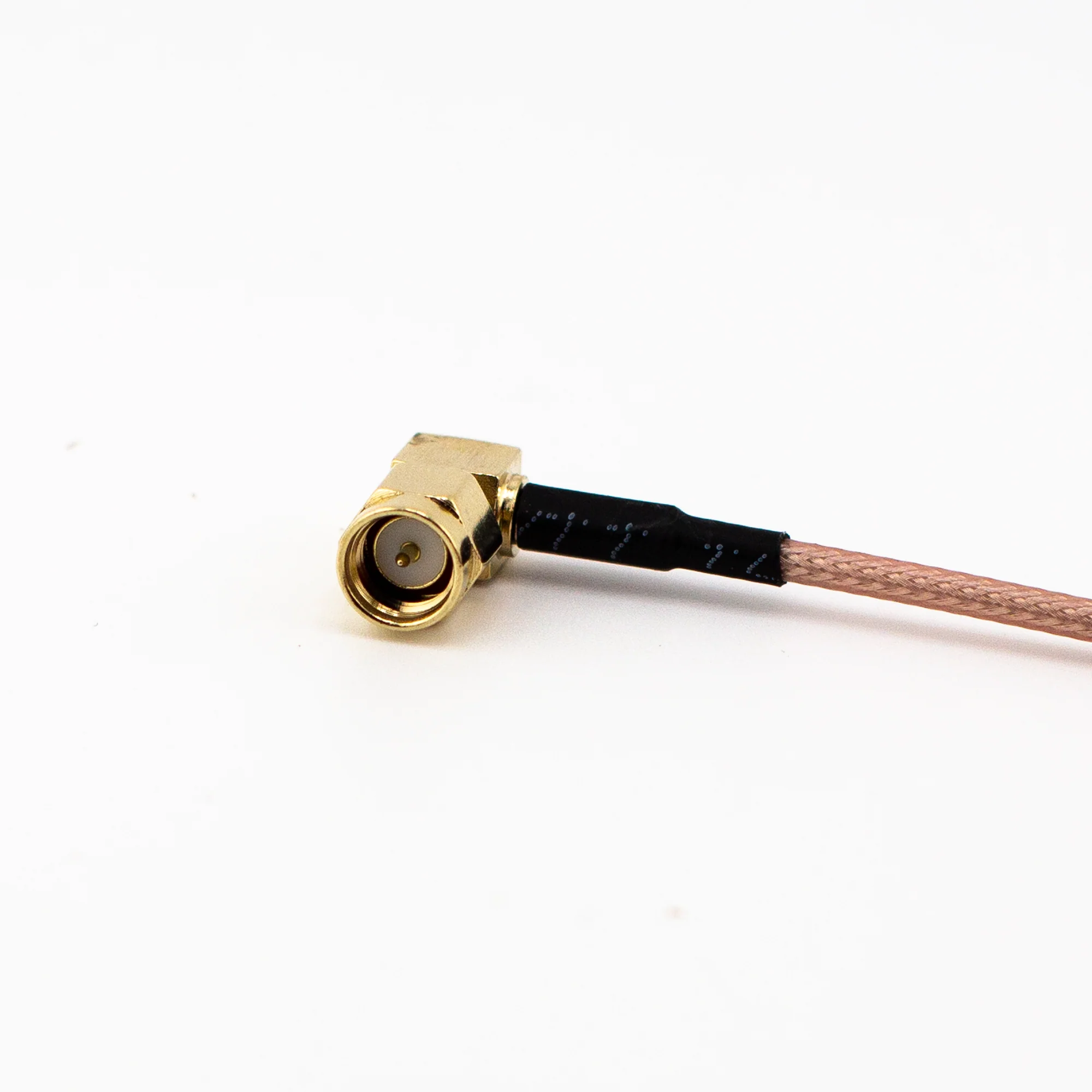

We also have some handy adaptors - a right angle adaptor so you can have your antenna coming out of your board at a different angle, and a flexible right angle extension cable that might be useful for mounting your antenna outside of an enclosure.

 SKU Frequency Range
(MHZ)
 Impedance(Ω) Gain(dBi) Drawing Length (mm)
COM0643 700-2700 50 2±1 [link] 52
COM0642 700-2700 50 3±1 [link] 108
COM0641 700-2700 50 3±1 [link] 194
COM0640 700-2700 50 4±1 [link] 288



Select Variant
From $0.95

Original: $2.72

-65%
LTE 4G Antenna—

$2.72

$0.95

Product Information

Shipping & Returns

Description

These 4G-compatible antennas with SMA connectors are perfect for using with our Clipper 4G LTE Breakout.

There's four kinds of antenna to choose from:

  • Short stick - these have a fixed vertical angle so consider picking up a right angle adaptor if you want it to point out of the side of your board.
  • Medium and long stick - these are jointed so you can adjust the angle.
  • Long magnetic with cable - these ones have a 3m cable attached to the end and a magnetic base so you can easily stick it on to metal surfaces.

We also have some handy adaptors - a right angle adaptor so you can have your antenna coming out of your board at a different angle, and a flexible right angle extension cable that might be useful for mounting your antenna outside of an enclosure.

 SKU Frequency Range
(MHZ)
 Impedance(Ω) Gain(dBi) Drawing Length (mm)
COM0643 700-2700 50 2±1 [link] 52
COM0642 700-2700 50 3±1 [link] 108
COM0641 700-2700 50 3±1 [link] 194
COM0640 700-2700 50 4±1 [link] 288
