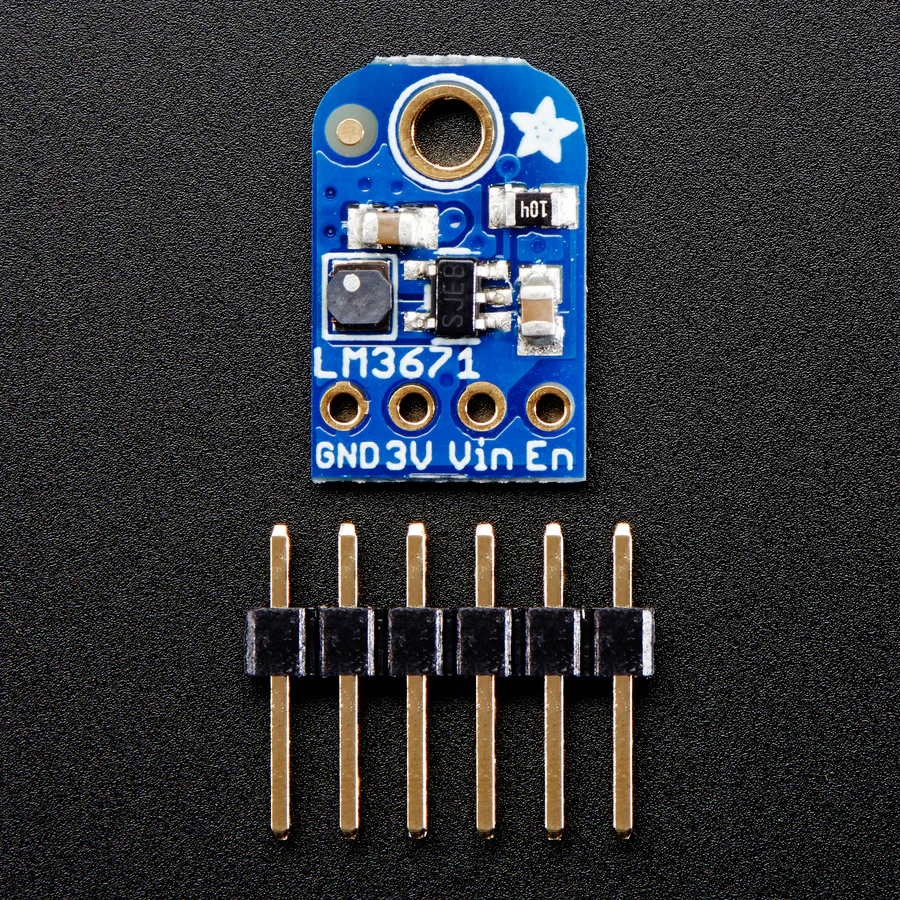

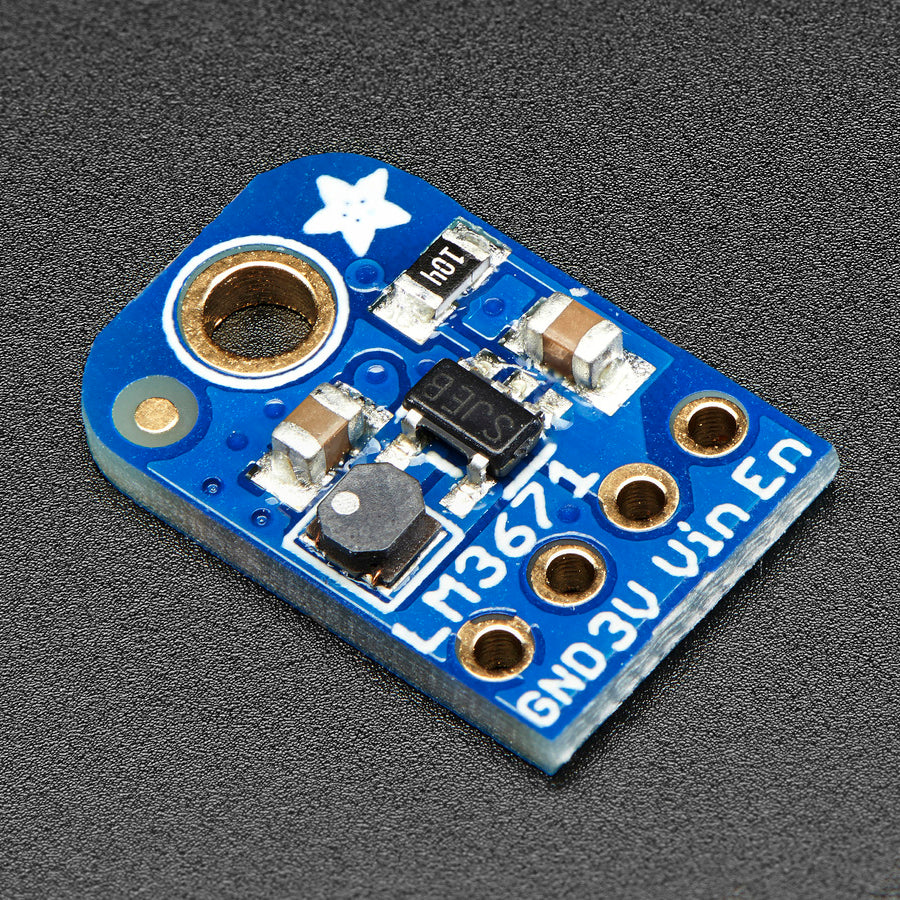

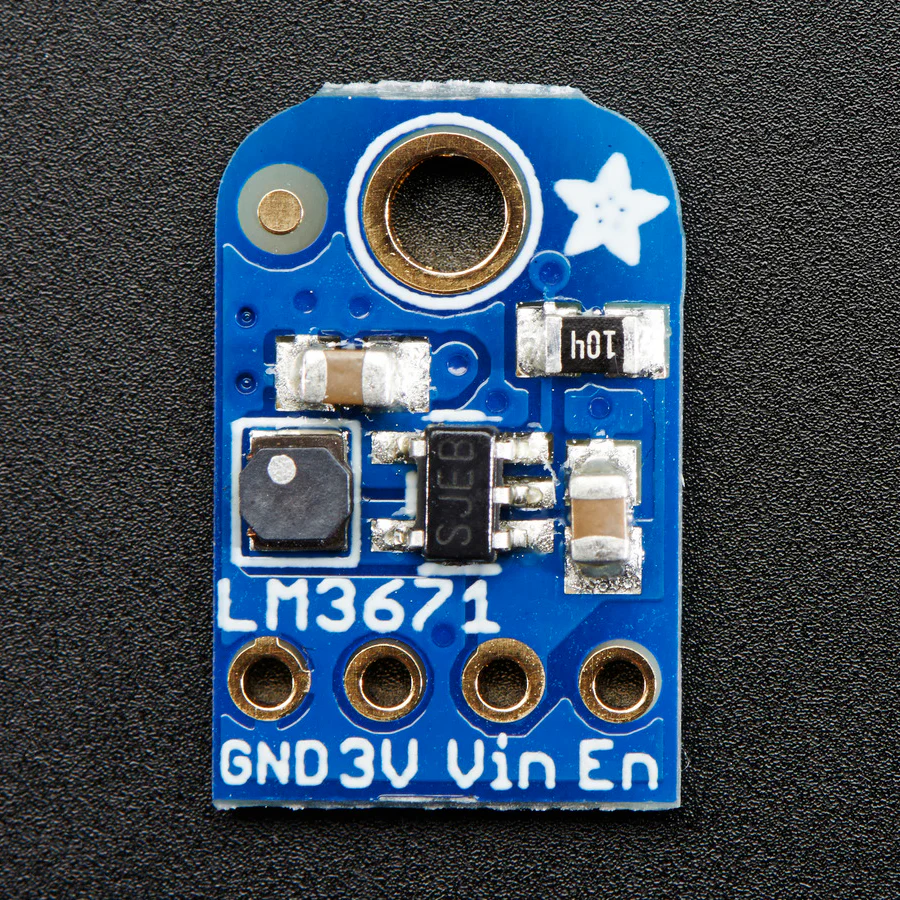

Your power supply problems just got SUPER SOLVED! This 3.3V Buck Converter Breakout board is great for supplying power to low voltage circuits from a single Li-Ion cell battery or USB power.

This chip provides up to 600-mA load current across the entire input voltage range of 3.5 to 5.5V.  Great for your portable project, we made this "pin compatible" with the LM1117-3.3V TO-220 chip so you can swap it in for better performance (90-95% efficiency!) There's also an ENable pin, tie it low to shut down the output completely.

There's a 2-MHz fixed-frequency in PWM mode and PFM mode extends the battery life by reducing the current during light load or standby operation.

Comes with a fully assembled and tested breakout board.  It also includes header to plug it into a breadboard.

TECHNICAL DETAILS

  Specifications:

• Weight: 0.9g

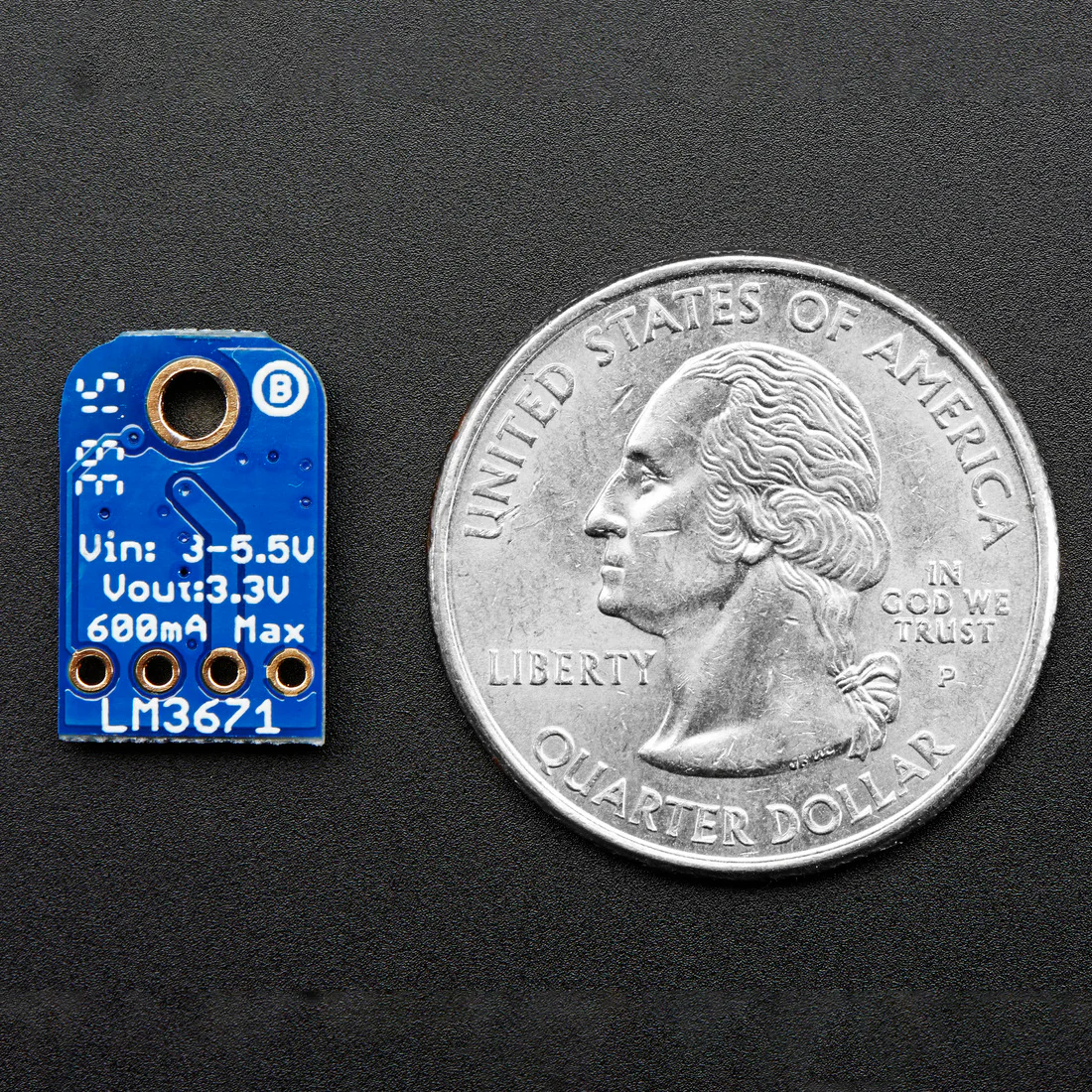

• Dimensions: 16mm x 10mm x 3mm / 0.6" x 0.4" x 0.1"
• Datasheet
• EagleCAD PCB Files on GitHub
• Fritzing object in the Adafruit Fritzing Library
