The LilyPad E-Sewing ProtoSnap is a great way to explore how buttons and switches behave in simple e-sewing circuits before crafting your project.

Like other LilyPad ProtoSnap series boards, the individual pieces of the board are pre-wired — allowing you to try out the function of the circuit before sewing. There is no programming required to use this ProtoSnap, and it can be used right away!

Included on the ProtoSnap:

• 1x LilyPad Coin Cell Battery Holder — Switched
• 1x LilyPad Slide Switch
• 1x LilyPad Button Board
• 3x LilyPad White LED

Included in the Package:

• 1x LilyPad E-Sewing ProtoSnap
• 1x Coin Cell Battery — CR2032

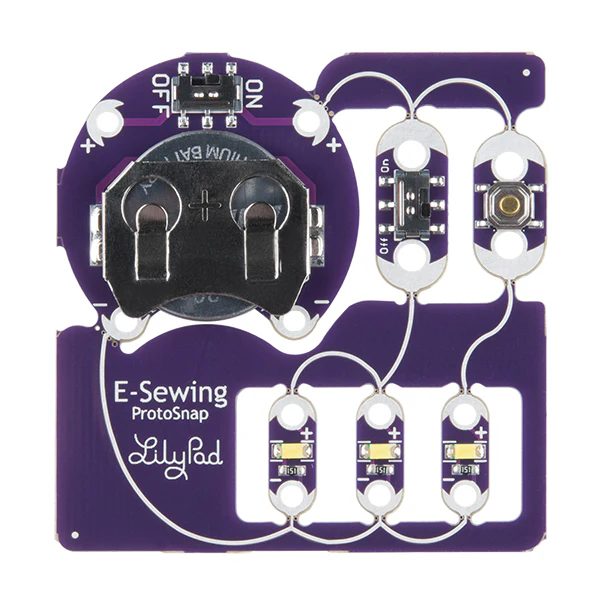

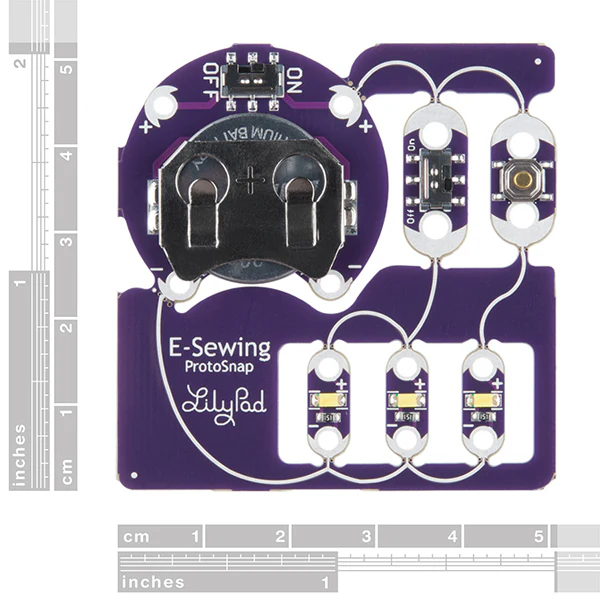

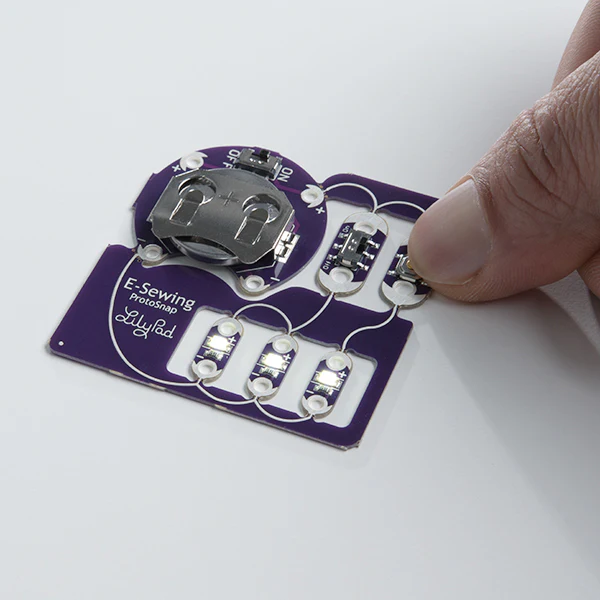

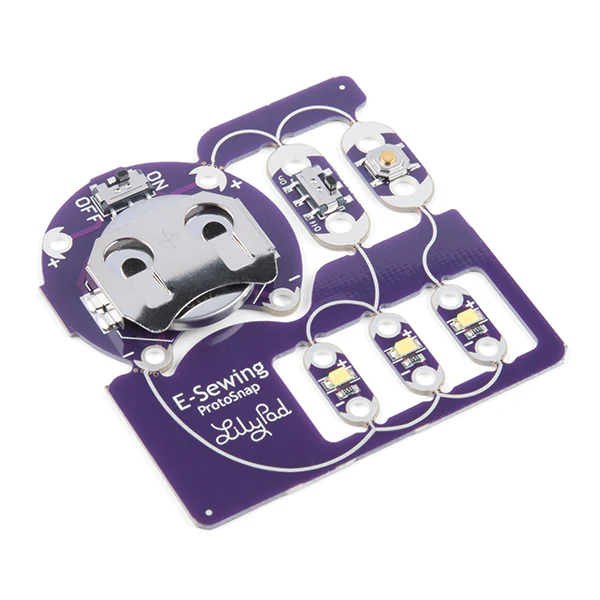

The E-Sewing ProtoSnap includes three white LilyPad LEDs: two connected to a LilyPad Slide Switch and one connected to a LilyPad Button Board. A LilyPad Coin Cell Battery Holder with a CR2032 coin cell battery provides all the power you need for the circuit. All you need to do is design how you want your project to be laid out, and then snap everything apart!

Note: A portion of this sale is given back to Dr. Leah Buechley for continued development and education in e-textiles.

Get started with the LilyPad E-Sewing ProtoSnap guide

Documents

• Schematic
• Eagle Files
• Hookup Guide
• E-Sewing Basics
• Firefly Template Download
• Robot Template Download
• Space Template Download
• Plush Cat Template Download
• LilyPad Portal
• GitHub
