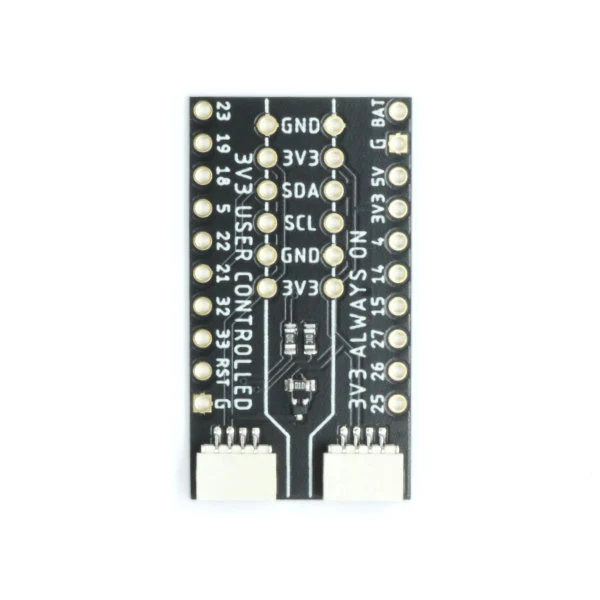

I2C Breakout Shield
I2C Breakout shield for the TinyPICO & TinyS2
The I2C Breakout shield offers 2 sets of STEMMA/QWIIC connectors and pin headers in 2 different 3v3 power rails.
The first has 3v3 power always on.
The second has user controlled 3V3 power that is off by default, so when you put your ESP32 into deep sleep, the 3V3 power for the I2C devices on that i2C bus get shut down automatically.
On the back of the board, you have solder jumpers to choose which IO to use for the 3V3 power control.
I2C Breakout Shield Pinout
Original: $7.81
-65%$7.81
$2.73Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
I2C Breakout shield for the TinyPICO & TinyS2
The I2C Breakout shield offers 2 sets of STEMMA/QWIIC connectors and pin headers in 2 different 3v3 power rails.
The first has 3v3 power always on.
The second has user controlled 3V3 power that is off by default, so when you put your ESP32 into deep sleep, the 3V3 power for the I2C devices on that i2C bus get shut down automatically.
On the back of the board, you have solder jumpers to choose which IO to use for the 3V3 power control.
I2C Breakout Shield Pinout
