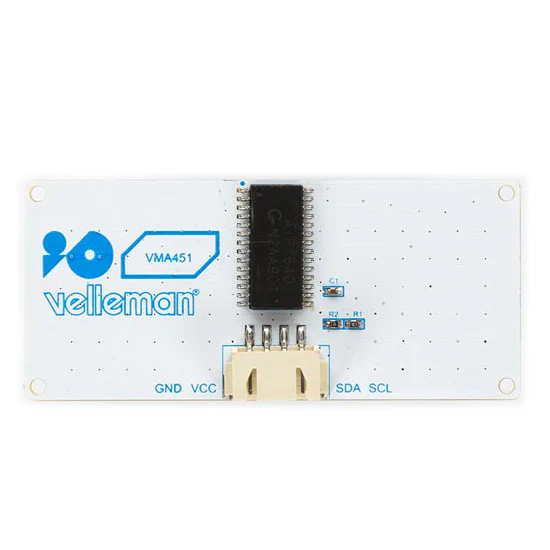

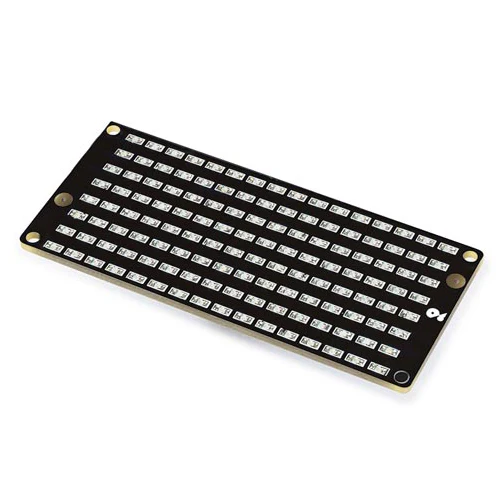

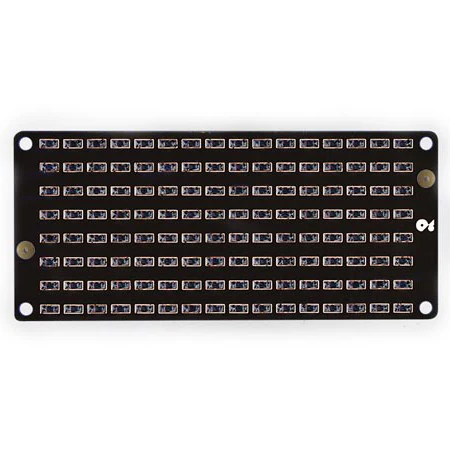

This module is an 8x16 LED matrix panel board that comes with a total of 128 blue LEDs and the AIP1640 chip mounted on the back so you can communicate via the I²C protocol.

You can easily connect this board with the included HW-2.54 4 pin cable (GND, VCC, SDA & SCL) to your development board or breadboard.

Light up your projects with this bright board!

Specifications

• operating voltage: 3.3 to 5 VDC
• operating current: max. 200 mA
• n° of LEDs: 128
• LED pitch: 4 mm
• communication: I²C
• chipset: AIP1640
• oscillation frequency: 450 kHz
• working temperature: -40 to 80 °C
• panel weight: 12 g
• dimensions: 72 x 32 x 8 mm (2.83 x 1.16 x 0.32 ")
