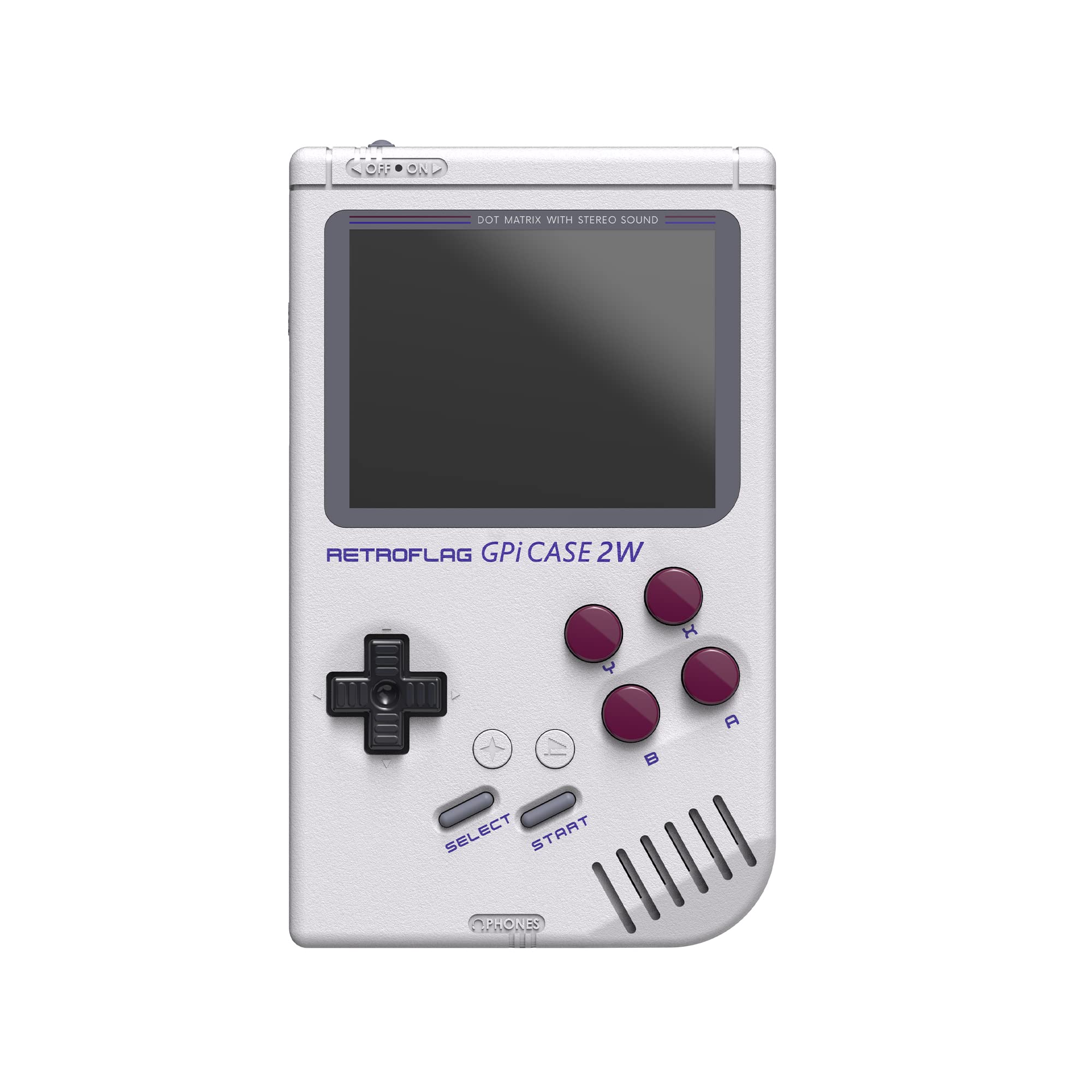

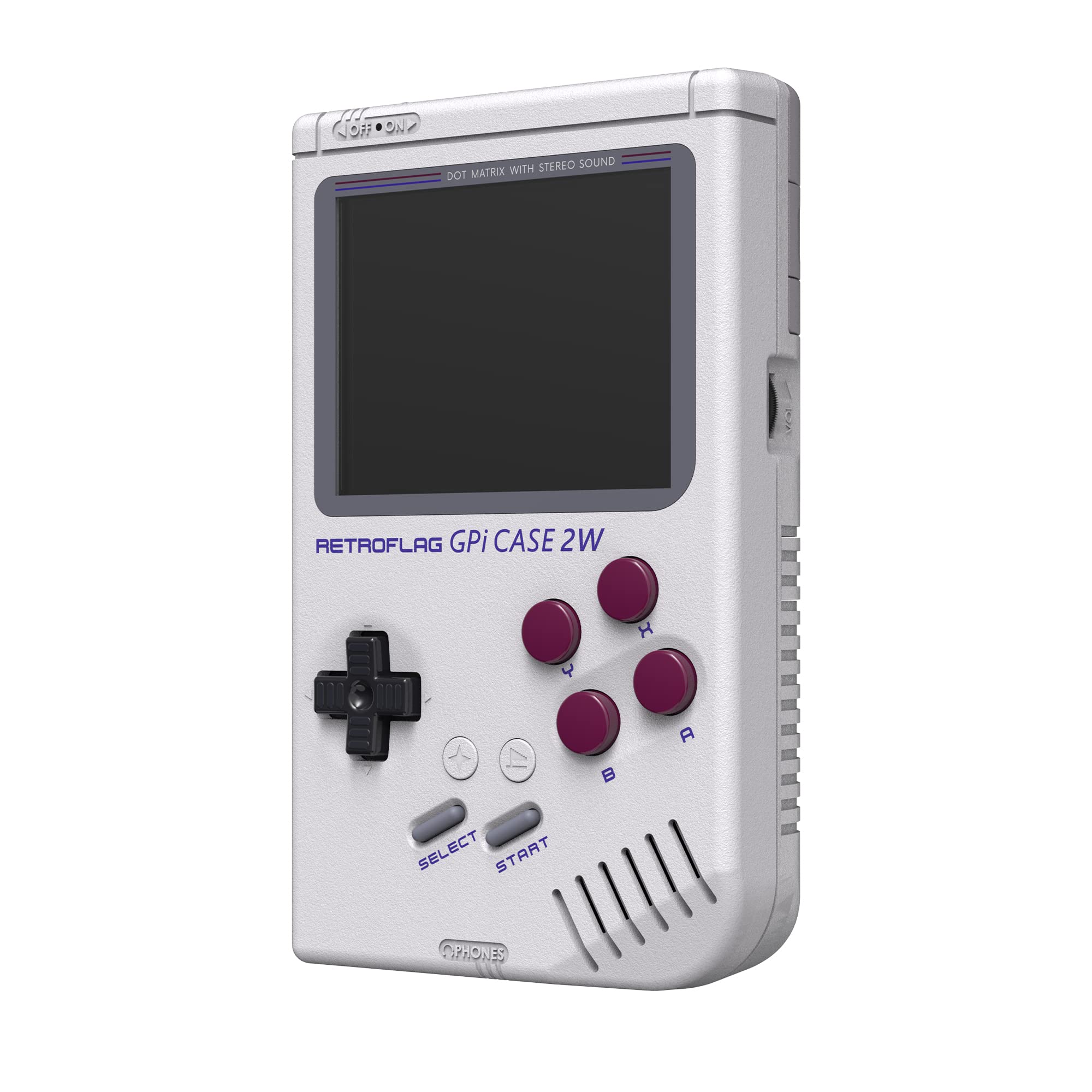

An homage to the classic 8-bit handheld game console, this Raspberry Pi Zero/W/2W case features a lush 3" LCD screen, extra X/Y buttons, hidden L/R shoulder buttons and a safe shutdown power button.

• 3.5mm audio port
• LED power indicator
• 3.0 IPS screen
• Game Boy inspired Raspberry Pi case
• Compatible with Raspberry Pi Zero, Zero W, Zero 2W
• Not compatible with Zero WH (with GPIO pins soldered)

Note that a Raspberry Pi Zero / W / 2W is not included.

Display Patch

You will need to install this display patch for Retropie and Recalbox for the display output to work correctly over GPIO.

• Download display patch

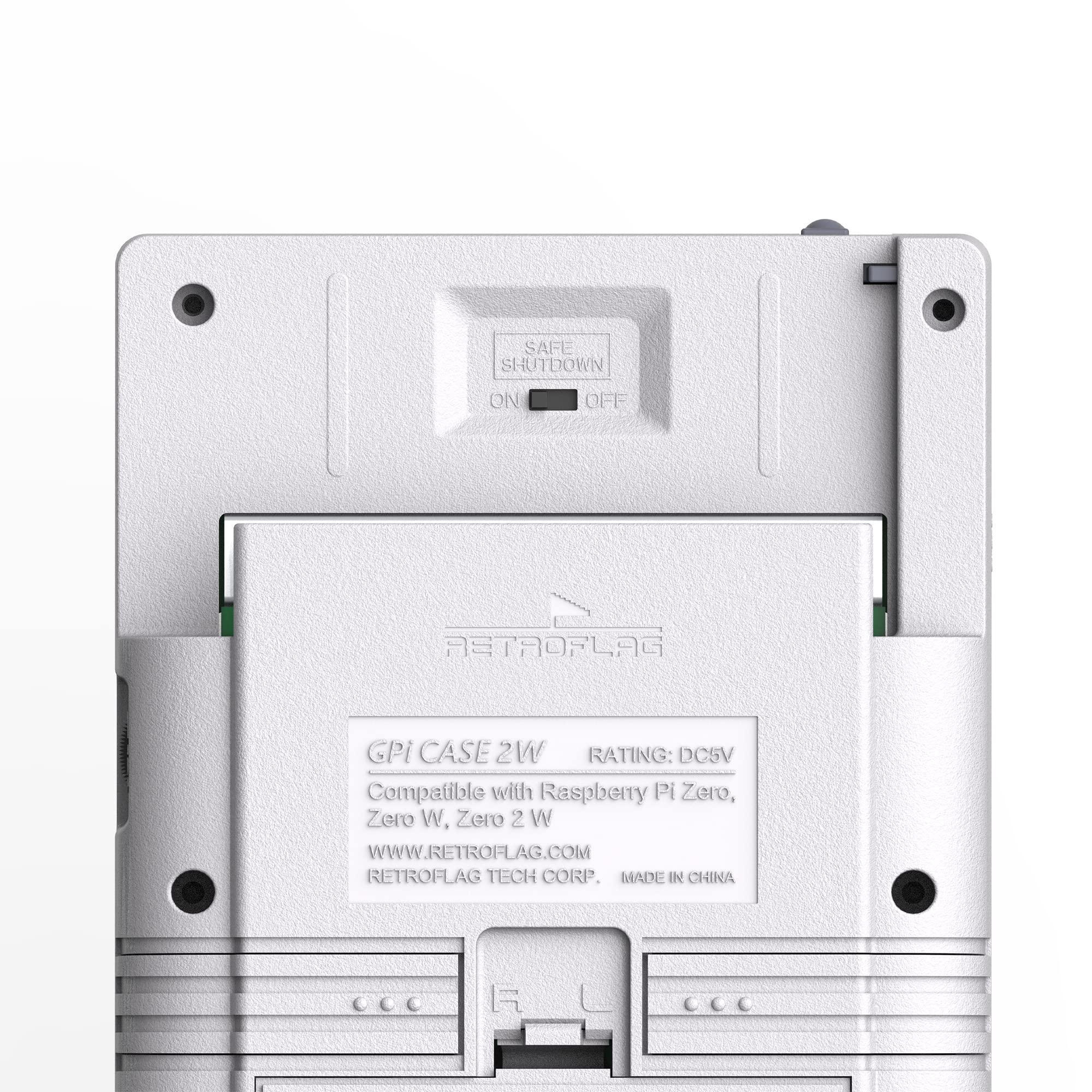

Safe Shutdown

To enable the safe shutdown function you will need to install these scripts.

• Download safe shutdown scripts

1. POWER Switch
2. DC power input
3. Brightness
4. Turbo¹

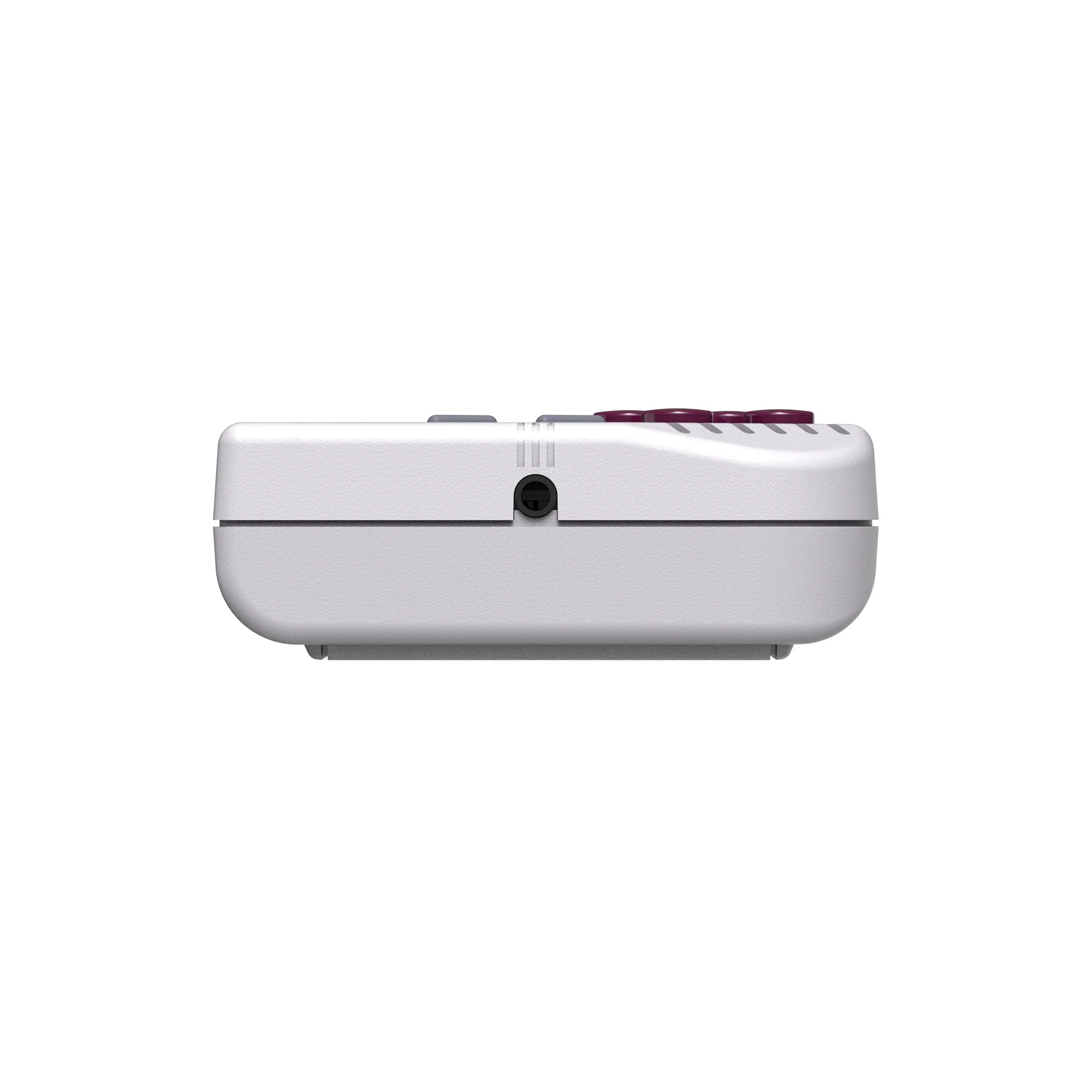

5. 3.5mm headphone jack
6. Speaker
7. Home²
8. Volume
9. 3 inch LCD screen

10. USB port for firmware upgrade
11. R shoulder button

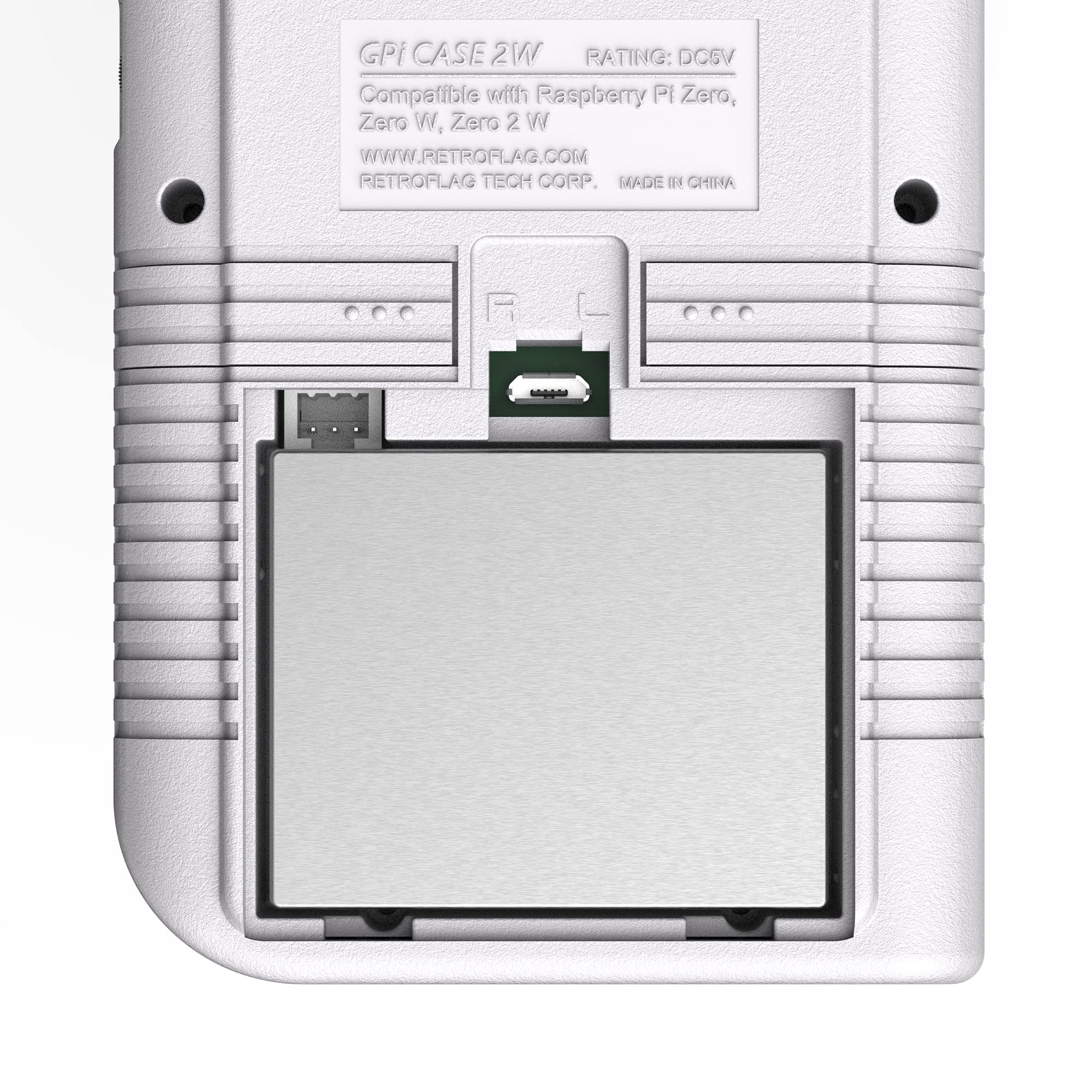

12. Battery pocket
13. L shoulder button

Tech Specs

Case dimensions	134.63 x 81.3 x 31.72mm
Screen Size	3.0" IPS LCD
Weight	230g
Battery	2800mAh Li-on battery
Compatibility	Raspberry Pi ZERO
	Raspberry Pi ZERO W
	Raspberry Pi ZERO 2W
Includes	RF GPi CASE 2W
	1 meter power cable

¹Turbo: Press and hold TURBO button, then press A / B / X / Y / L / R button.

Auto-Turbo: Press and hold TURBO button, then double press A / B / X / Y / L / R button; Pause / Restart Auto-Turbo function via press the button you set.

²Home/hotkey function, set in the system
