This high-torque servo delivers exceptional performance, accuracy, and durability. It's perfect for higher powered projects

The BEEFY metal gearing ensures that you don't need to worry about your teeth wearing out at the critical moment your LEGO mech suit build is making it's debut at Maker Faire.

We think this servo offers great value - in our opinion it performs as well as much more expensive servos in its class. The smooth and quiet motion is very welcome when it's running on your desk during testing!

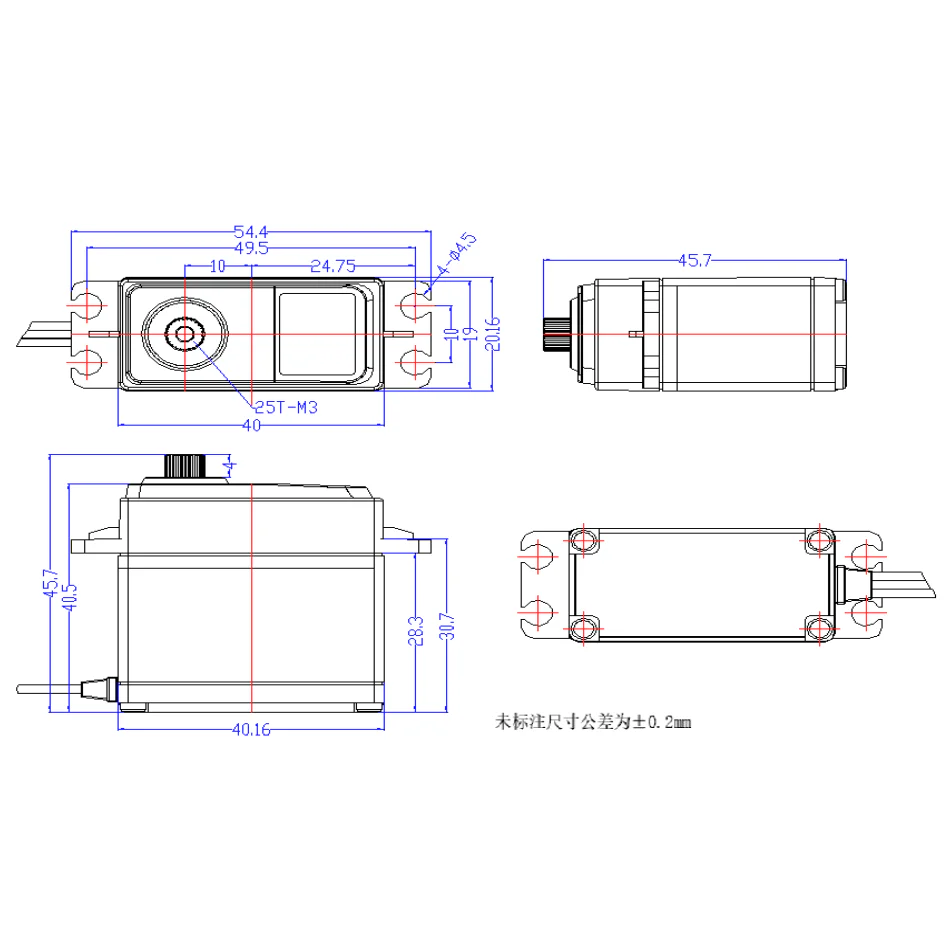

• Dimensions (approx): 40 x 20 x 40 mm

• Model: FT-7115-C001

• Weight (approx): 62g

• Operating voltage: 4 - 8.4V

• Idle current (at stopped): 6mA @ 7.4V

• Operating speed (no load): 0.161sec / 60° (58RPM) @ 7.4V

• Running current (no load): 140mA @ 7.4V

• Peak stall torque: 19.5kgcm @ 7.4V

• Rated torque: 6.5kgcm @ 7.4V

• Stall current: 3.5A @ 7.4V

• Control system: Pulse width modulation

• Pulse width range: 500~2500 μsec

• Running degree: 180°± 5°(at 500→2500μsec)
• Datasheet

Pinout

• Red: Power (4 - 8.4V)
• Orange: Signal (PWM  500~2500 μsec)
• Brown: Ground
