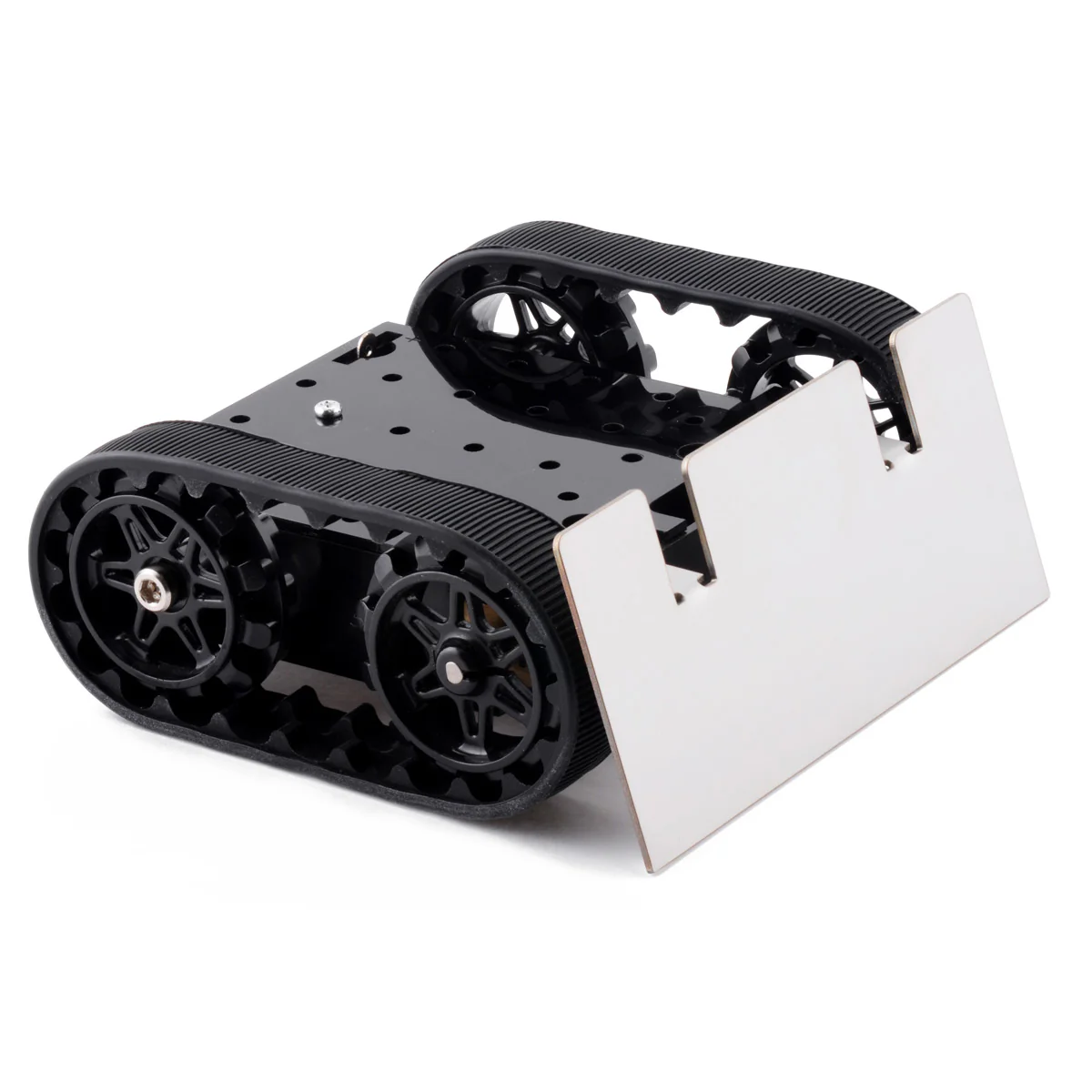

This 0.036″-thick stainless steel plate can be mounted to the front of the Zumo chassis to create a slanted, bulldozer-like blade for pushing around objects, such as other mini-sumo robots.

This basic sumo blade (sometimes also called a “scoop”) is intended for use with the Zumo chassis

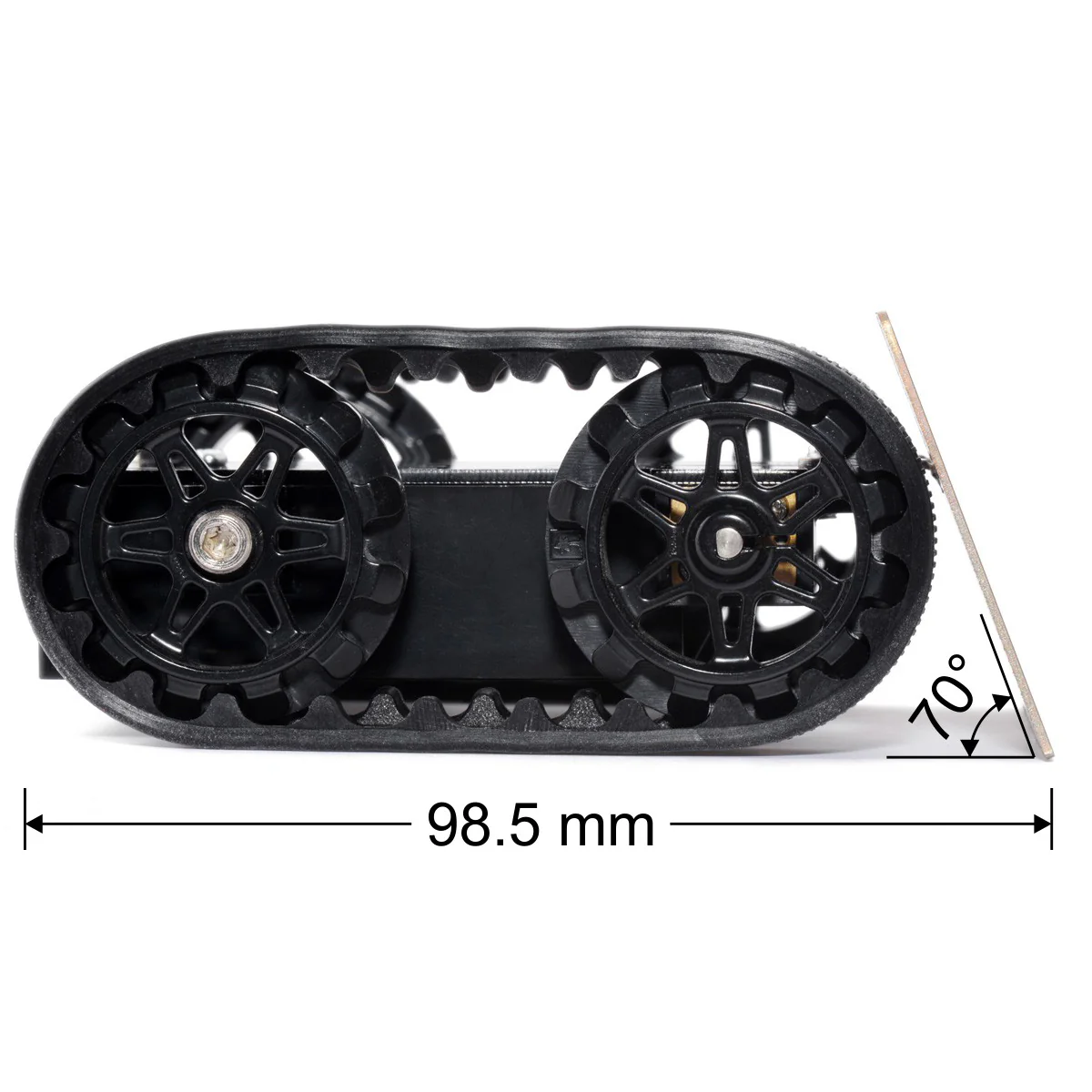

It is made of 0.036″-thick, laser-cut stainless steel, and it ships flat as shown in the product picture. The two tabs must be bent to an angle of approximately 70° before it can be mounted to the front of the Zumo chassis. We recommend using a pair of long-nose pliers to bend the tabs:

Warning: Do not try to bend the tabs after mounting the blade to the Zumo chassis as this could crack the chassis’ acrylic mounting plate or the mounting tabs themselves.

The chassis mounts to the two protruding front mounting holes of the Zumo chassis using the #2-56 screws included with the chassis kit.
