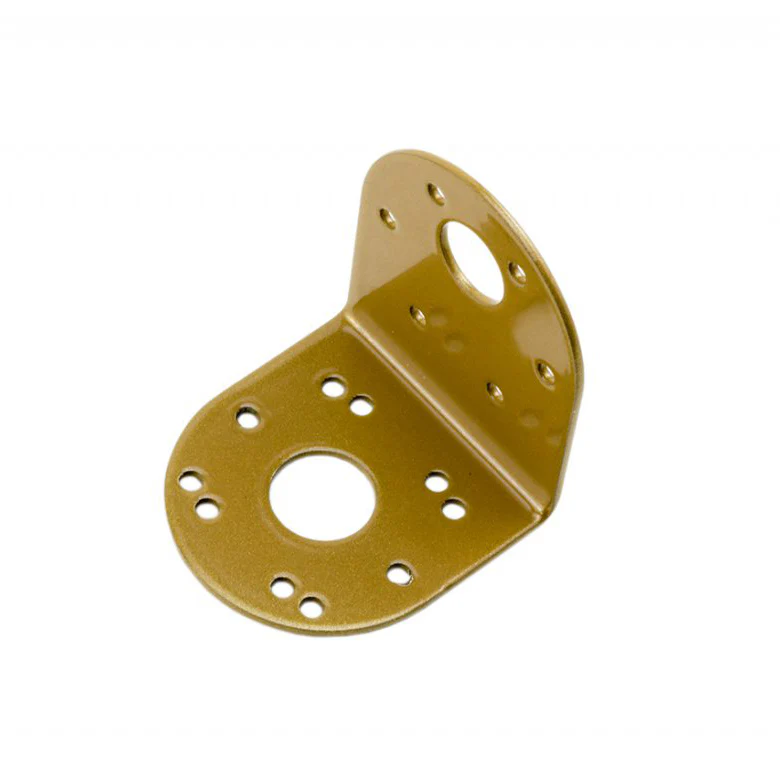

Quality powder coated steel motor mount, made specially for PiBorg!

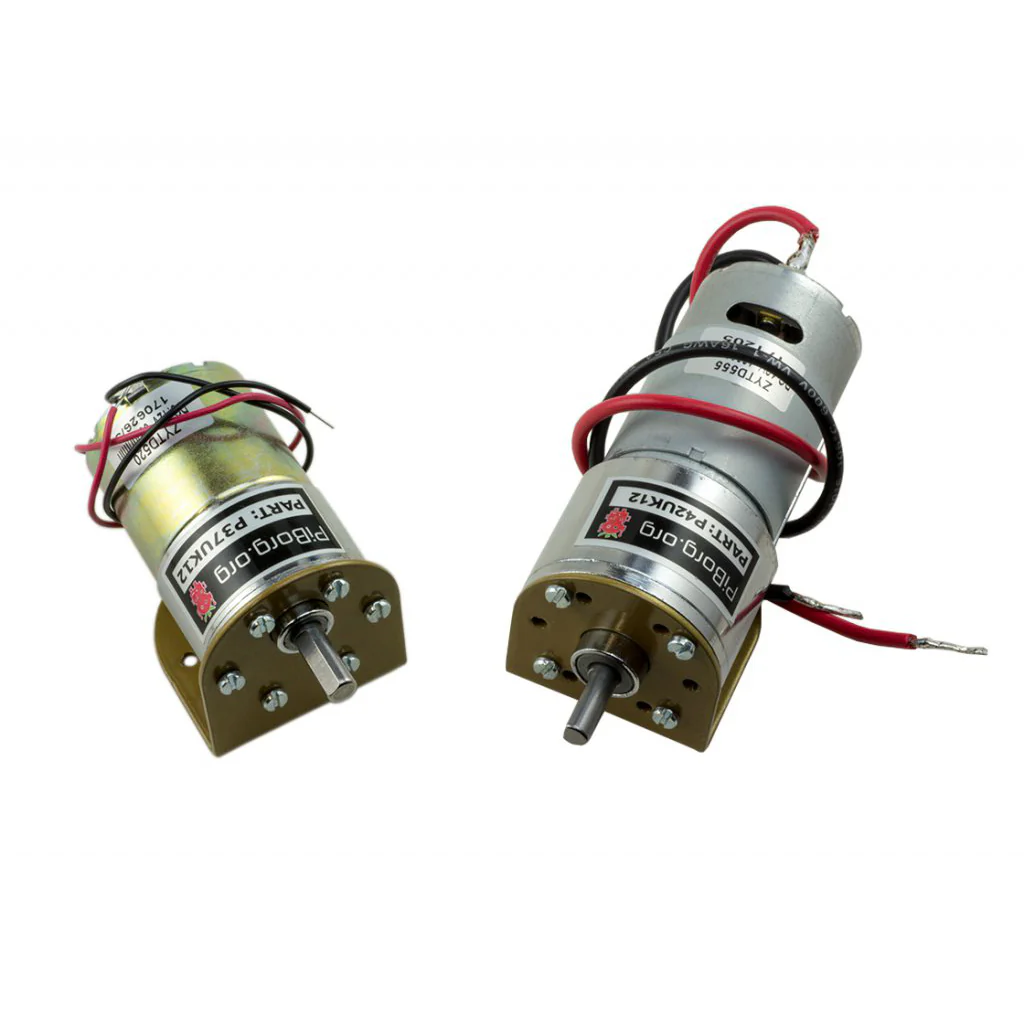

This large advanced motor bracket is designed to accept PiBorg 37mm and 42mm Motors.

If you're looking to mount small/medium sized motors, check out the "regular" motor bracket, that's designed to accept PiBorg 20mm, 25mm and 28mm motors.

Please note, motors are sold separately.

Click here for dimensions

Features:

• Large Universal Motor Bracket - Mount PiBorg Motors to Chassis!
• Powder Coated 1.5mm Mild Steel

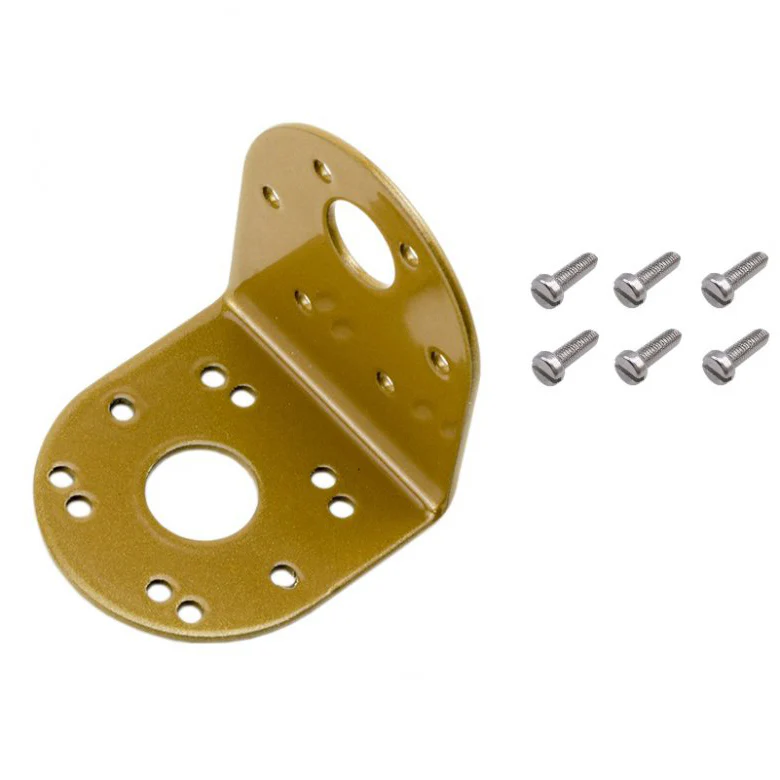

• Includes:
  • Motor Bracket
  • 6 x M3x6mm Bolts (For 37mm and 42mm Motors)
• Compatible with Motor Shafts up to 12mm Diameter
• Design to Mount Motors with:
  • 35mm Spaced M3 Mounting Holes
  • 31mm Spaced M3 Mounting Holes
• 6 x M3 Holes for Mounting to Chassis (Hardware NOT Included); 21mm Spacing
