Adafruit 20mm Coin Cell Breakout w/On-Off Switch (CR2032)

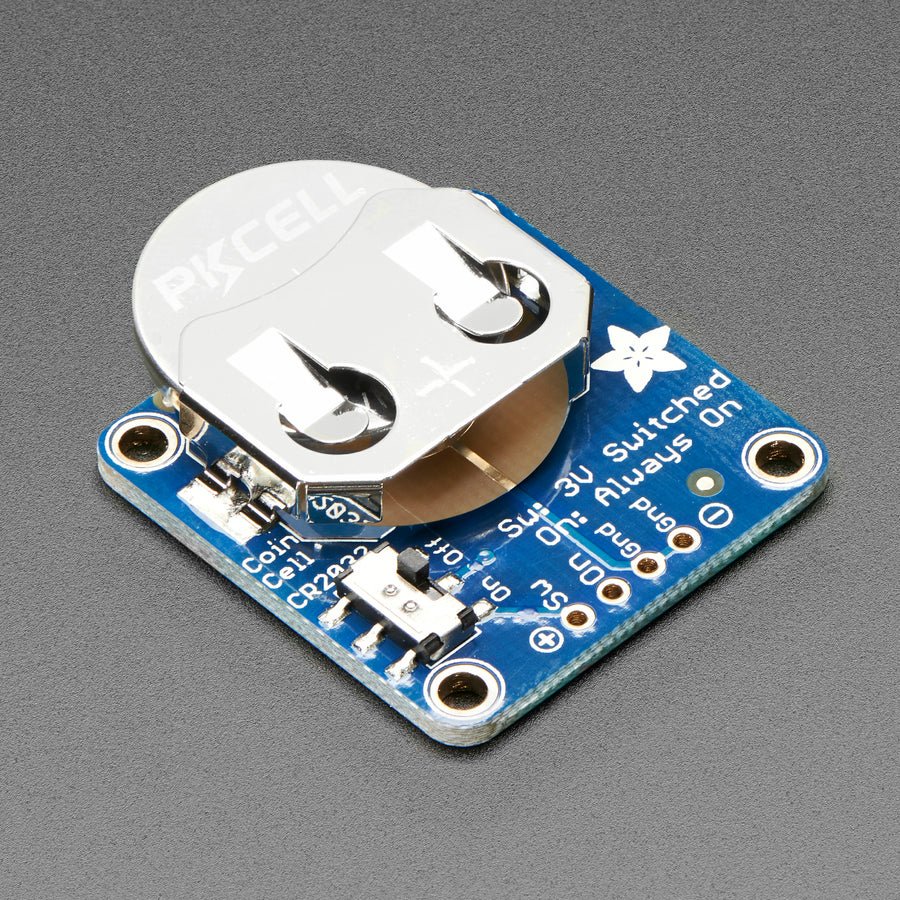

Simple but effective - this sewable breakout board has a CR2032 coin cell battery holder soldered on, an on/off switch and 0.1" pitch breakout pins for easy connecting.

Great for powering very low-current projects, or adding a battery backup circuit to a real-time-clock or similar. There's two ground pins, one 'switched' power pin, and one pin that is always on.

Comes with one fully assembled and tested breakout plus a small stick of 0.1" header so you can solder it on and plug into a breadboard. Coin cell battery is not included.

TECHNICAL DETAILS

  • EagleCAD PCB files on GitHub
  • Fritzing object in the Adafruit Fritzing library

Dimensions:

  • 29mm x 28mm x 1.6mm / 1.1" x 1.1" x 0.06"
  • Mounting hole distance: 22mm x 22mm / 0.9" x 0.9"
  • Weight: 3.5g
$1.43

Original: $4.08

-65%
Adafruit 20mm Coin Cell Breakout w/On-Off Switch (CR2032)—

$4.08

$1.43

Product Information

Shipping & Returns

Description

Simple but effective - this sewable breakout board has a CR2032 coin cell battery holder soldered on, an on/off switch and 0.1" pitch breakout pins for easy connecting.

Great for powering very low-current projects, or adding a battery backup circuit to a real-time-clock or similar. There's two ground pins, one 'switched' power pin, and one pin that is always on.

Comes with one fully assembled and tested breakout plus a small stick of 0.1" header so you can solder it on and plug into a breadboard. Coin cell battery is not included.

TECHNICAL DETAILS

  • EagleCAD PCB files on GitHub
  • Fritzing object in the Adafruit Fritzing library

Dimensions:

  • 29mm x 28mm x 1.6mm / 1.1" x 1.1" x 0.06"
  • Mounting hole distance: 22mm x 22mm / 0.9" x 0.9"
  • Weight: 3.5g
